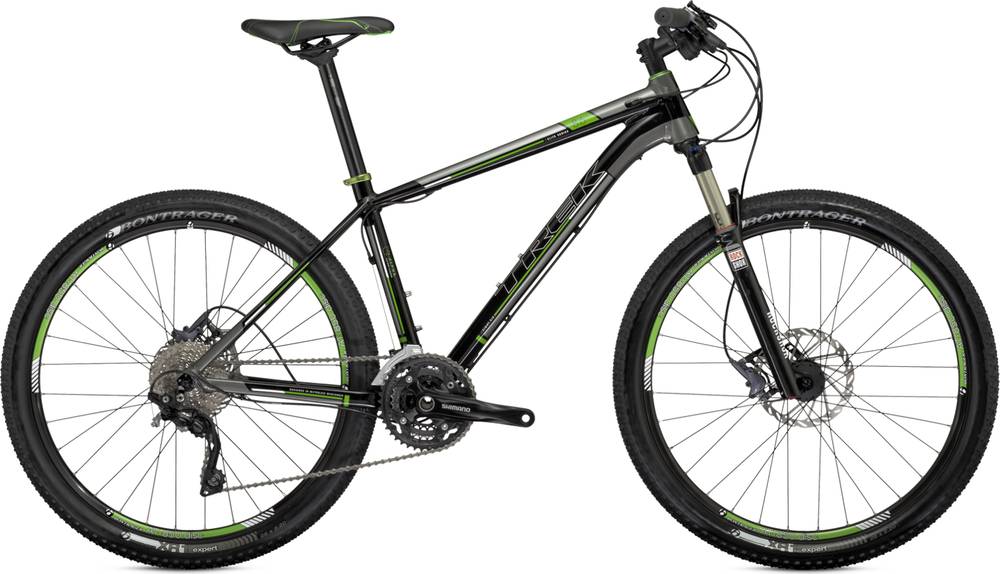

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminium w/E2 tapered head tube, press fit BB, internal derailleur cable routing, post mount disc brake
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG62 11-36, 10 speed
Crank
Shimano M610, 42/32/24
Wheels
Rims
Shimano M525 hubs w/Bontrager AT-850 32-hole double-walled rims
Tires
Bontrager XR1 Expert, aramid bead, 26x2.20"
Brakes
Brakes
Avid Elixir 3 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Low Riser, 31.8mm, 15mm rise
Headset
FSA IS-2, E2, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview
Elite 8.6 is part of the Trek Elite model. Trek launched 55 bikes of this model so far. Take a sneak peek at all Trek Elite bikes models from 2014, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Wheels size
As for the wheels, Trek Elite 8.6 2014, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Elite 8.6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Elite 8.6 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
