Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset XT, SLX -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum w/E2 tapered head tube, press-fit bottom bracket, internal front derailleur cable routing, post mount disc brake
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG62 11-36, 10 speed
Crank
Shimano Deore XT, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Shimano SLX hubs w/Bontrager AT-850 32-hole double-walled rims
Tires
Bontrager XR1 Expert, 26x2.20"
Brakes
Brakes
Shimano M596 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
FSA IS-2, E2, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 1
Seatpost
Bontrager SSR, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

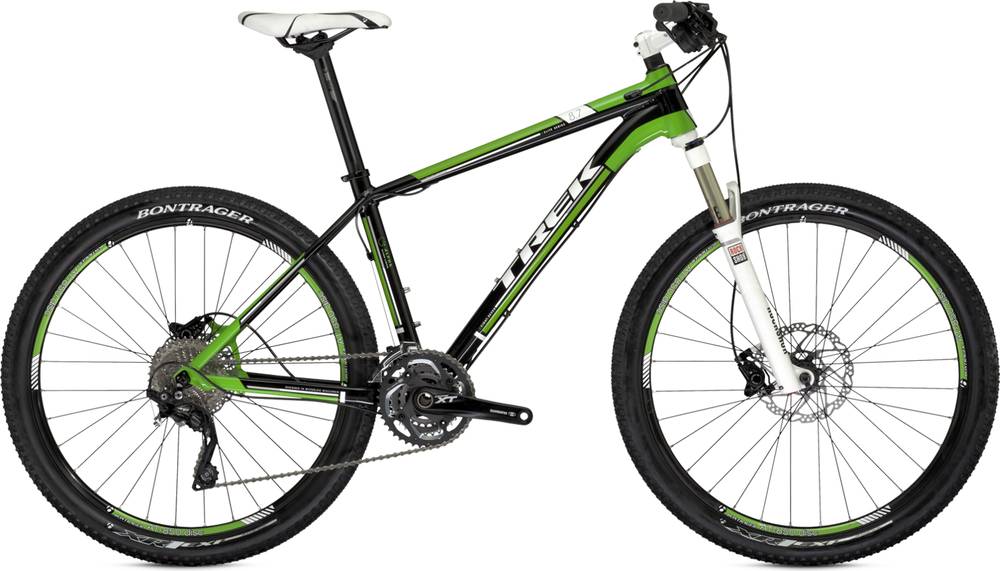

Elite 8.7 completes the Trek Elite model. Trek released 55 bikes variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Wheels size
As for the wheels, Trek Elite 8.7 2013, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Elite 8.7 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Elite 8.7 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
