Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon w/BB90 bottom bracket, "Drop In" headset bearings
Drivetrain
Rear Derailleur
Shimano Deore XT M780 Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore M591, 10 speed
Cassette
Shimano HG62-10 11-36, 10 speed
Crank
Shimano M552, 42/32/24
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Shimano SLX M665 alloy hubs; Bontrager AT-850 disc 32-hole rims
Tires
Bontrager XR1 Expert, 26x2.2"
Brakes
Brakes
Shimano Deore M596 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, alloy cartridge, 1-1/8"
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

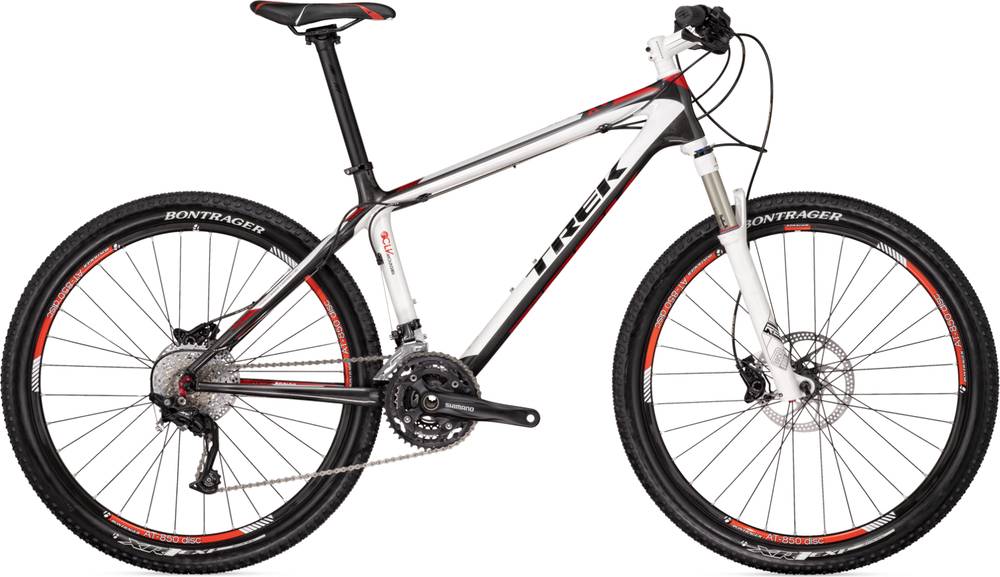

Elite 9.6 is part of the Trek Elite model. Trek released 55 bikes variations of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Elite 9.6 components
Wheels size
When leaving the production line, the Elite 9.6 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Elite 9.6 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
