Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset SLX -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCT White Carbon w/BB90 bottom bracket, "Drop In" headset bearings
Drivetrain
Rear Derailleur
Shimano SLX
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX
Cassette
SRAM PG970 11-32, 9 speed
Crank
Shimano SLX 44/32/22
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race Lite Disc wheel system, centerlock, tubeless ready
Tires
Bontrager Jones XR, 26x2.2/2.25"; 60 tpi, folding
Brakes
Brakes
Shimano SLX SL; 160mm rotors
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race OS flat bar, 620mm width
Headset
Mountain Integrated, 1 1/8" w/sealed bearings
Seat
Saddle
Bontrager Race w/hollow Cro-Moly, ti-finish rails
Seatpost
Bontrager Race Lite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

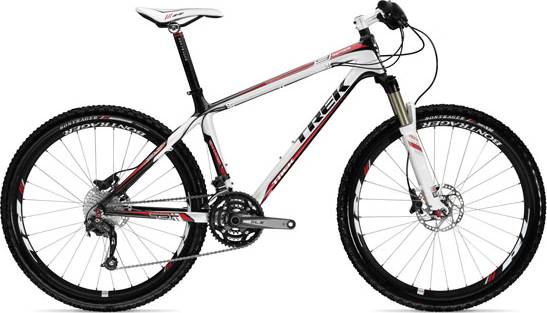

Elite 9.7 is a Trek Elite model. Trek released 55 bikes variations of this model so far. Take a sneak peek at all Trek Elite bikes models from 2009, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Elite 9.7 components
Wheels size
When it comes to wheels, the Elite 9.7 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Elite 9.7 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
