Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon w/BB90 bottom bracket, "Drop In" headset bearings
Drivetrain
Rear Derailleur
Shimano Deore XT M780 Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano SLX M660-10, 10 speed
Cassette
Shimano SLX HG81-10 11-36, 10 speed
Crank
Shimano Deore XT M780, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Pedals
n/a
Wheels
Rims
Shimano Deore XT M785 alloy hubs; Bontrager Mustang Disc 32-hole rims, Tubeless Ready
Tires
Bontrager XR1 Expert, 26x2.2"
Brakes
Brakes
Shimano SLX M666 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, alloy cartridge, 1-1/8"
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

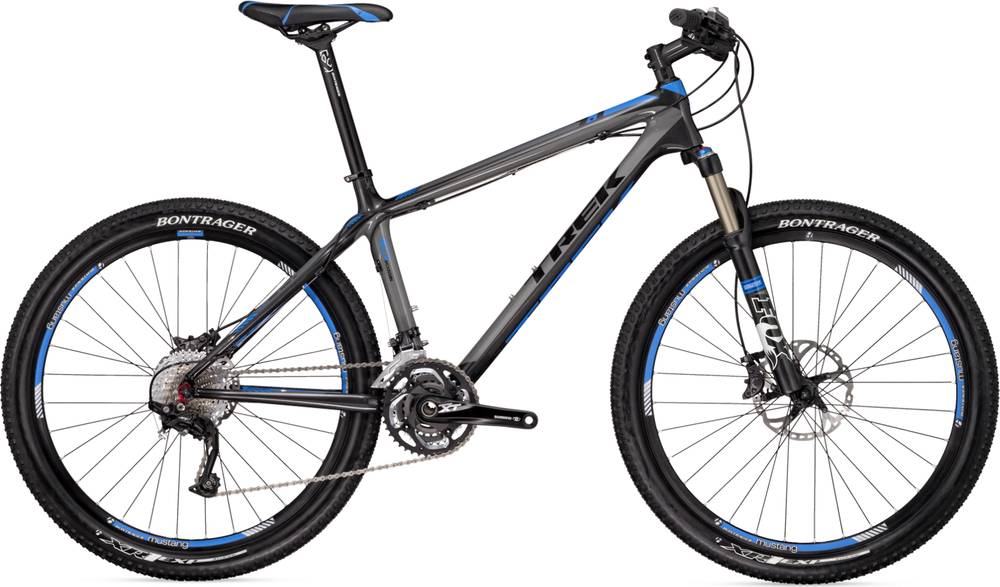

Elite 9.7 UK belongs to the Trek Elite model. Trek released 55 bikes variations of this model so far. Take a sneak peek at all Trek Elite bikes models from 2012, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Wheels size
The Elite 9.7 UK 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
