Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XT -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TCT Black Carbon w/BB90 bottom bracket, "Drop In" headset bearings
Drivetrain
Rear Derailleur
Shimano Deore XT "Shadow"
Front Derailleur
Shimano Deore XT
Shift Levers
Shimano Deore XT, 9 speed
Cassette
SRAM PG970 11-32, 9 speed
Crank
Shimano Deore XT 44/32/22
Bottom Bracket
BSA, 73mm, threaded
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite Disc wheel system, centerlock, tubeless ready
Tires
Bontrager Jones XR, 26x2.2/2.25"; 120 tpi, folding
Brakes
Brakes
Shimano Deore XT Ti, hydraulic disc, custom Ti version; 160mm rotors (Trek exclusive)
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite OS, carbon flat bar, 620mm width
Headset
Mountain Integrated, 1 1/8" w/sealed bearings
Seat
Saddle
Bontrager Race Lite
Seatpost
Bontrager Race X Lite ACC, carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

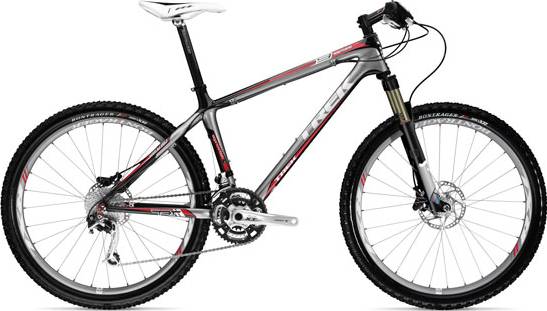

Elite 9.8 is a Trek Elite model. Trek released 55 bikes variations of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Elite 9.8 components
Wheels
As for the wheels, Trek Elite 9.8 2009, has a 26″ aluminum model. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
