Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XTR, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Red Carbon w/Net Molded head tube and BB90 bottom bracket, "No-Cut" mountain seat mast
Drivetrain
Rear Derailleur
Shimano XTR
Front Derailleur
Shimano XTR
Shift Levers
Shimano XTR
Cassette
Shimano XTR 11-32, 9 speed
Crank
FSA K-Force Light 2x9, custom narrow Q factor 42/29
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite Disc wheel system, centerlock w/scandium rims, tubeless ready
Tires
Bontrager Jones XR Team Edition, 26x2.0"; 127 tpi
Brakes
Brakes
Shimano XTR Ti, hydraulic disc, custom HP hose, Ti version; 160mm front rotor, 140mm rear rotor (Trek exclusive)
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race XXX Lite OS carbon flat bar, 580mm width
Headset
Mountain Integrated, 1 1/8" w/sealed bearings
Seat
Saddle
Bontrager Race X Lite
Seatpost
Bontrager XXX Lite mast system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

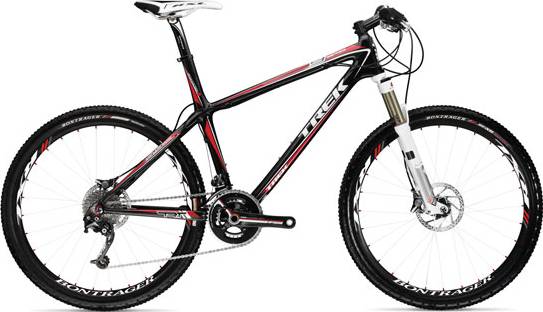

Elite 9.9 SSL belongs to the Trek Elite model. There are 55 bikes that carry this model name. Check out the entire range from 2009 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Elite 9.9 SSL components
Wheels size
The wheels on Elite 9.9 SSL are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
