Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon w/BB90 bottom bracket, Drop In headset bearings
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano SLX 11-36, 10 speed
Crank
Shimano Deore XT, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Shimano Deore XT hubs w/Bontrager Mustang Disc 32-hole Tubeless Ready rims
Tires
Bontrager XR1 Expert, 26x2.20"
Brakes
Brakes
Shimano SLX hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

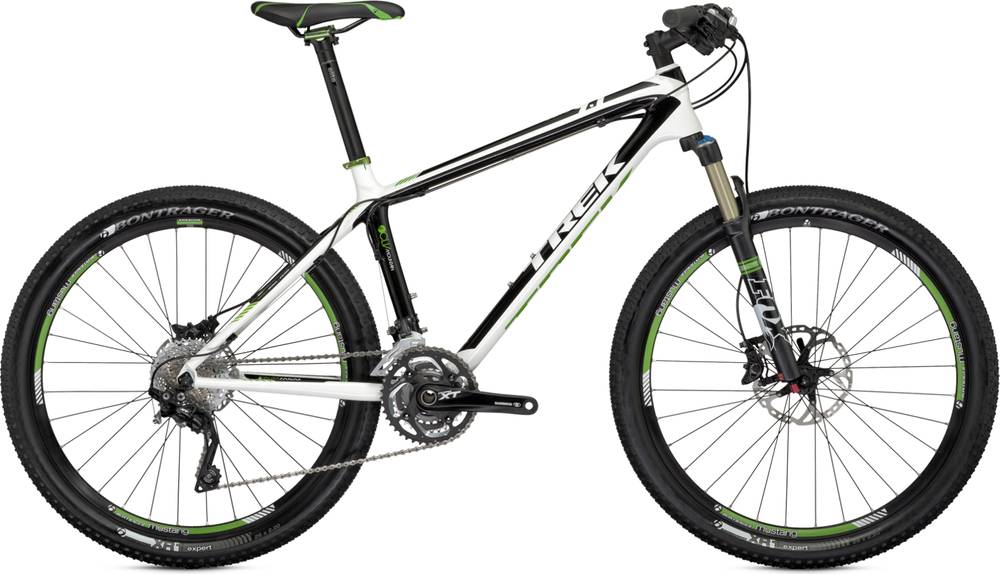

Elite Carbon 9.7 is a Trek Elite model. Trek released 55 bikes variations of this model so far. You can get a glimpse at all models from 2013, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Wheels size
The wheels on Elite Carbon 9.7 are the 26″ aluminum type. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Elite Carbon 9.7 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Elite Carbon 9.7 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
