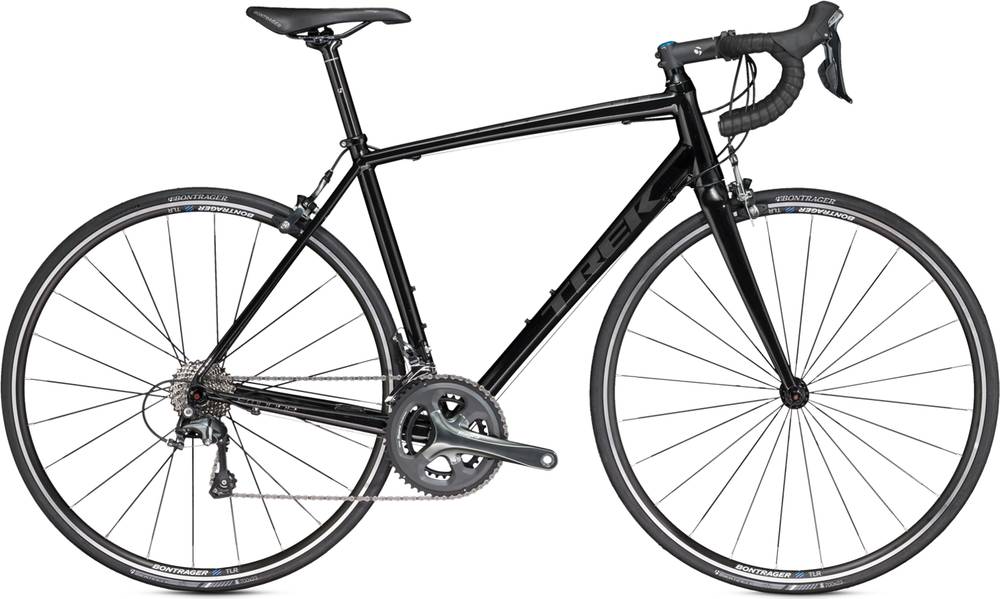

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, DuoTrap S compatible, E2 tapered head tube, BB86.5
Suspension Fork
Émonda carbon, E2
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra, 10 speed
Cassette
Shimano Tiagra, 12-28, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Bottom Bracket
BB86/BB92, 86.5mm, press-fit
Wheels
Rims
Bontrager alloy hubs, Bontrager Tubeless Ready rims
Tires
Bontrager R1 Hard-Case Lite, 700x23c
Brakes
Brakes
Shimano Tiagra
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/Blendr computer & light mounts
Handlebar
Bontrager Race, VR-C, 31.8mm
Headset
FSA Integrated, sealed cartridge bearings, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Paradigm 1
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Émonda ALR 4 belongs to the Trek Emonda model. Trek launched 251 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
Émonda ALR 4 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Émonda ALR 4 2016 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Émonda ALR 4 is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
