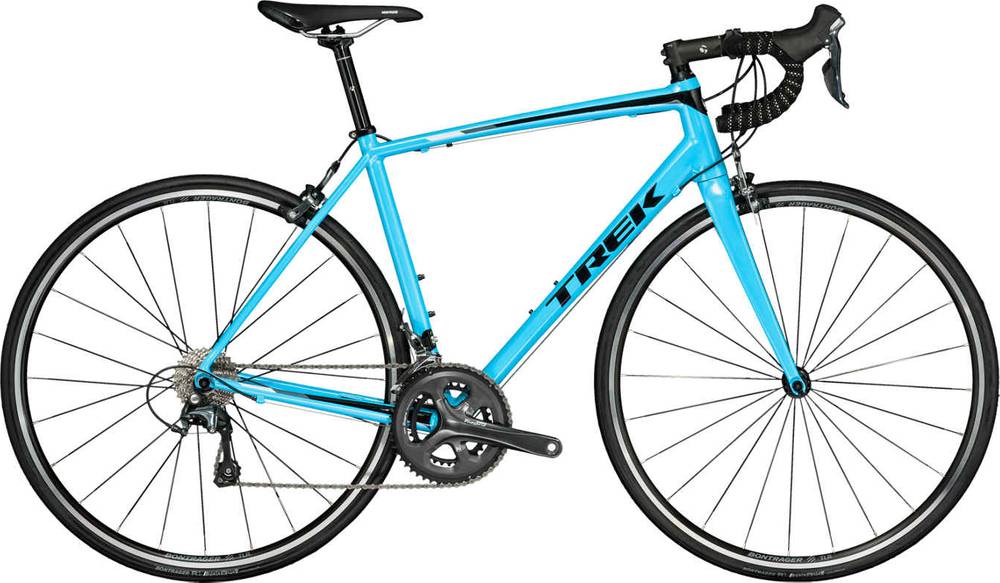

Trek Émonda ALR 4 2018
2018 Road
Estimate price |
1,149$
Weight | 8.89 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, E2 tapered head tube, DuoTrap S compatible, BB86.5
Suspension Fork
Émonda carbon, E2 steerer
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra, braze-on
Shift Levers
Shimano Tiagra, 10 speed
Cassette
Shimano Tiagra, 11-28, 10 speed
Crank
Shimano Tiagra, 50/34 (compact)
Bottom Bracket
Press Fit BB86.5
Chain
Shimano Tiagra
Pedals
Not included
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Bontrager Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x 25c
Brakes
Brakes
Shimano Tiagra
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Race VR-C, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp, chromoly rails
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.48 mm | 1.52 mm | 1.55 mm | 1.59 mm | 1.62 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm | 40 mm |
| Trail | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm | 55 mm |
| Stack | 540 mm | 552 mm | 560 mm | 582 mm | 601 mm | 620 mm | 639 mm | 659 mm |
| Reach | 379 mm | 384 mm | 386 mm | 392 mm | 396 mm | 400 mm | 403 mm | 406 mm |
| Top Tube Length | 526 mm | 539 mm | 548 mm | 565 mm | 578 mm | 591 mm | 603 mm | 615 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° | 72.3 ° |
| Seat Tube Length | 456 mm | 473 mm | 486 mm | 513 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° | 74 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm | 250 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 416 mm | 416 mm | 417 mm | 418 mm |
| Wheelbase | 979 mm | 982 mm | 986 mm | 988 mm | 997 mm | 1006 mm | 1015 mm | 1023 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 712 mm | 734 mm | 747 mm | 772 mm | 791 mm | 809 mm | 827 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Émonda ALR 4 is part of the Trek Emonda model. 251 bikes variations carry this model name so far. You can easily view all of the Trek Emonda bikes models from 2018, here.
Model range prices
Trek Émonda 650 2018 is the cheapest bike model and costs 1049$. Trek Émonda SLR 9 2018 is the most expensive one and costs 11499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Émonda ALR 4 price was 1149$. Comparing this to the average Race bike price, we see that the price is 191.56% smaller.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Émonda ALR 4 weighs 8.89 kg (19.6 lbs) and is much heavier than the average. In short, the average Race bike weight is 30.35% lower than this one.
Overview of components
Fork material
Émonda ALR 4 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Émonda ALR 4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Émonda ALR 4 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
