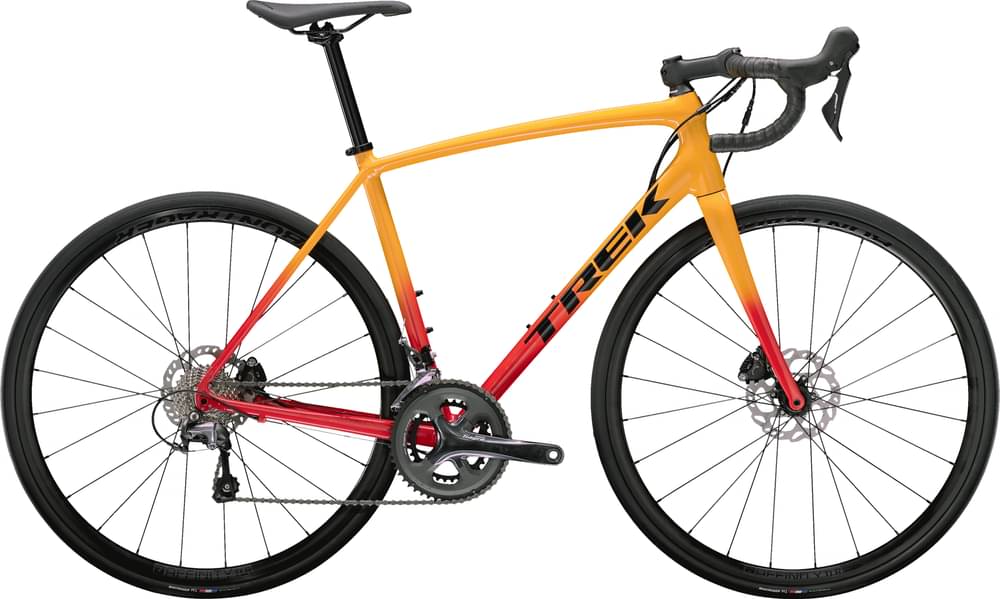

Trek Émonda ALR 4 2022
2022 Road
Estimate price |
2,293$
Weight | 9.33 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminium, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, direct-mount rim brakes, 130x5 mm QR, 86.5 mm PressFit bottom bracket
Drivetrain
Rear Derailleur
Shimano Tiagra 4700, long cage, 34T max cog
Front Derailleur
Shimano Tiagra 4700, braze-on
Cassette
Shimano Tiagra HG500, 12-28, 10-speed
Crank
Size: 47, 50, 52, Shimano Tiagra 4700, 50/34, 170 mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5 mm length; Size: 58, 60, 62, 64, Shimano Tiagra 4700, 50/34, 175 mm length
Bottom Bracket
Shimano BB71, 86.5 mm, PressFit
Chain
Shimano Tiagra HG54, 10-speed
Wheels
Front Hub
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rims
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Brakes
Brakes
Shimano Tiagra hydraulic disc
Cockpit
Stem
Size: 47, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: 50, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: 52, 54, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; Size: 56, 58, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length; Size: 60, 62, Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Handlebar
Size: 47, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width; Size: 50, 52, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width; Size: 58, 60, 62, 64, Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Seat
Saddle
Bontrager Montrose Comp, steel rails, 138 mm width
Seatpost
Size: 47, Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length; Size: 50, 52, 54, 56, 58, 60, 62, 64, Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.6 mm | 1.64 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm | 614 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm | 40 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm | 55 mm |
| Stack | 515 mm | 528 mm | 540 mm | 548 mm | 570 mm | 589 mm | 608 mm | 627 mm | 647 mm |
| Reach | 362 mm | 367 mm | 372 mm | 374 mm | 380 mm | 384 mm | 388 mm | 391 mm | 394 mm |
| Top Tube Length | 506 mm | 514 mm | 527 mm | 536 mm | 553 mm | 566 mm | 579 mm | 591 mm | 603 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° | 72.3 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm | 613 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° | 74 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm | 250 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 404 mm | 404 mm | 405 mm | 406 mm |
| Wheelbase | 967 mm | 967 mm | 970 mm | 974 mm | 976 mm | 985 mm | 994 mm | 1003 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 700 | 722 mm | 735 mm | 760 mm | 779 mm | 797 mm | 815 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Émonda ALR 4 belongs to the Trek Emonda model. Trek launched 251 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Trek Émonda ALR 4 2022 is the cheapest bike model and costs 2123$. Trek Émonda SLR 9 eTap 2022 is the most expensive one and costs 12499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Trek released this model in 2022, its price was 2123$. Doing a quick comparison, we notice that Émonda ALR 4 price is 57.8% lower than the average cost of a Race bike.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Émonda ALR 4 weighs 9.33 kg (20.57 lbs) and is much heavier than the average. In other words, this model is 36.8% heavier than the average Race bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Émonda ALR 4 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Émonda ALR 4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Émonda ALR 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
