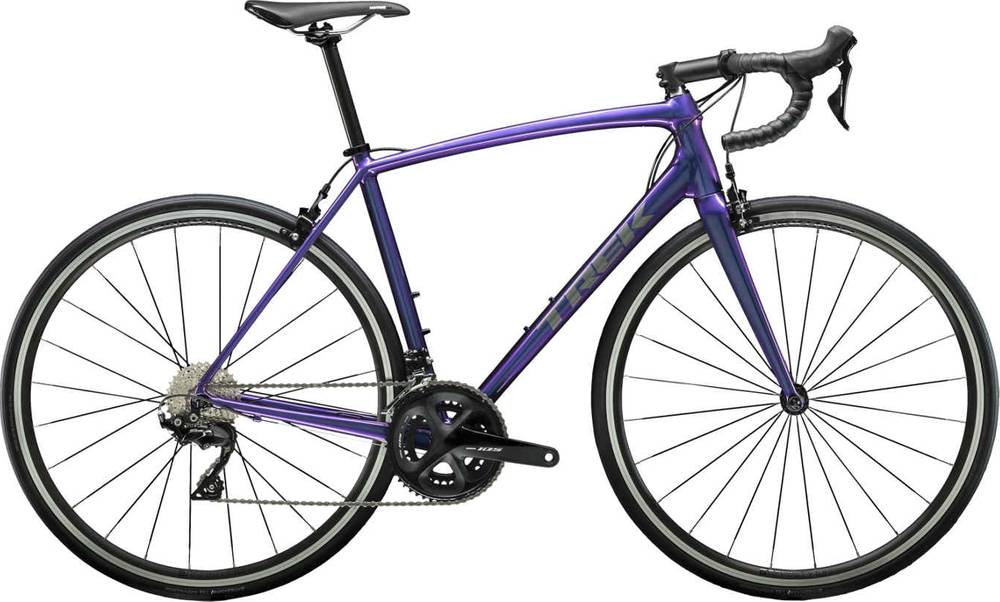

Trek Émonda ALR 5 2019
2019 Road
Estimate price |
1,659$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, tapered head tube, BB86.5, direct mount rim brakes, internal cable routing, DuoTrap S compatible
Suspension Fork
Émonda carbon, tapered steerer, direct mount rim brakes
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano 105, 11-28, 11 speed
Crank
Shimano 105, 50/34 (compact)
Bottom Bracket
Press Fit BB86.5
Chain
Shimano 105
Pedals
Not included
Wheels
Front Hub
Alloy
Rear Hub
Alloy
Rims
Bontrager Affinity Tubeless Ready
Tires
Bontrager R1 Hard-Case Lite, 700x 25c
Brakes
Brakes
Shimano 105 direct mount
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Comp VR-C, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp, chromoly rails
Seatpost
Bontrager alloy, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.48 mm | 1.52 mm | 1.55 mm | 1.58 mm | 1.62 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm | 614 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm | 40 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm | 55 mm |
| Stack | 529 mm | 542 mm | 554 mm | 562 mm | 584 mm | 603 mm | 622 mm | 641 mm | 661 mm |
| Reach | 376 mm | 381 mm | 386 mm | 388 mm | 394 mm | 398 mm | 402 mm | 405 mm | 408 mm |
| Top Tube Length | 520 mm | 528 mm | 541 mm | 550 mm | 567 mm | 580 mm | 593 mm | 605 mm | 617 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° | 72.3 ° |
| Seat Tube Length | 424 mm | 456 mm | 473 mm | 486 mm | 513 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° | 74 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm | 250 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm | 420 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm | 1025 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 705 mm | 714 mm | 736 mm | 749 mm | 774 mm | 793 mm | 811 mm | 829 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Émonda ALR 5 completes the Trek Emonda model. 251 bikes variations carry this model name so far. You can easily view all of the Trek Emonda bikes models from 2019, here.
Model range prices
Trek Émonda ALR 4 2019 is the most affordable bike of this model and has a price of 1439$. On the other hand, Trek Émonda SLR 9 Disc Women’s 2019, is the most expensive and costs 11799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Émonda ALR 5 price was 1659$. Comparing the average cost of a Race bike to this one, you will see that Émonda ALR 5 price is 101.93% smaller.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Émonda ALR 5 it’s weighing 8.8 kg (19.4 lbs). At this weight, is much heavier than average. In other words, this model is 29.03% heavier than the average Race bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Émonda ALR 5 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
