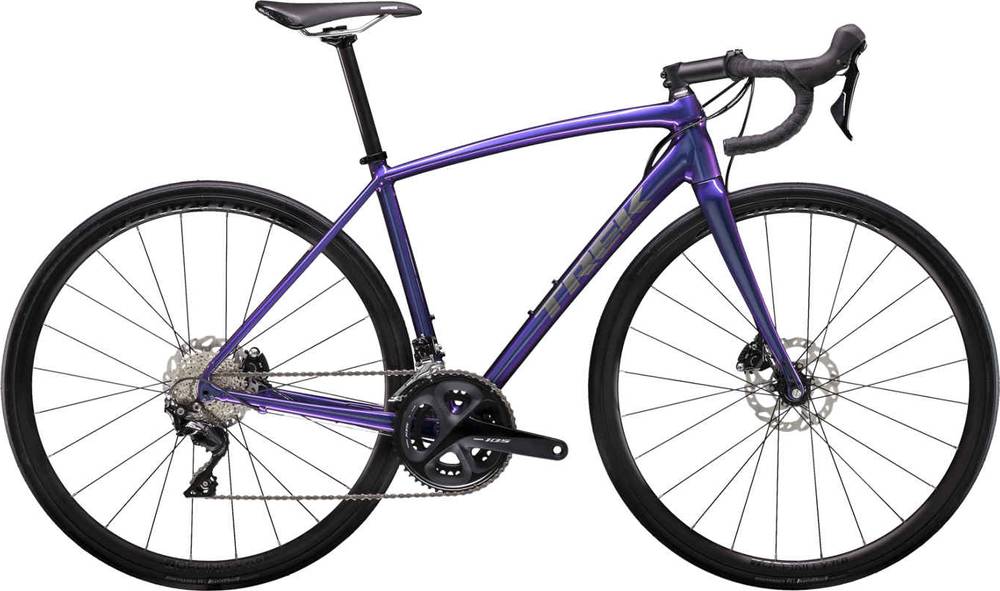

Trek Émonda ALR 5 Disc 2019
2019 Road
Estimate price |
1,999$
Weight | 8.98 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 300 Series Alpha Aluminum, Invisible Weld Technology, tapered head tube, BB86.5, flat mount disc brakes, 12mm thru-axle, internal cable routing, DuoTrap S compatible
Suspension Fork
Émonda carbon disc, carbon tapered steerer, flat mount disc brakes, 12mm thru-axle
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105, 11 speed
Cassette
Shimano 105, 11-28, 11 speed
Crank
Shimano 105, 50/34 (compact)
Bottom Bracket
Press Fit BB86.5
Chain
Shimano 105
Pedals
Not included
Wheels
Front Hub
Bontrager alloy sealed bearing, 12mm thru-axle
Rear Hub
Bontrager alloy sealed bearing, 12mm thru-axle
Rims
Bontrager Affinity Tubeless Ready Disc
Tires
Bontrager R1 Hard-Case Lite, 700x 25c
Brakes
Brakes
Shimano 105 flat mount hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, w/computer & light mounts
Handlebar
Bontrager Comp VR-C, 31.8mm
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Comp, chromoly rails
Seatpost
Bontrager carbon, 2-bolt head, 27.2mm, 8mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.48 mm | 1.52 mm | 1.55 mm | 1.58 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 529 mm | 542 mm | 554 mm | 562 mm | 584 mm | 603 mm | 622 mm | 641 mm |
| Reach | 376 mm | 381 mm | 386 mm | 388 mm | 394 mm | 398 mm | 402 mm | 405 mm |
| Top Tube Length | 520 mm | 528 mm | 541 mm | 550 mm | 567 mm | 580 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 456 mm | 473 mm | 486 mm | 513 mm | 533 mm | 553 mm | 573 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 705 mm | 714 mm | 736 mm | 749 mm | 774 mm | 793 mm | 811 mm | 829 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda ALR 5 Disc is a Trek Emonda model. 251 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek Émonda ALR 4 2019 is the cheapest bike model and costs 1439$. Trek Émonda SLR 9 Disc Women’s 2019 is the most expensive one and costs 11799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2019 and its price was 1999$. Doing a quick comparison, we notice that Émonda ALR 5 Disc price is 67.58% lower than the average cost of a Race bike.
Average weight for Race bikes
The average weight for Race bikes is 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Émonda ALR 5 Disc weighs 8.98 kg (19.8 lbs) and is much heavier than the average. In short, the average Race bike weight is 31.67% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
Émonda ALR 5 Disc has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the Émonda ALR 5 Disc bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Émonda ALR 5 Disc has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 151 cm – 195 cm (4.95 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
