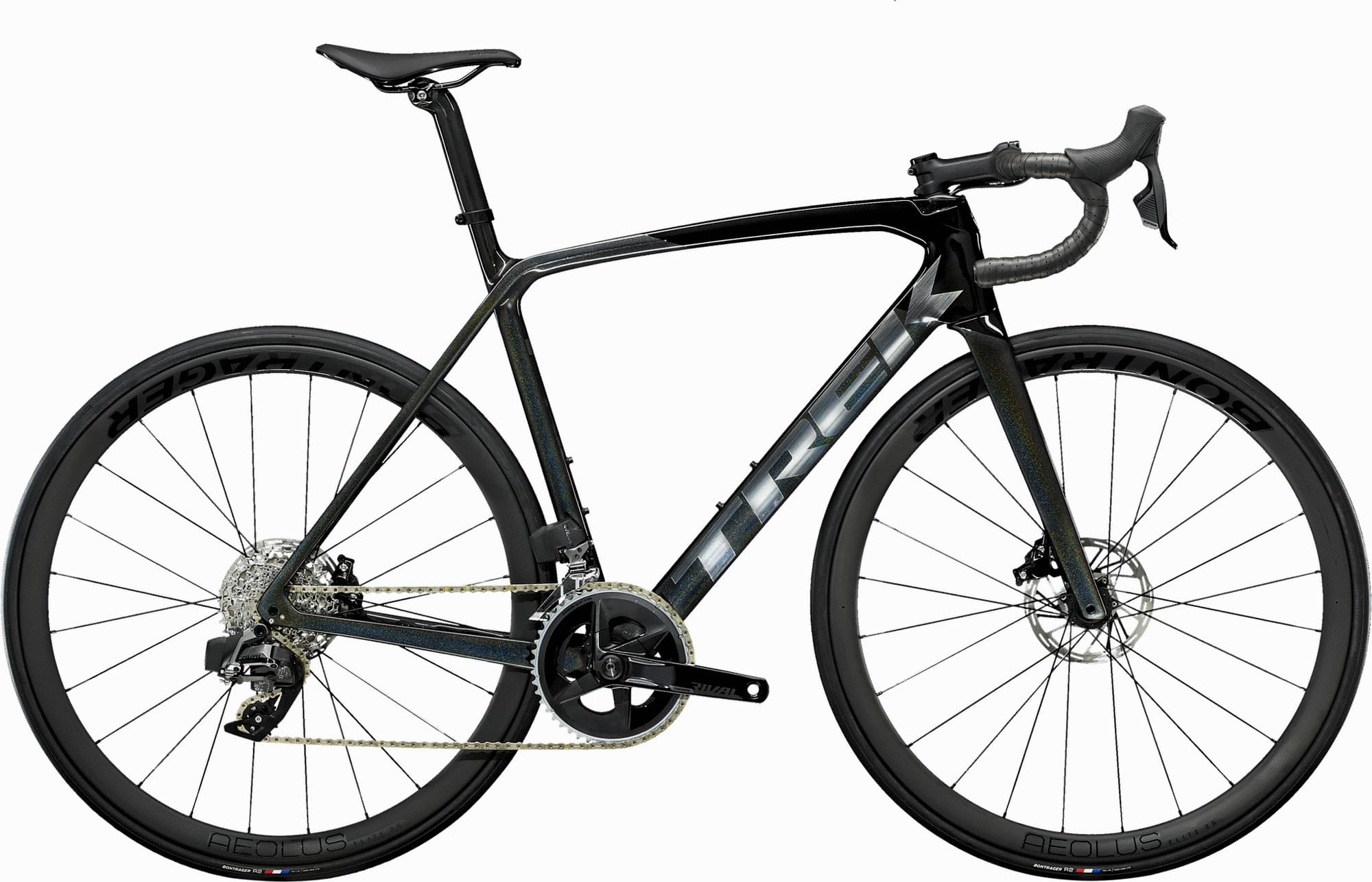

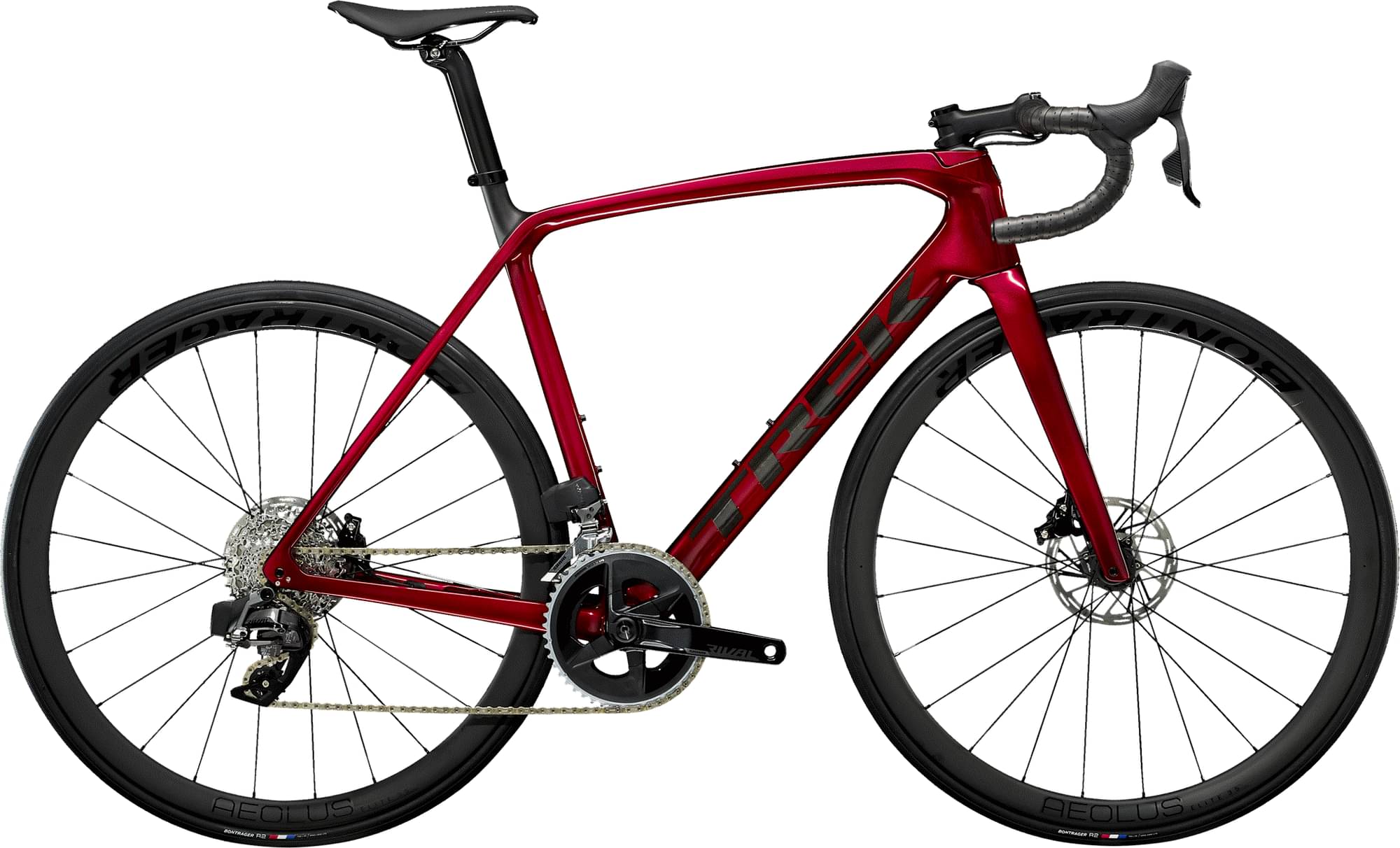

Trek Émonda SL 6 AXS 2023
2023 Road
Estimate price |
5,299$
Weight | 8.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on
Shift Levers
SRAM Rival eTap AXS, 12 speed
Cassette
SRAM XG-1250, 10-36, 12 speed
Crank
Size: 47, SRAM Rival AXS w/ power meter, 48/35, DUB, 165mm length; Size: 50, 52, SRAM Rival AXS w/ power meter, 48/35, DUB, 170mm length; Size: 54, 56, 58, SRAM Rival AXS w/ power meter, 48/35, DUB, 172.5mm length; Size: 60, 62, SRAM Rival AXS w/ power meter, 48/35, DUB, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM Rival, 12 speed
Wheels
Rims
Front: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru-axle
Tires
Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c
Brakes
Brakes
SRAM Rival hydraulic disc, flat mount
Cockpit
Stem
Size: 47, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 58, 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 47, 50, Bontrager Elite Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width; Size: 52, Bontrager Elite Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 54, 56, 58, Bontrager Elite Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 60, 62, Bontrager Elite Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Seat
Saddle
Bontrager Aeolus Comp, steel rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 56, 58, 60, 62, Bontrager carbon seatmast cap, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda SL 6 AXS is a Trek Emonda model. Trek launched 251 bikes of this model so far. You can easily view all of the Trek Emonda bikes models from 2023, here.
Model range prices
Trek Émonda ALR 5 2023 is the most affordable bike of this model and has a price of 2299$. On the other hand, Trek Émonda SLR 9 eTap 2023, is the most expensive and costs 12999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 5299$. Doing a quick comparison, we notice that Émonda SL 6 AXS price is 58.18% higher than the average cost of a Race bike.
Race bikes average weight
Race bikes have an average weight of 6.72 kg (14.82 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.69 kg (19.16 lbs), Trek bike is much heavier than average. To sum up, it’s 29.32% heavier than the average weight of Race bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Émonda SL 6 AXS components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Émonda SL 6 AXS model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Émonda SL 6 AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Émonda SL 6 AXS comes in 8 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
