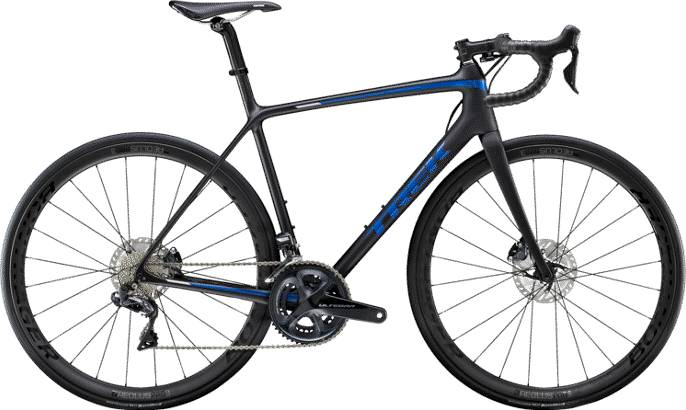

Trek Émonda SL 7 Disc 2020
2020 Road
Estimate price |
5,099$
Weight | 7.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
64cm
194cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8050 Di2, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8050 Di2, braze-on
Shift Levers
Shimano Ultegra Di2, R8070, 11-speed
Cassette
Shimano Ultegra R8000, 11-28, 11 speed
Crank
Size: 50, 52, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 50/34 (compact), 175mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Aeolus Pro 3, OCLV Carbon, Tubeless Ready, 19.5mm rim width, 35mm rim depth, 100x12mm thru axle
Tires
Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c
Brakes
Brakes
Shimano Ultegra hydraulic disc, flat mount
Disk Rotors
Shimano RT800, 160mm, centerlock
Cockpit
Stem
Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length
Handlebar
Size: 50, Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width; Size: 52, Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 54, 56, Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Comp, steel rails, 138mm width
Seatpost
Size: 50, 52, 54, 56, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon seatmast cap, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | 64cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.6 mm | 1.64 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm | 614 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm | 40 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm | 55 mm |
| Stack | 515 mm | 528 mm | 540 mm | 548 mm | 570 mm | 589 mm | 608 mm | 627 mm | 647 mm |
| Reach | 362 mm | 367 mm | 372 mm | 374 mm | 380 mm | 384 mm | 388 mm | 391 mm | 394 mm |
| Top Tube Length | 506 mm | 514 mm | 527 mm | 536 mm | 553 mm | 566 mm | 579 mm | 591 mm | 603 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° | 72.3 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm | 613 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° | 74 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm | 250 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 404 mm | 404 mm | 405 mm | 406 mm |
| Wheelbase | 967 mm | 967 mm | 970 mm | 974 mm | 976 mm | 985 mm | 994 mm | 1003 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 700 | 722 mm | 735 mm | 760 mm | 779 mm | 797 mm | 815 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm | 194 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm | 200 cm |
About this model
Émonda SL 7 Disc is a Trek Emonda model. Trek launched 251 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Émonda ALR 4 Disc 2020 is the most economical model, with a starting price of 1599$. Trek Émonda SLR 9 Disc 2020 on the other hand costs 11799$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5099$. In conclusion, this bike price is 52.21% higher than the price of the average Race bike.
Average weight for Race bikes
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Trek Émonda SL 7 Disc it’s weighing 7.6 kg (16.76 lbs). At this weight, is considerably heavier than average. In short, the average Race bike weight is 11.44% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Émonda SL 7 Disc components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Trek Émonda SL 7 Disc 2020, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Émonda SL 7 Disc is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Émonda SL 7 Disc comes in 9 sizes, that range from 152 cm – 200 cm (4.99 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
