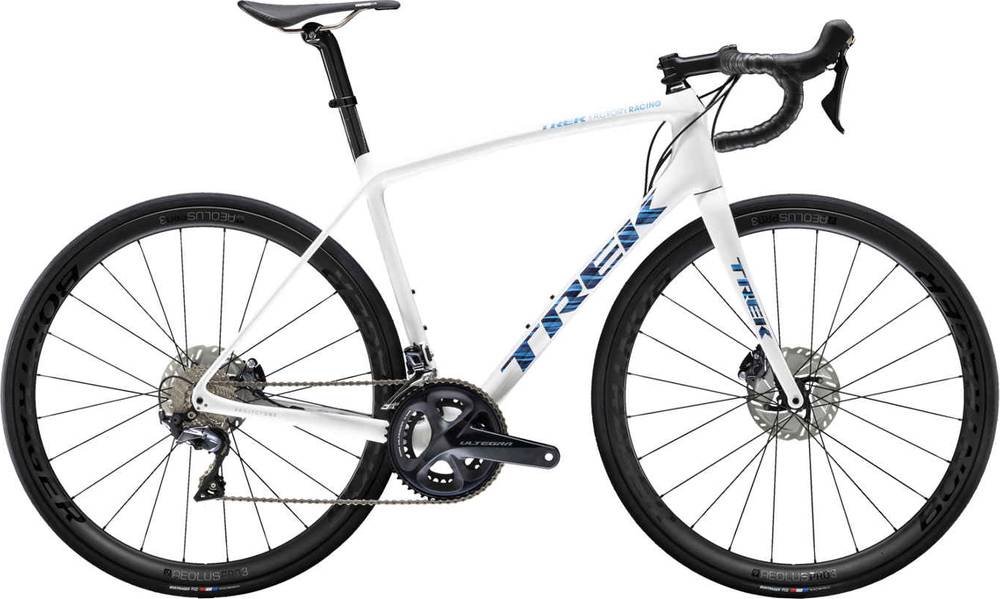

Trek Émonda SLR 6 Disc 2020
2020 Road
Estimate price |
6,299$
Weight | 7.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Émonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
Shimano Ultegra R8000, short cage, 30T max cog
Front Derailleur
Shimano Ultegra R8000, braze-on
Shift Levers
Shimano Ultegra R8020, 11-speed
Cassette
Shimano Ultegra R8000, 11-28, 11 speed
Crank
Size: 50, Shimano Ultegra R8000, 50/34 (compact), 170mm length; Size: 58, 60, 62, Shimano Ultegra R8000, 50/34 (compact), 175mm length; Size: 54, 56, Shimano Ultegra R8000, 50/34 (compact), 172.5mm length
Bottom Bracket
Trek BB90
Chain
Shimano Ultegra HG701, 11-speed
Wheels
Rims
Bontrager Aeolus Pro 3 Disc, Tubeless Ready, 100x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
Brakes
Brakes
Shimano Ultegra hydraulic disc, flat mount
Disk Rotors
Shimano RT800, 160mm, centerlock
Cockpit
Stem
Size: 50, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 56, 58, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 60, 62, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length; Size: 54, Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Size: 50, Bontrager XXX VR-C, OCLV Carbon, 31.8mm, 100mm reach, 124mm drop, 40cm width; Size: 58, 60, 62, Bontrager XXX VR-C, OCLV Carbon, 31.8mm, 100mm reach, 124mm drop, 44cm width; Size: 54, 56, Bontrager XXX VR-C, OCLV Carbon, 31.8mm, 100mm reach, 124mm drop, 42cm width
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Elite, titanium rails, 138mm width
Seatpost
Size: 50, 54, 56, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 58, 60, 62, Bontrager carbon seatmast cap, 20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 515 mm | 528 mm | 540 mm | 548 mm | 570 mm | 589 mm | 608 mm | 627 mm |
| Reach | 362 mm | 367 mm | 372 mm | 374 mm | 380 mm | 384 mm | 388 mm | 391 mm |
| Top Tube Length | 506 mm | 514 mm | 527 mm | 536 mm | 553 mm | 566 mm | 579 mm | 591 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 404 mm | 404 mm | 405 mm |
| Wheelbase | 967 mm | 967 mm | 970 mm | 974 mm | 976 mm | 985 mm | 994 mm | 1003 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 700 | 722 mm | 735 mm | 760 mm | 779 mm | 797 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda SLR 6 Disc belongs to the Trek Emonda model. 251 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Émonda ALR 4 Disc 2020 is the most economical model, with a starting price of 1599$. Trek Émonda SLR 9 Disc 2020 on the other hand costs 11799$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 6299$. Doing a quick comparison, we notice that Émonda SLR 6 Disc price is 88.03% higher than the average cost of a Race bike.
Average weight for Race bikes
Race bikes weigh an average of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Émonda SLR 6 Disc weighs 7.23 kg (15.94 lbs) and is a bit heavier than the average. To sum up, it’s 6.01% heavier than the average weight of Race bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Émonda SLR 6 Disc components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Émonda SLR 6 Disc bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Émonda SLR 6 Disc comes in 8 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
