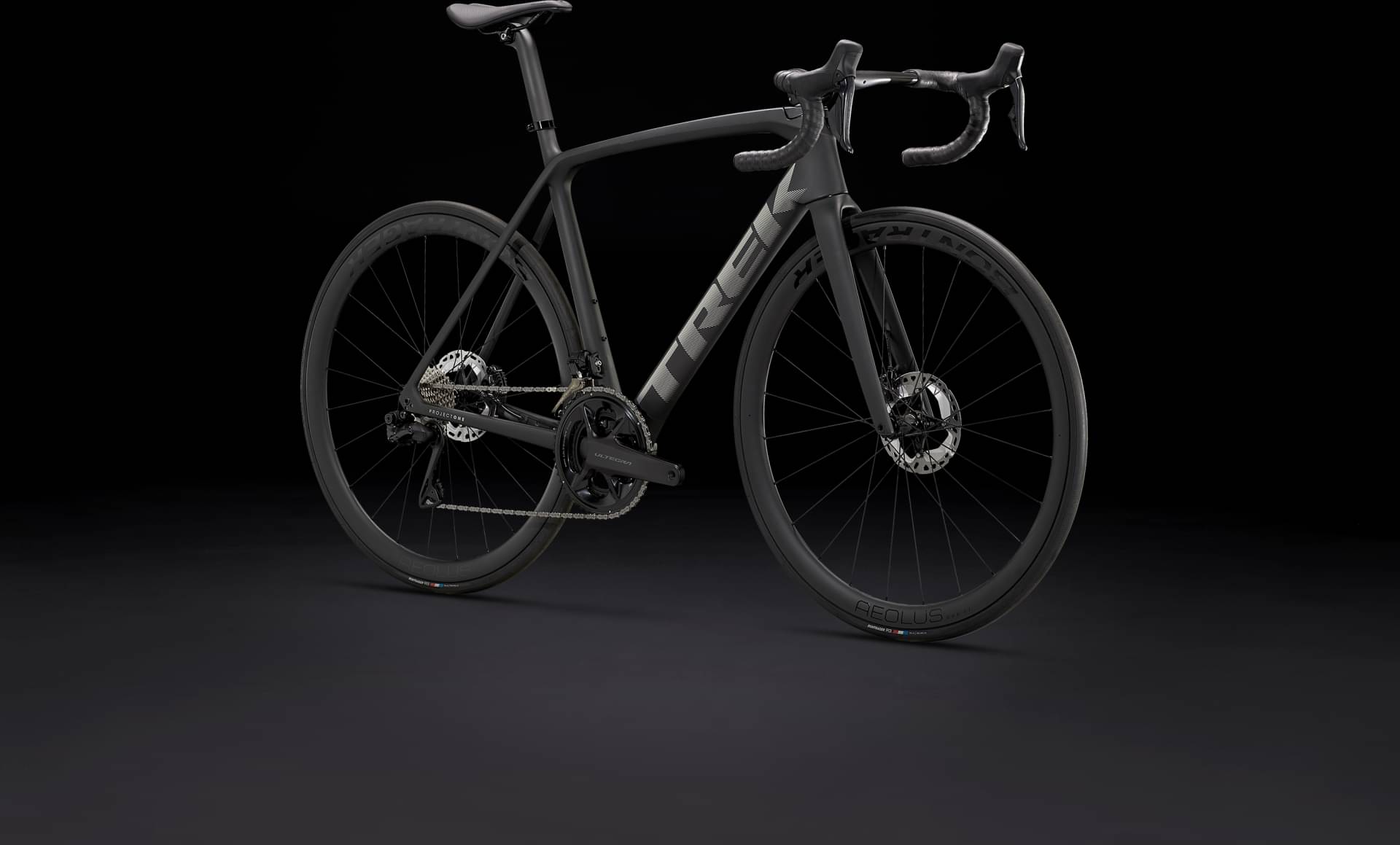

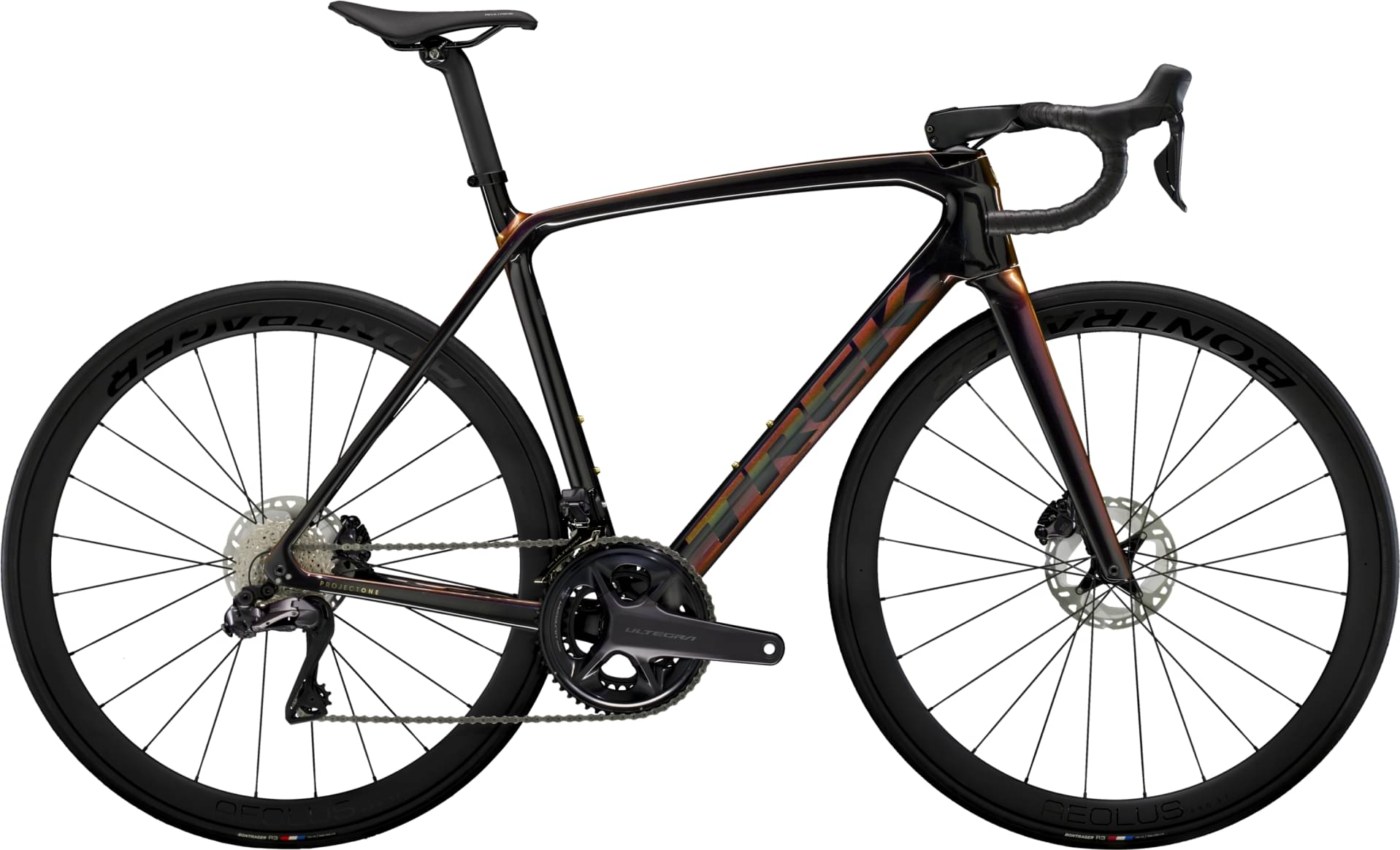

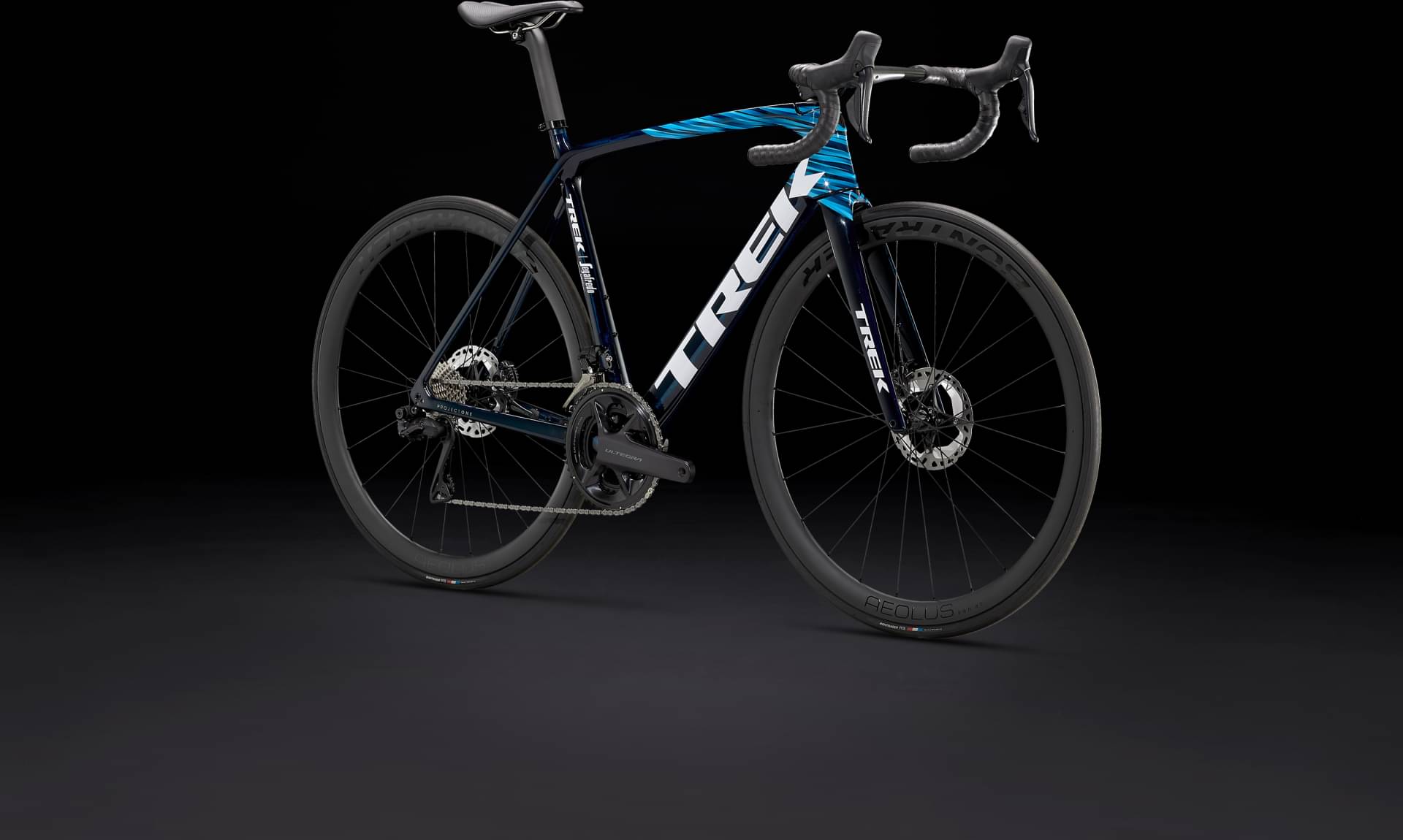

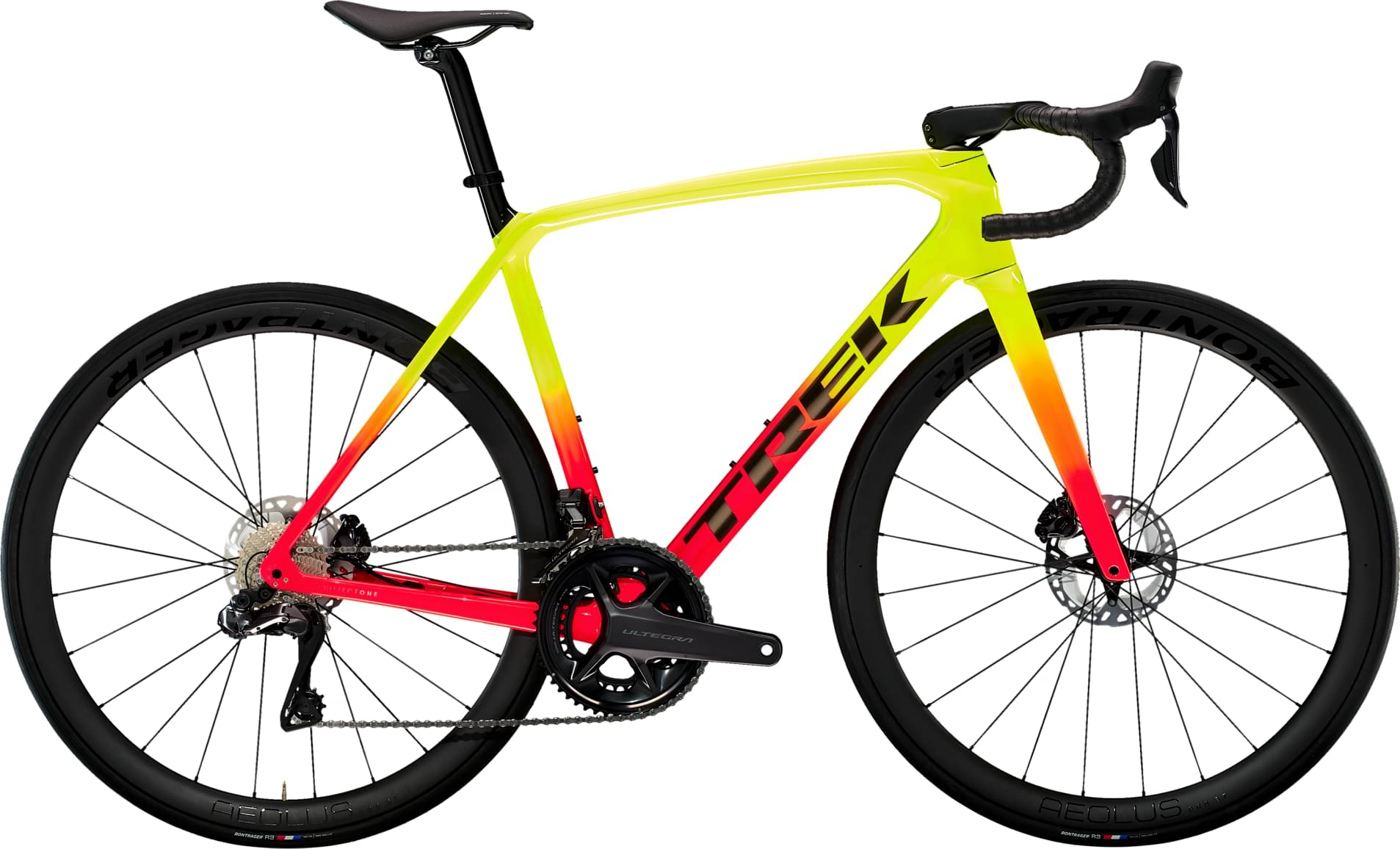

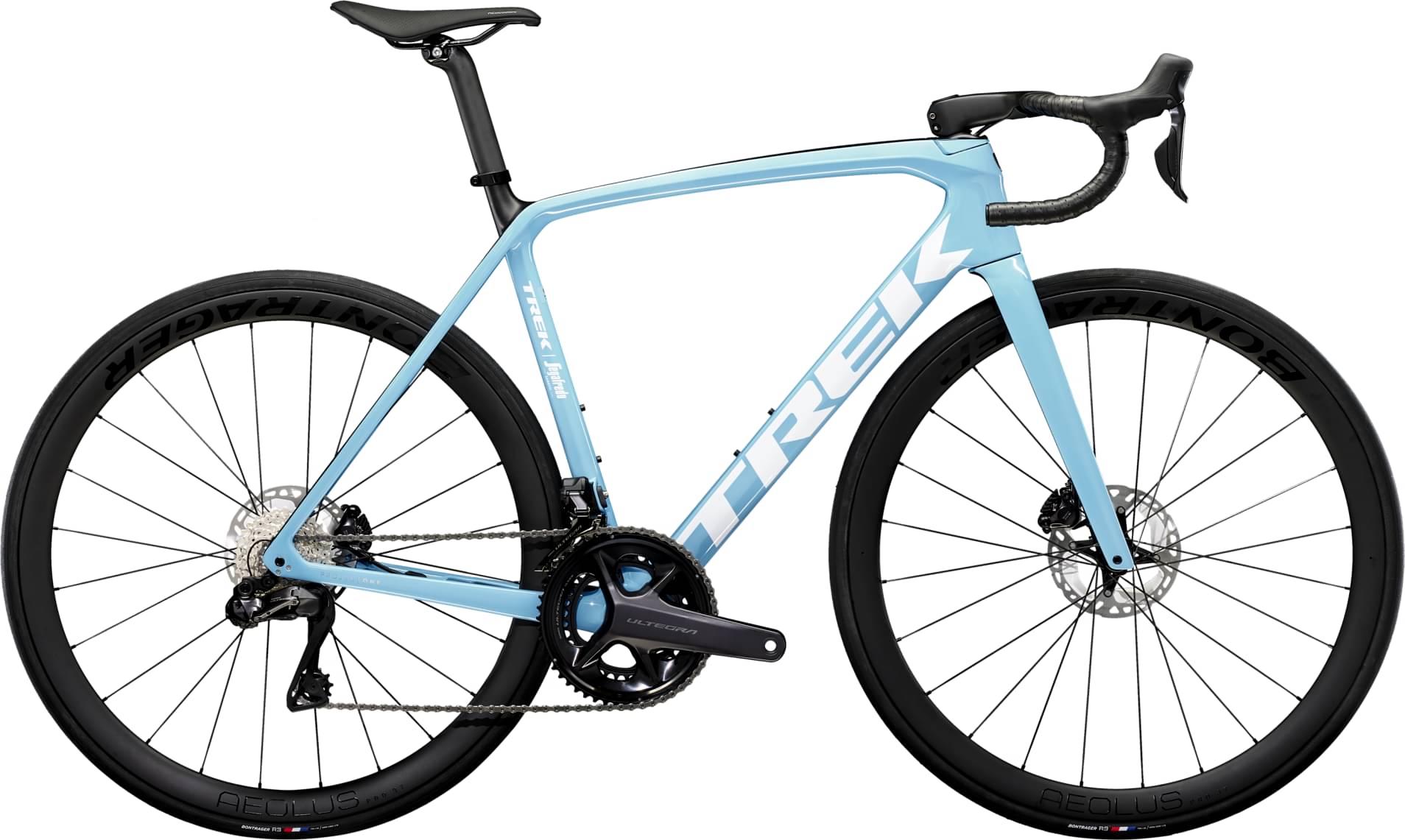

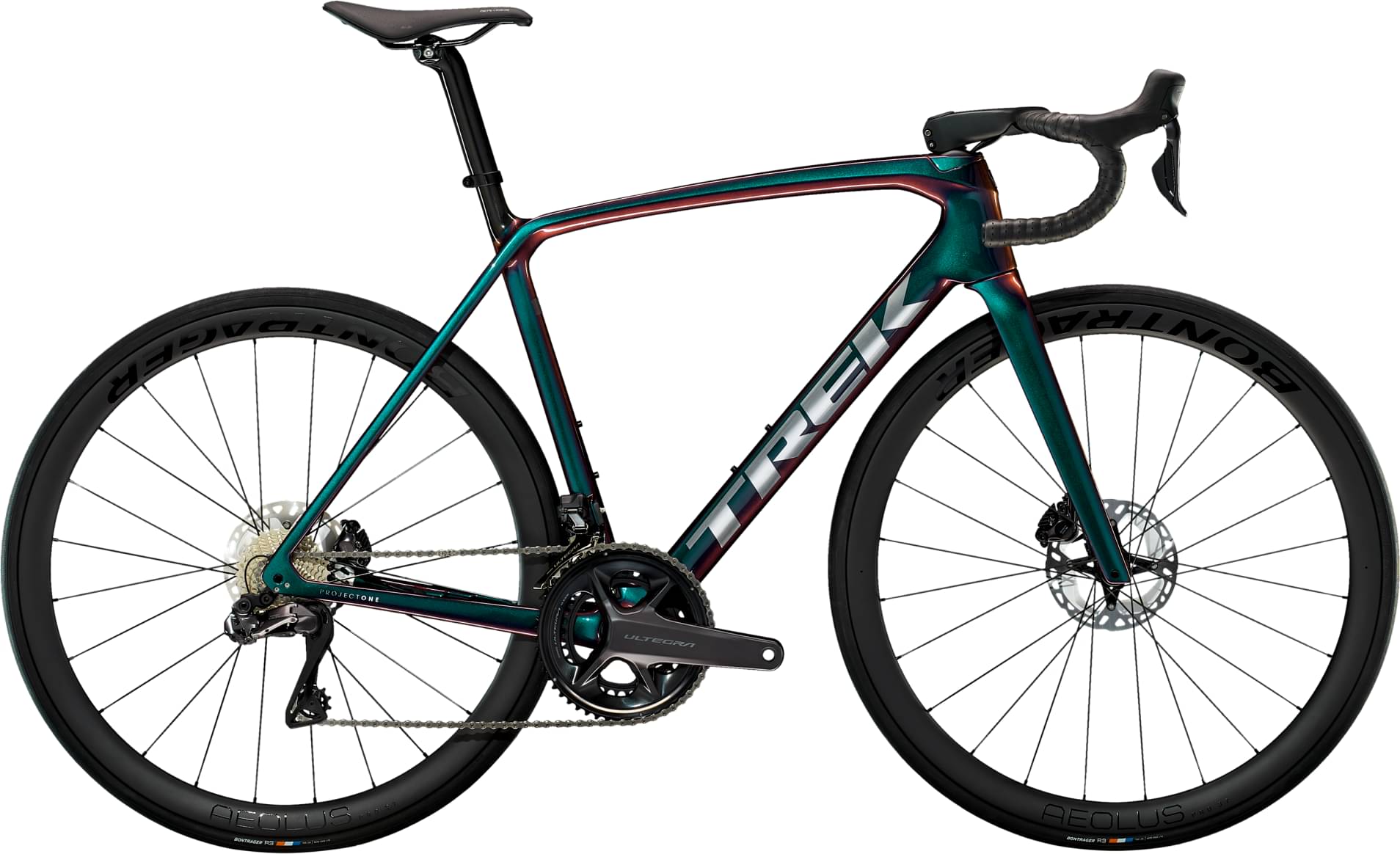

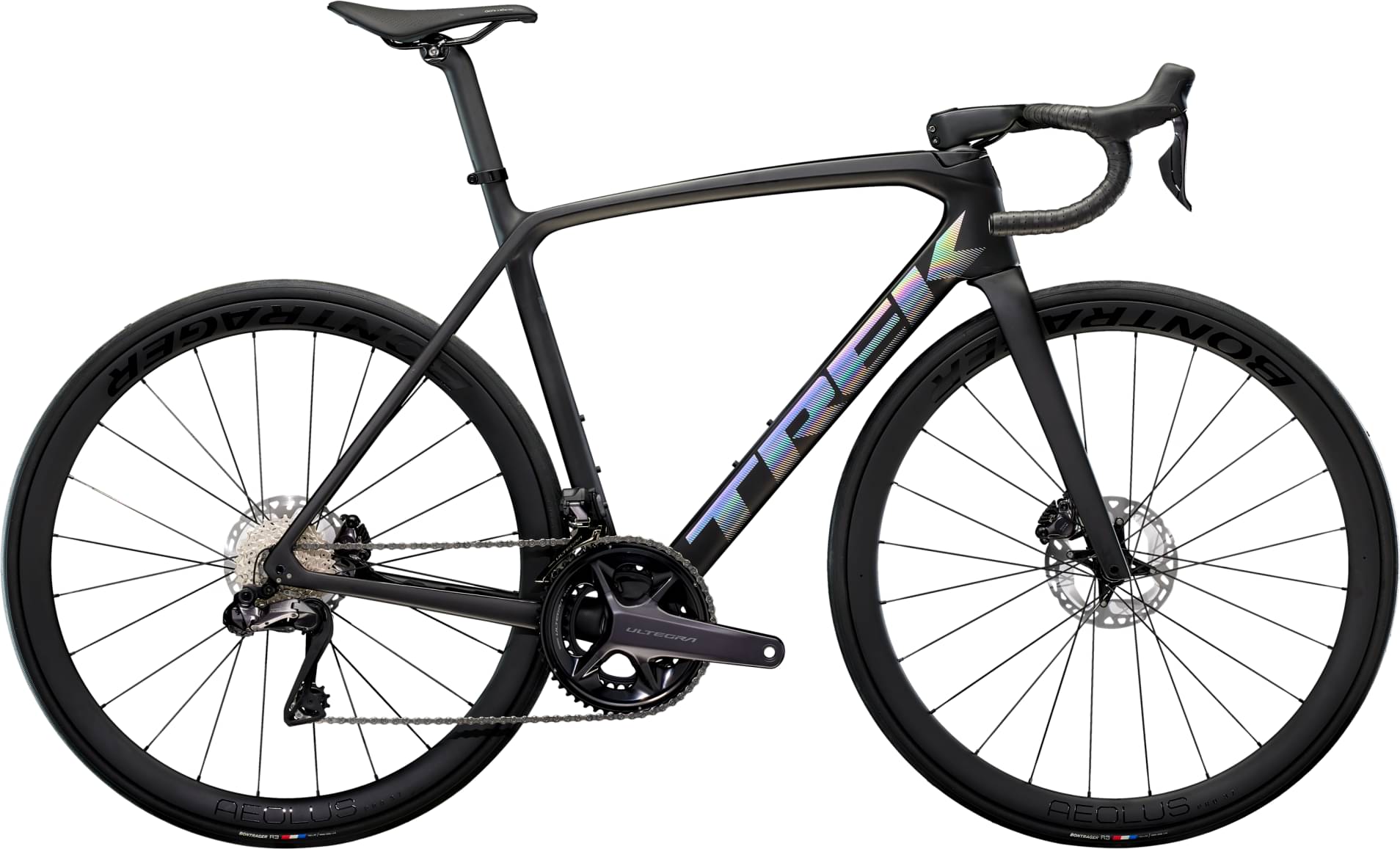

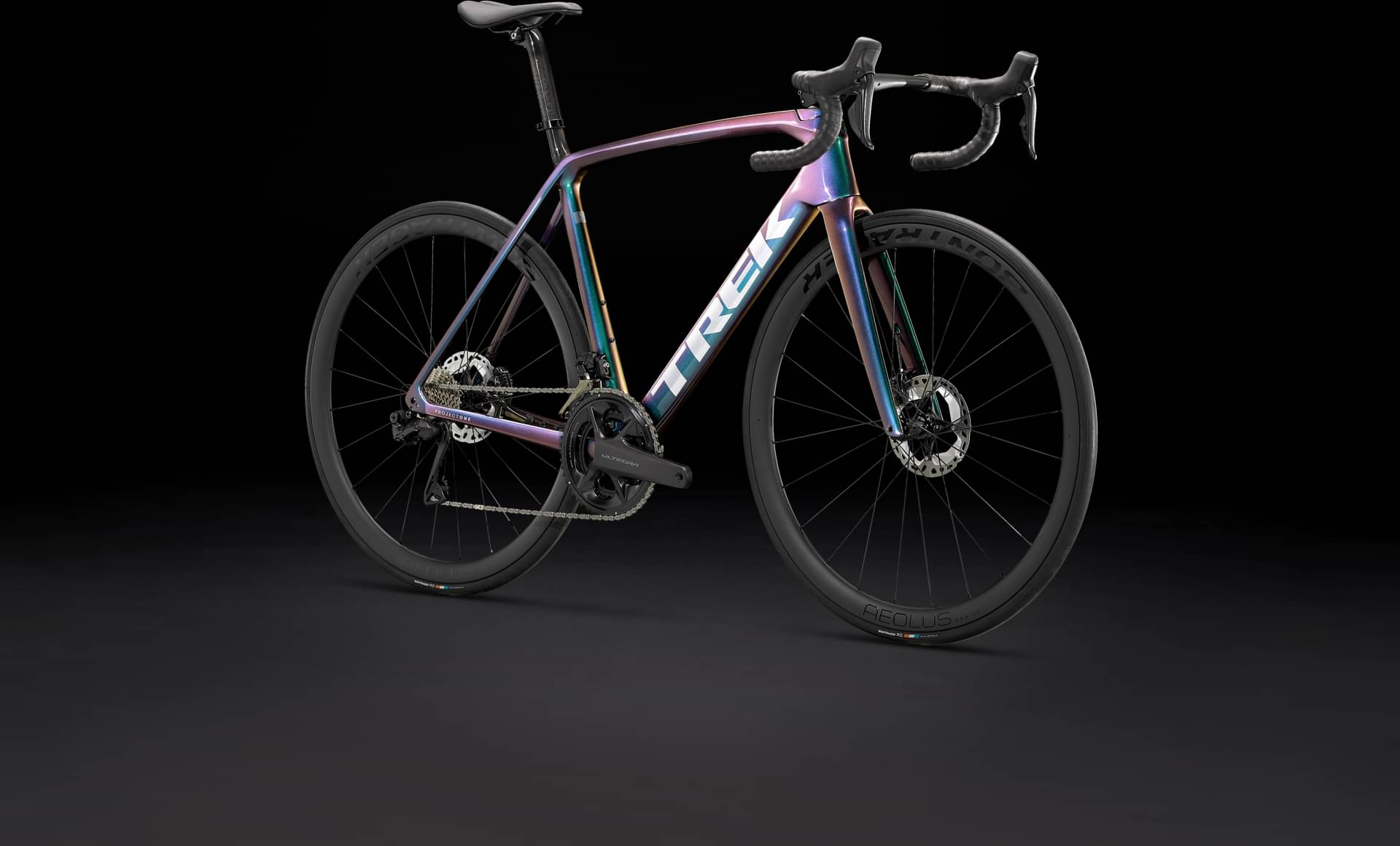

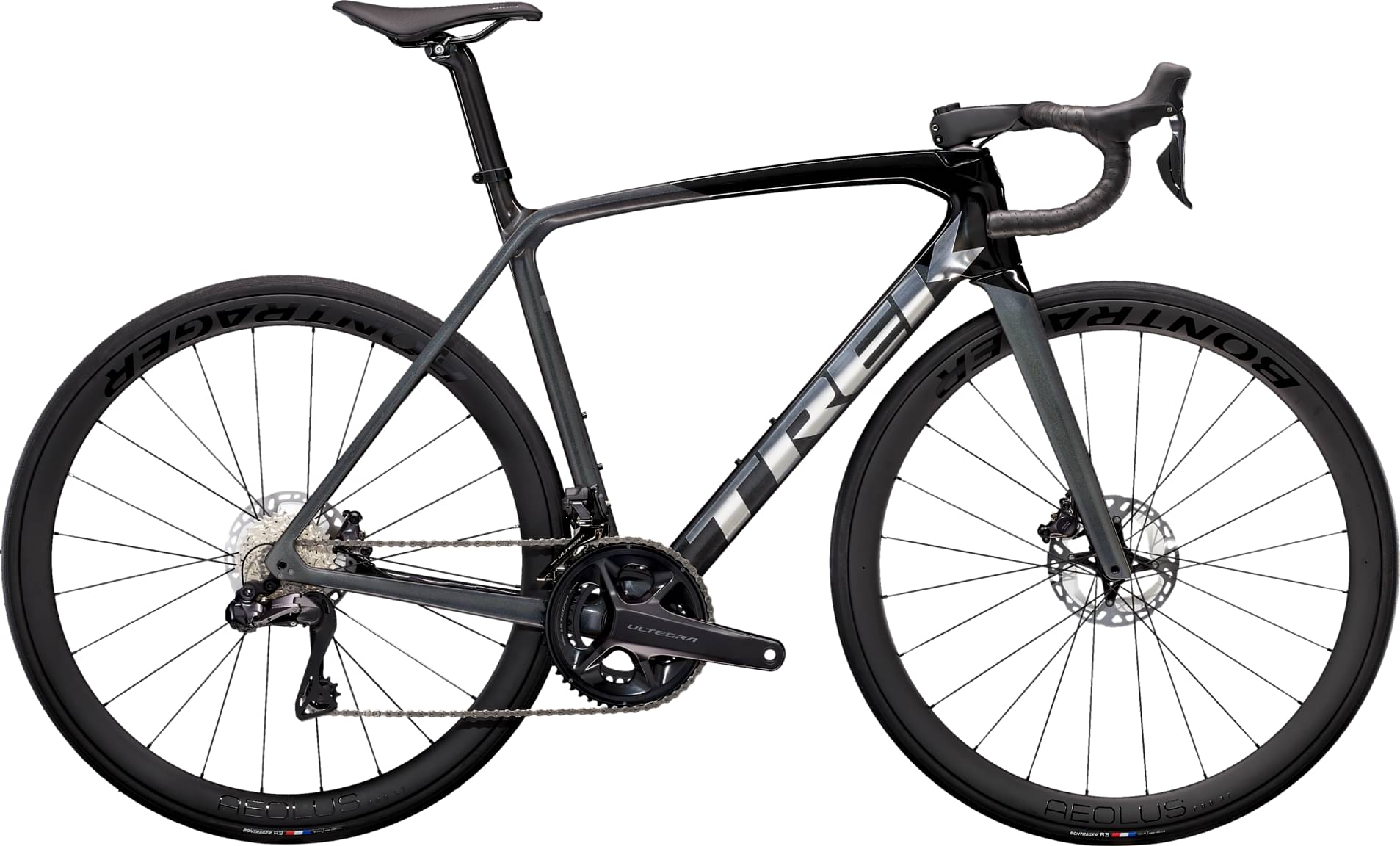

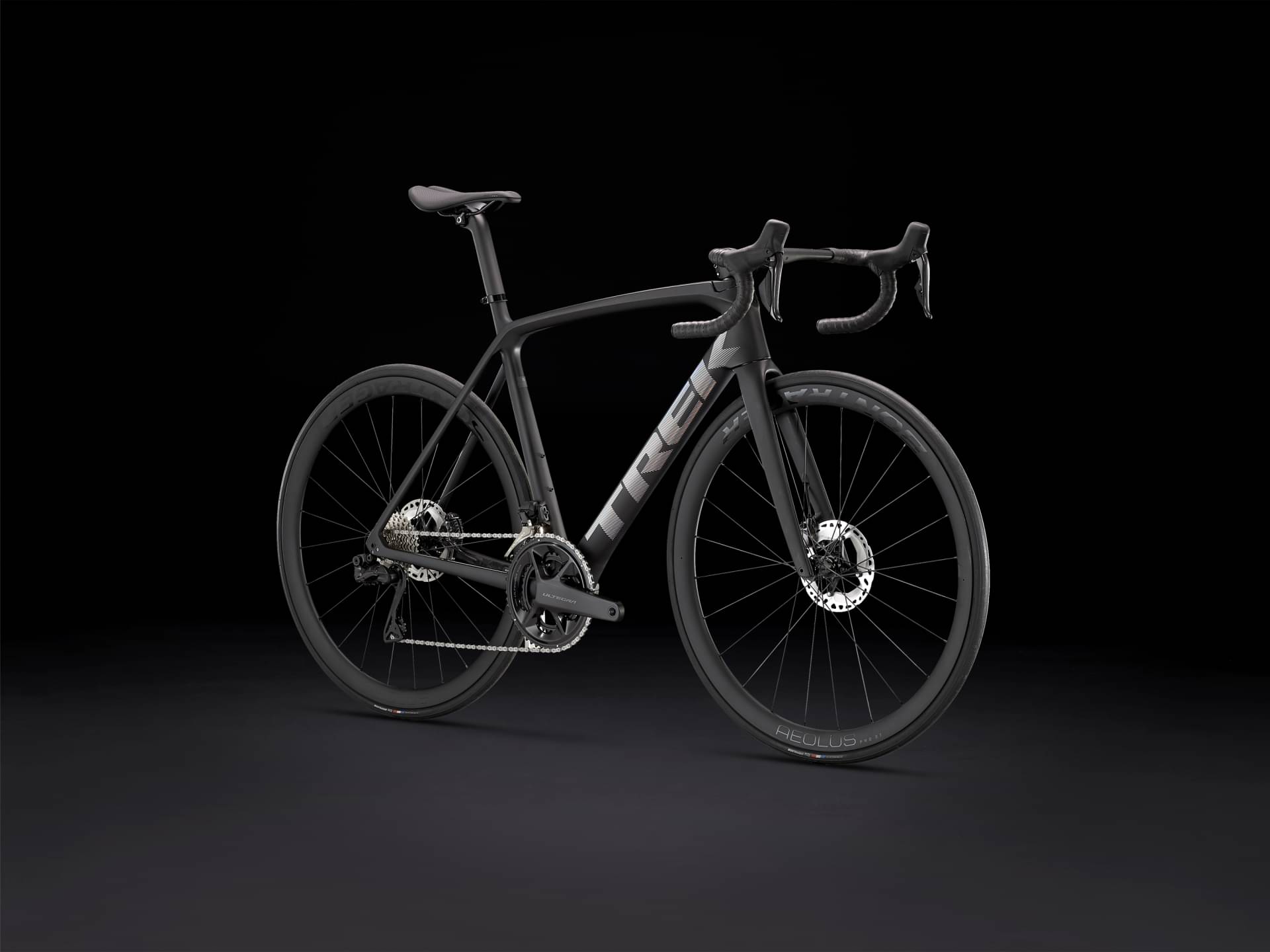

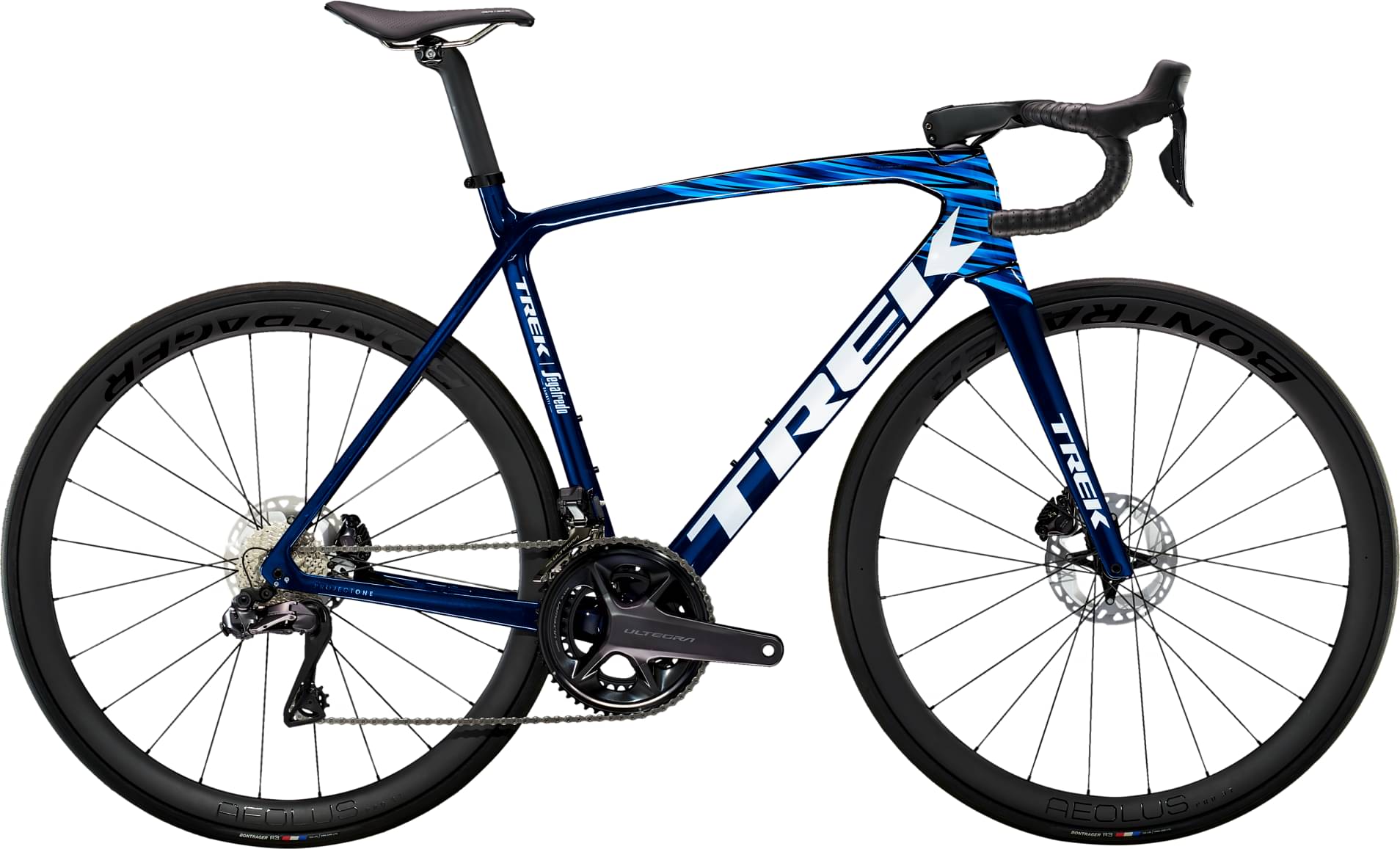

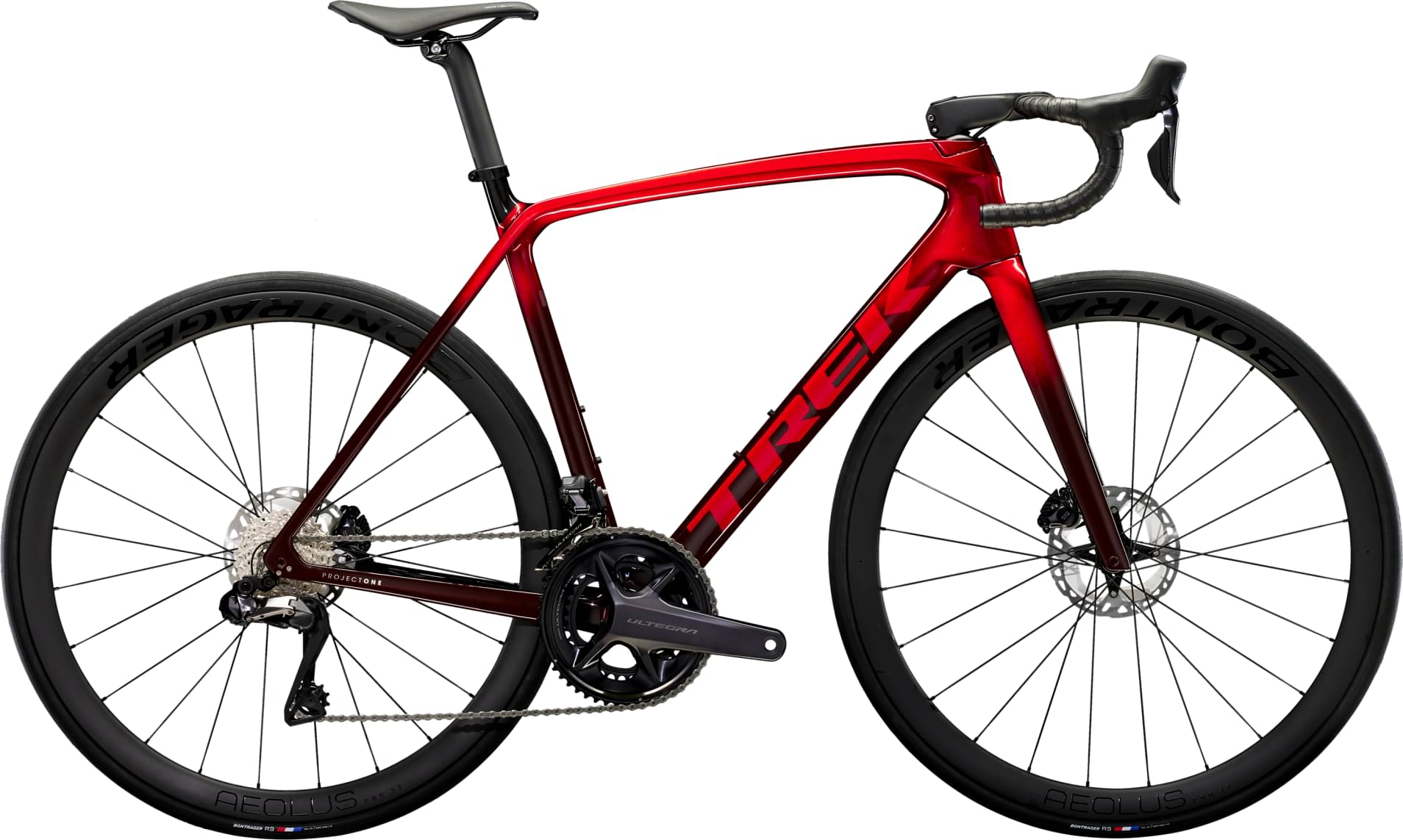

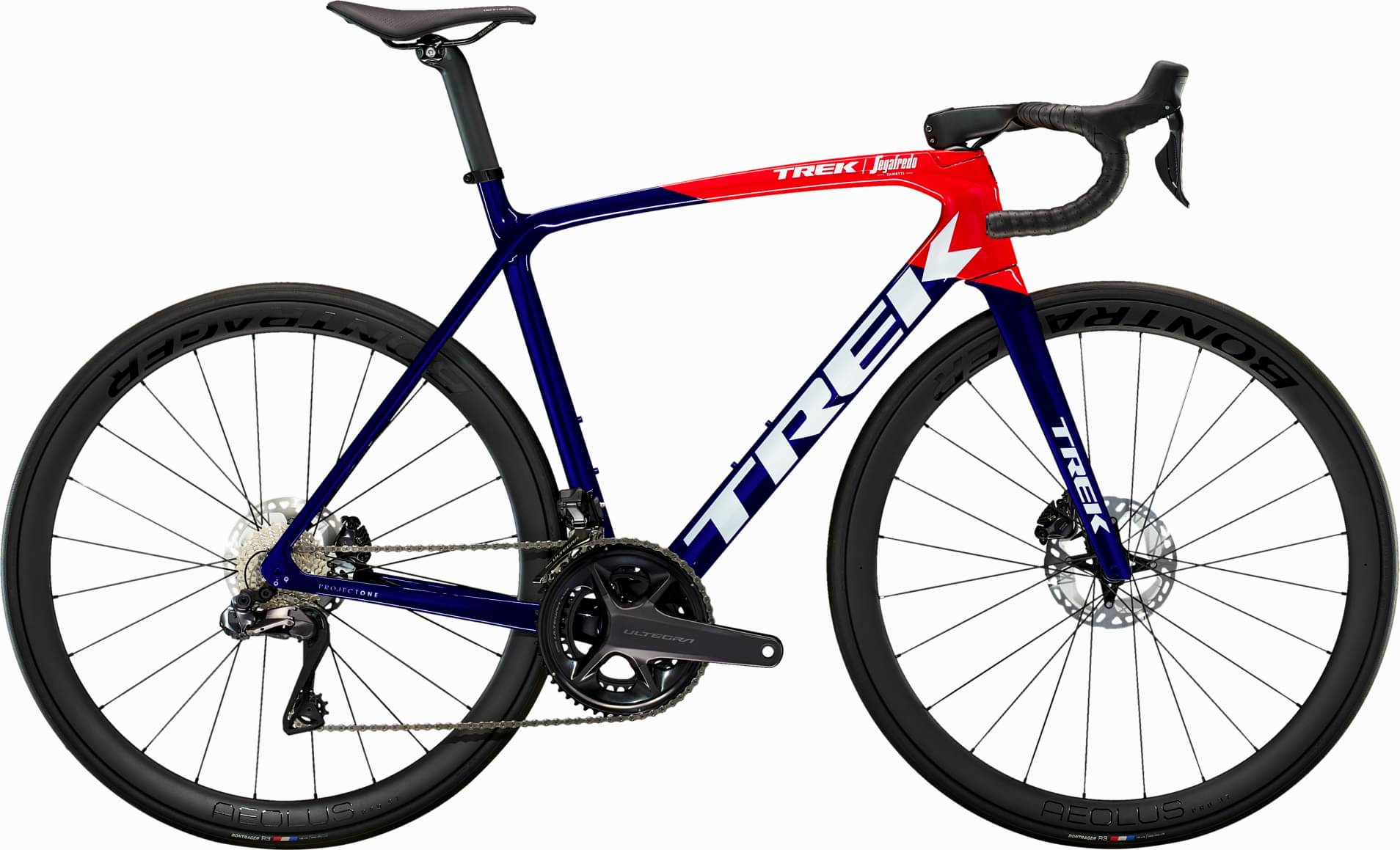

Trek Émonda SLR 7 2024
2024 Road
Estimate price |
8,999$
Weight | 7.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Battery Shimano BT-DN300 -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

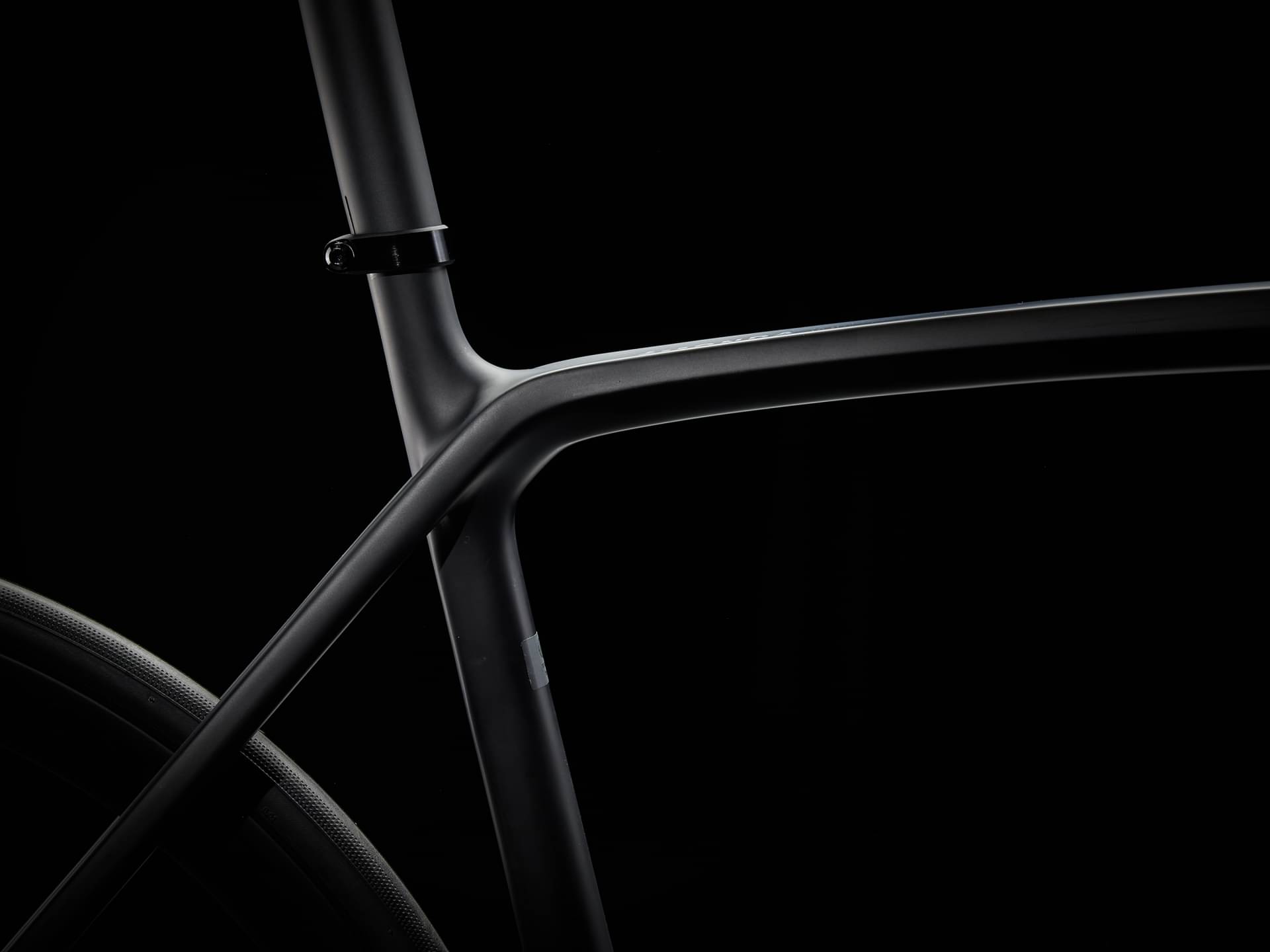

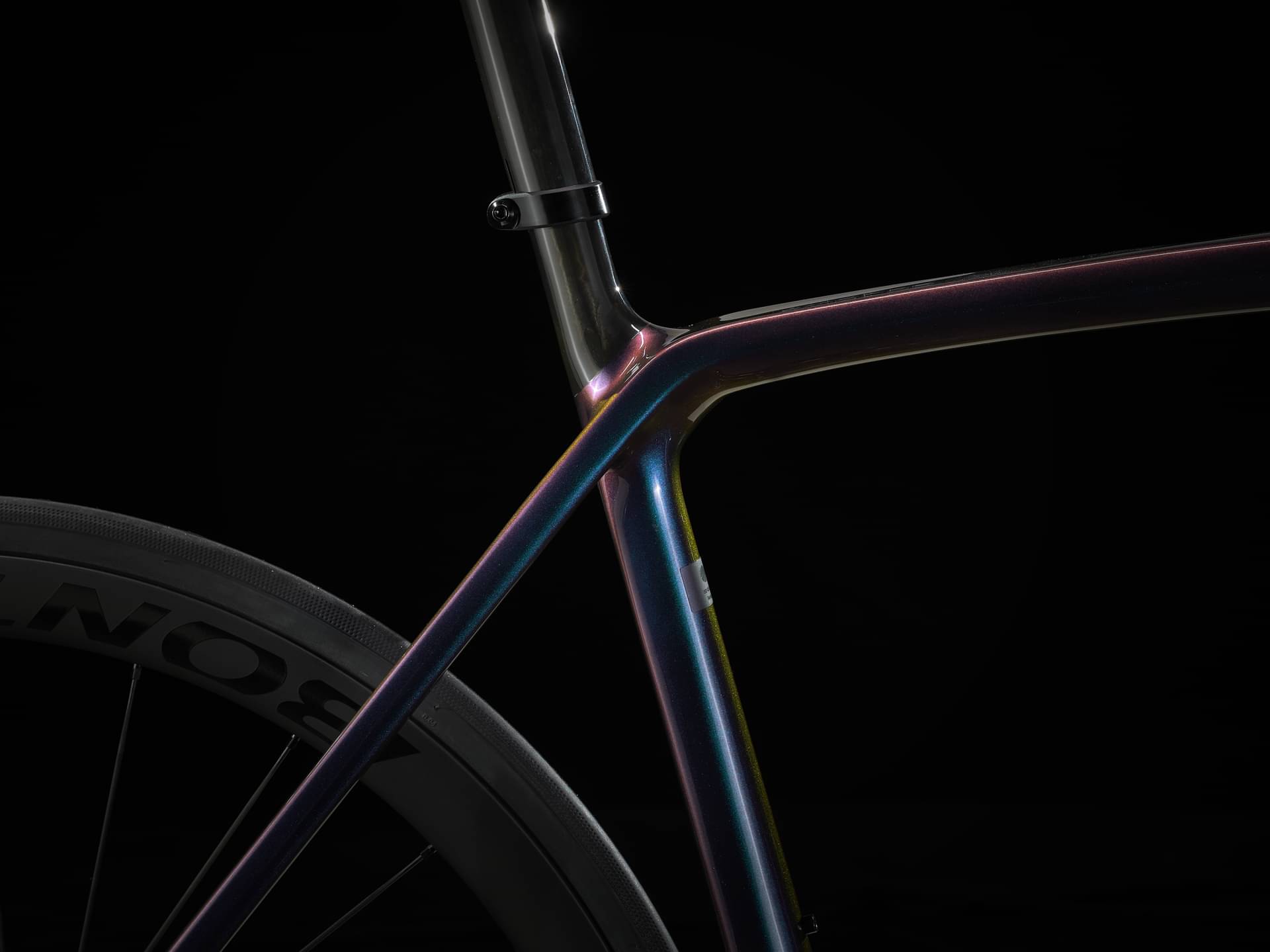

Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

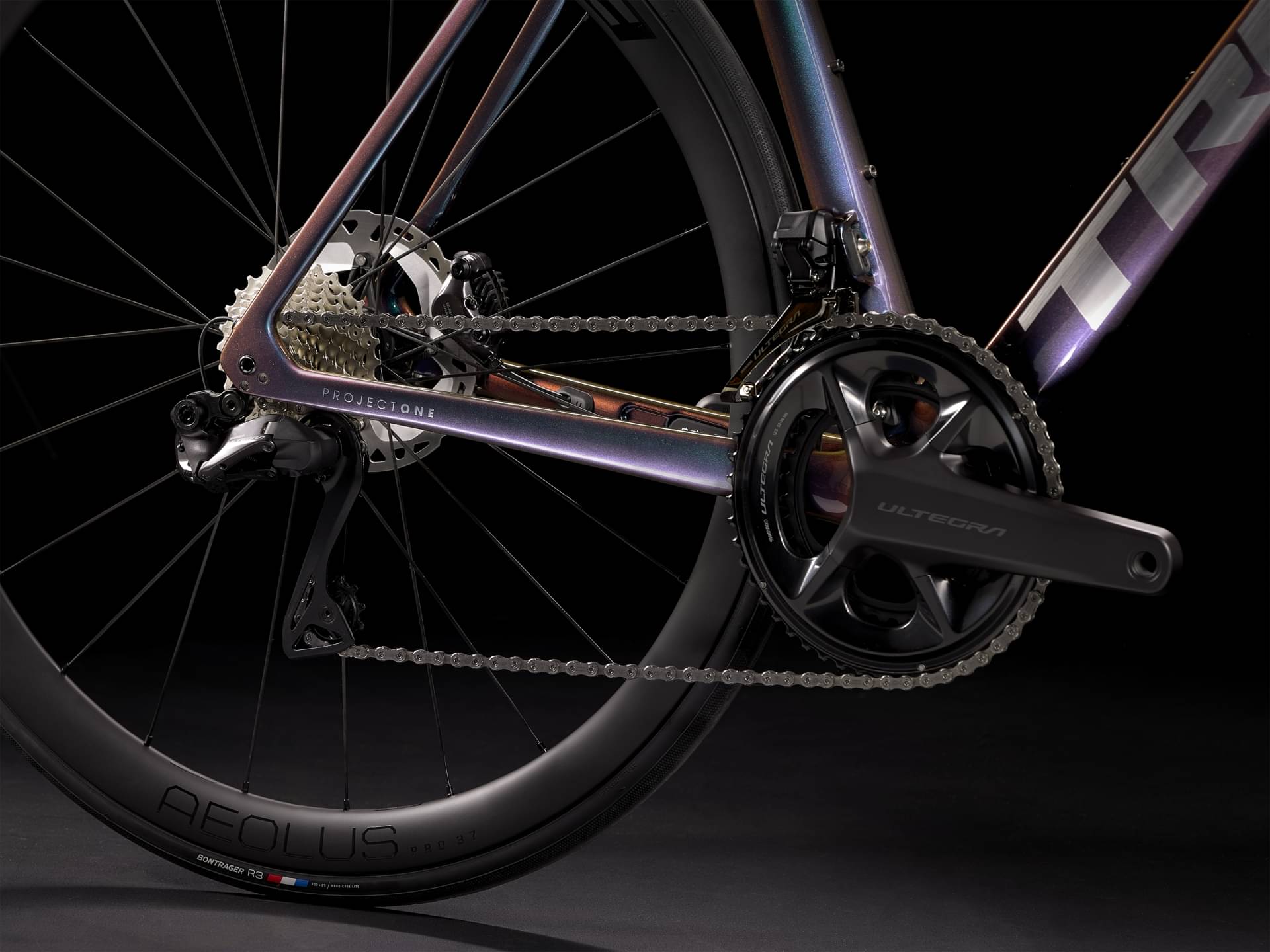

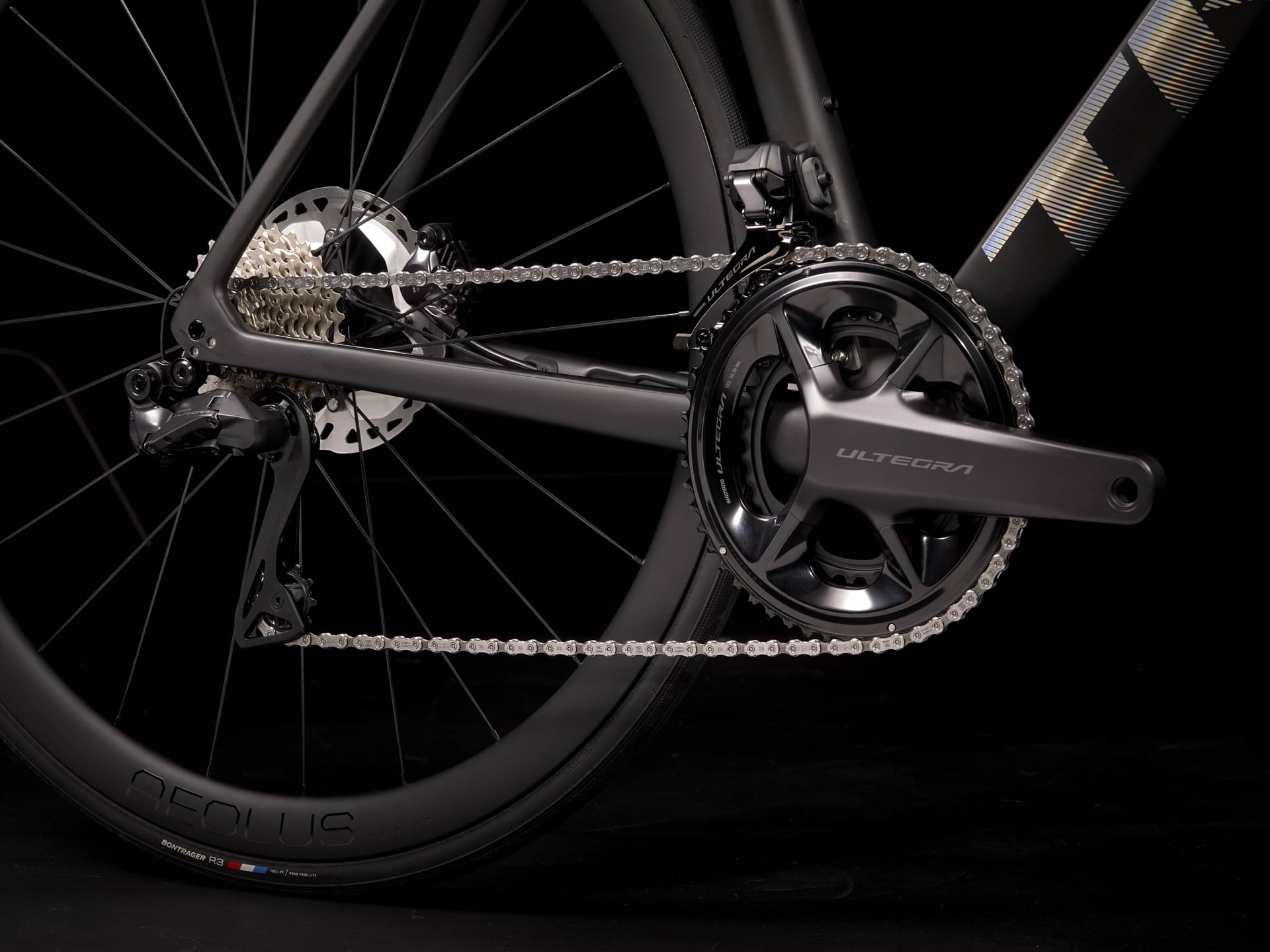

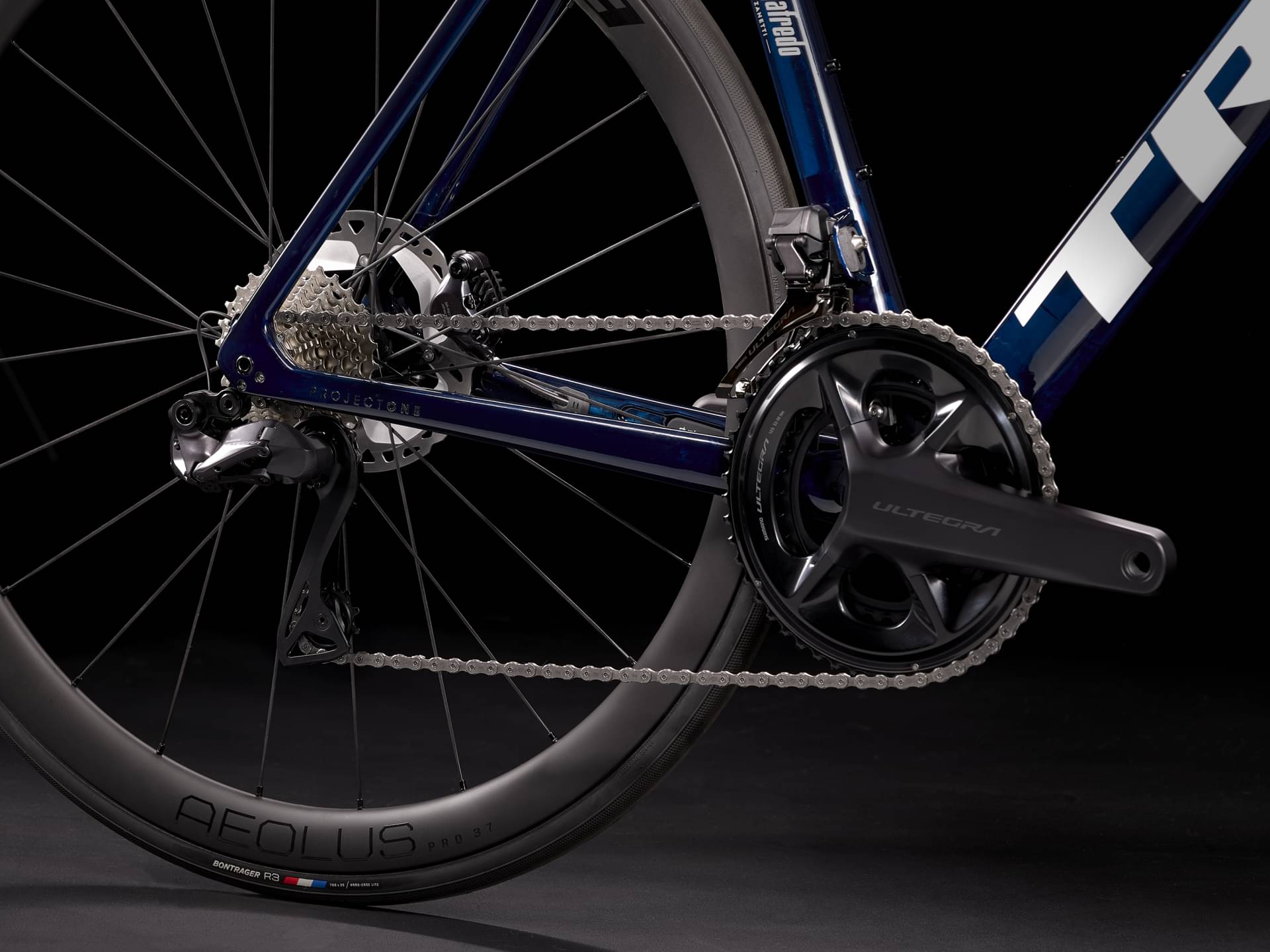

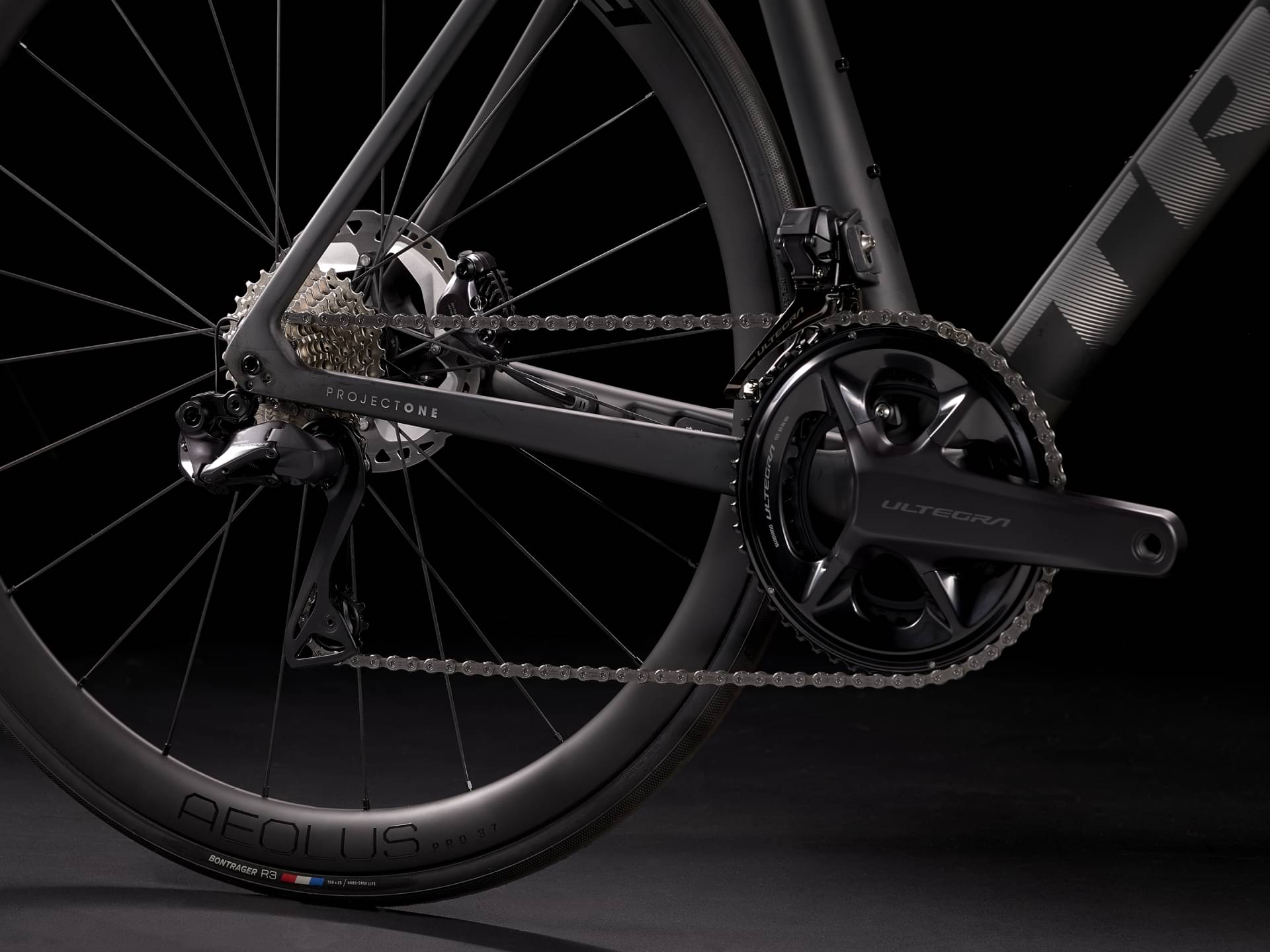

Drivetrain
Rear Derailleur
Shimano Ultegra R8150 Di2, 34T max cog
Front Derailleur
Shimano Ultegra R8150 Di2, braze-on, down swing
Shift Levers
Shimano Ultegra R8170 Di2, 12 speed
Cassette
Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano Ultegra R8100, 11-30, 12 speed; Size: 47, 50, 52, 54, 56, 58, 60, 62, Shimano Ultegra R8101, 11-30, 12 speed
Crank
Size: 47, Shimano Ultegra R8100, 52/36, 165mm length; Size: 50, 52, Shimano Ultegra R8100, 52/36, 170mm length; Size: 54, 56, 58, Shimano Ultegra R8100, 52/36, 172.5mm length; Size: 60, 62, Shimano Ultegra R8100, 52/36, 175mm length
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano Ultegra/XT M8100, 12 speed
Wheels
Rims
Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
Brakes
Brakes

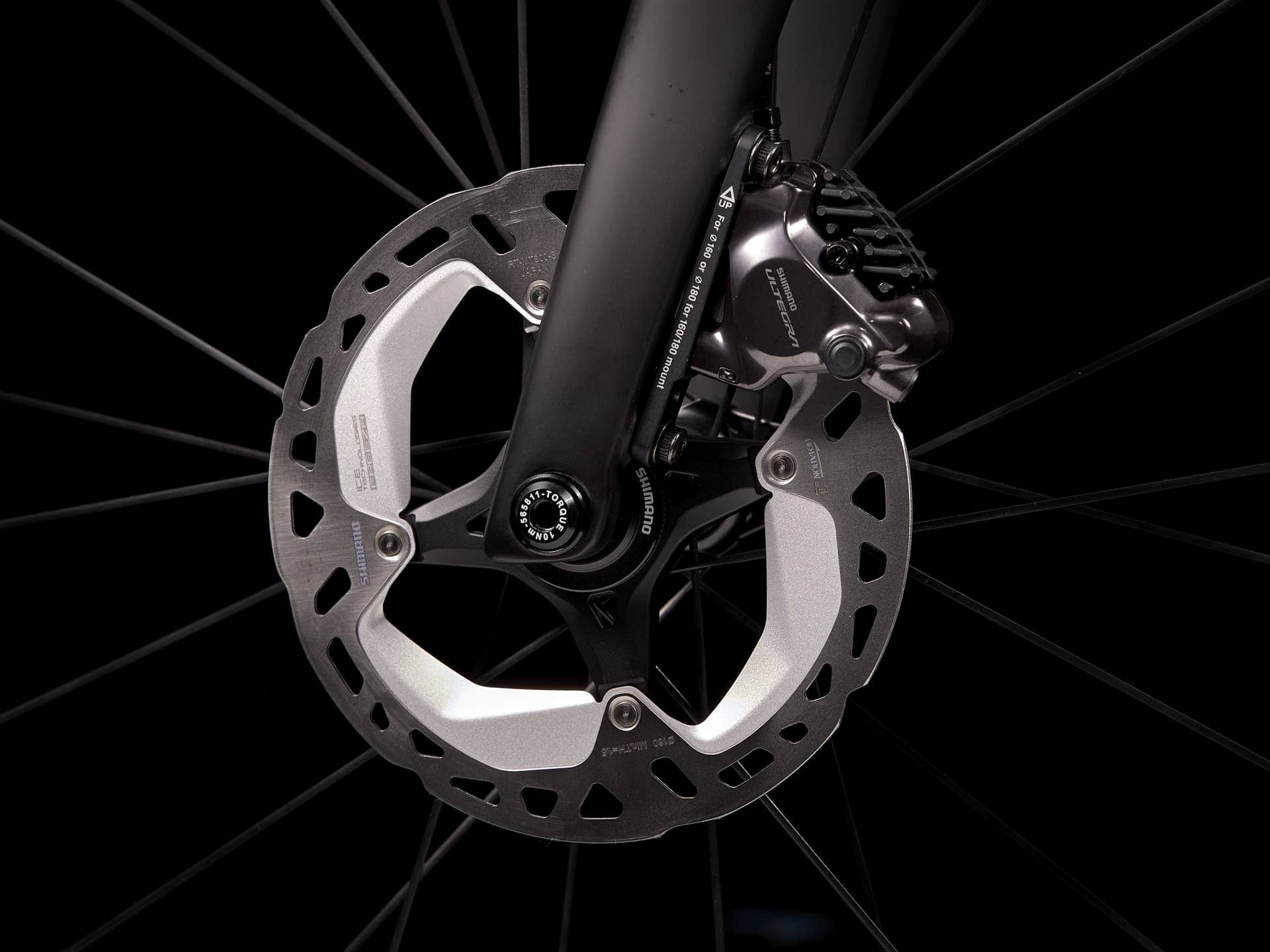

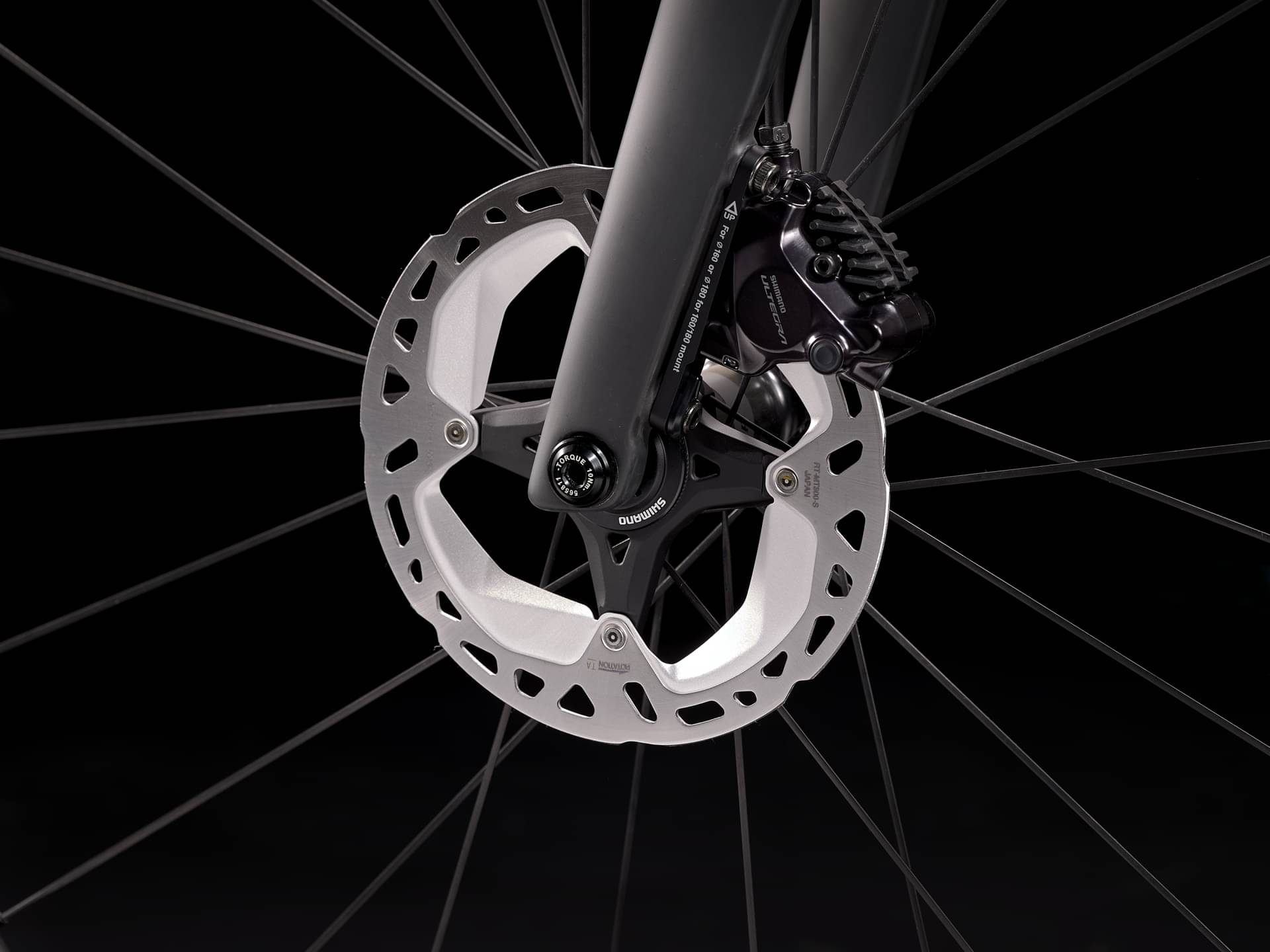

Shimano Ultegra hydraulic disc, flat mount
Seat
Saddle
Size: 47, 50, 52, Bontrager Aeolus P2 Elite, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Elite, austenite rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, Bontrager carbon seatmast cap, 20mm offset, short length; Size: 56, 58, 60, 62, Bontrager carbon seatmast cap, 20mm offset, tall length
Motor & Battery
Battery
Shimano BT-DN300
Charger
Charging cable included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda SLR 7 is part of the Trek Emonda model. 251 bikes variations carry this model name so far. Take a sneak peek at all Trek Emonda bikes models from 2024, by clicking here.
Model range prices
Trek Émonda SL 5 2024 is the cheapest bike model and costs 3184$. Trek Émonda SLR 9 AXS 2024 is the most expensive one and costs 12999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2024, its price was 8999$. If we compare this with the average Race bike cost we notice that the price is 168.63% higher.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.72 kg (14.82 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Émonda SLR 7 weighs 7.1 kg (15.65 lbs) and is a bit heavier than the average. In other words, this model is 5.65% heavier than the average Race bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Émonda SLR 7 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Émonda SLR 7 model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.

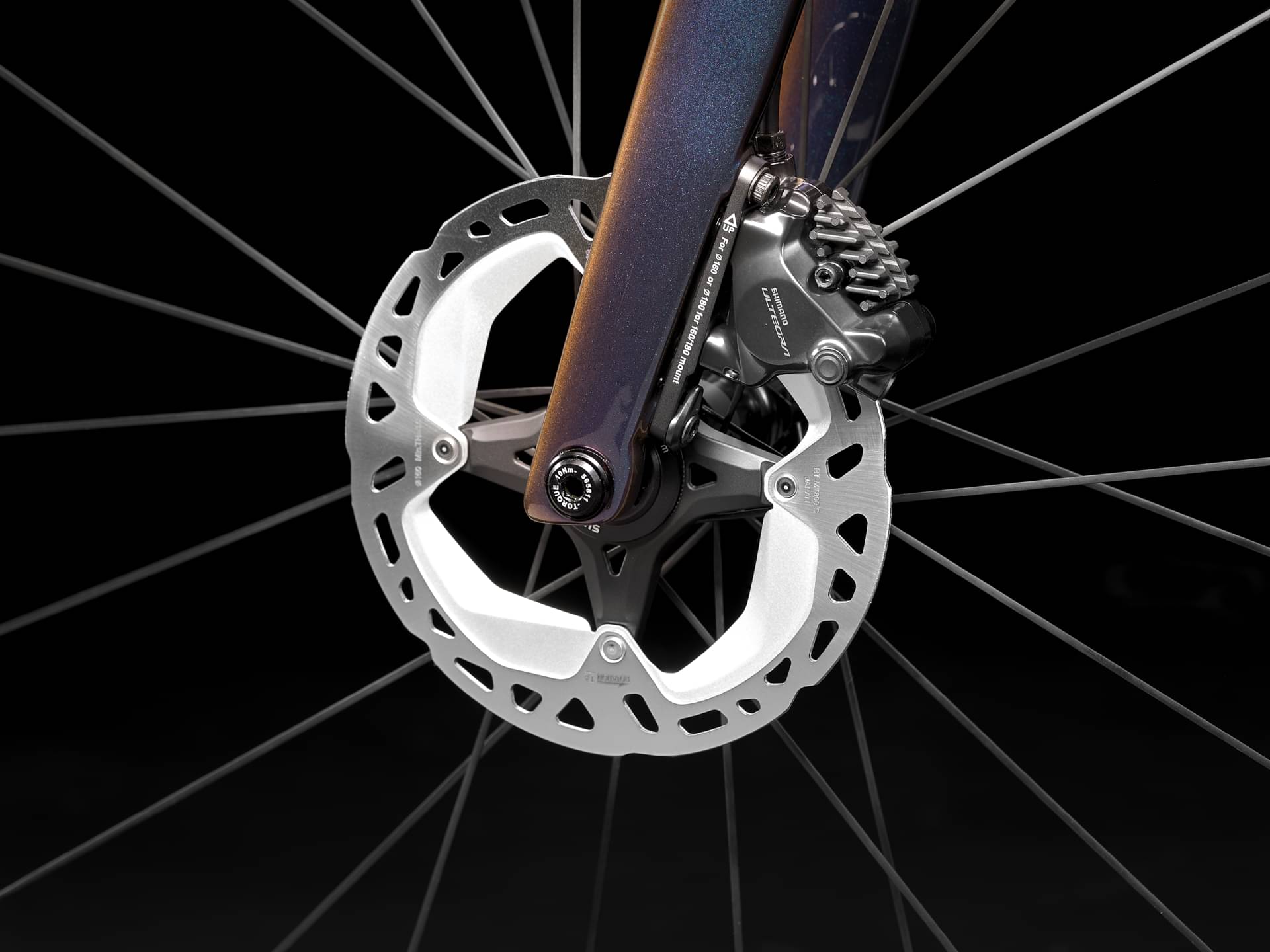

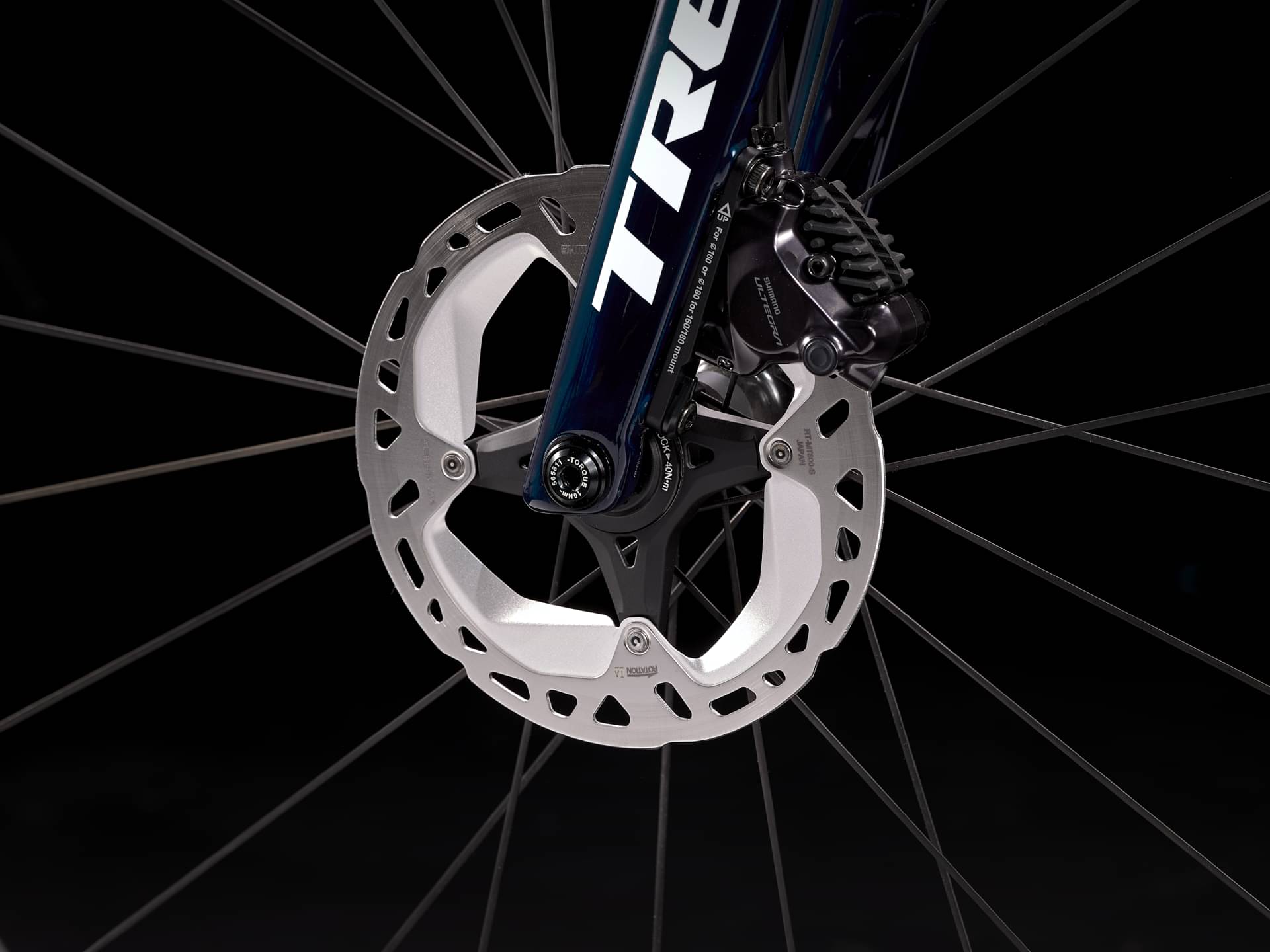

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Trek Émonda SLR 7 bike has 8 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
