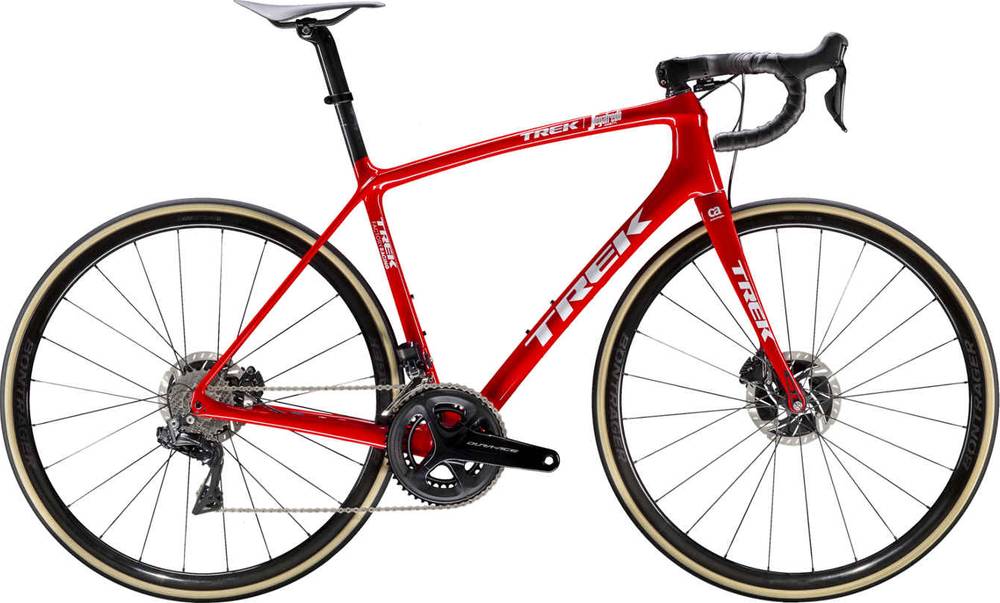

Trek Émonda SLR 9 Disc 2019
2019 Road
Estimate price |
11,799$
Weight | 6.32 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, ride-tuned performance tube optimization, tapered head tube, BB90, flat mount disc brakes, 12mm thru-axle, internal cable routing, DuoTrap S compatible, Ride Tuned seatmast
Suspension Fork
Émonda full carbon disc, carbon tapered steerer, flat mount disc brakes
Drivetrain
Rear Derailleur
Shimano Dura-Ace
Front Derailleur
Shimano Dura-Ace, braze-on
Shift Levers
Shimano Dura-Ace Di2, 11 speed
Cassette
Shimano Dura-Ace, 11-28, 11 speed
Crank
Shimano Dura-Ace, 50/34 (compact)
Bottom Bracket
BB90
Chain
Shimano Dura-Ace
Pedals
Not included
Wheels
Rims
Bontrager Aeolus XXX 2 Disc Tubeless Ready, 12mm thru-axle
Tires
Bontrager R4 320, 320 tpi, 700x25c
Brakes
Brakes
Shimano Dura-Ace flat mount hydraulic disc
Cockpit
Stem
Bontrager XXX integrated bar/stem, OCLV Carbon, 7 degree
Handlebar
Bontrager XXX Barstem Combo
Grips
Bontrager tape
Headset
Integrated, cartridge bearing, sealed, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager XXX, carbon rails
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 515 mm | 528 mm | 540 mm | 548 mm | 570 mm | 589 mm | 608 mm | 627 mm |
| Reach | 362 mm | 367 mm | 372 mm | 374 mm | 380 mm | 384 mm | 388 mm | 391 mm |
| Top Tube Length | 506 mm | 514 mm | 527 mm | 536 mm | 553 mm | 566 mm | 579 mm | 591 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 404 mm | 404 mm | 405 mm |
| Wheelbase | 967 mm | 967 mm | 970 mm | 974 mm | 976 mm | 985 mm | 994 mm | 1003 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 700 | 722 mm | 735 mm | 760 mm | 779 mm | 797 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 172 cm | 178 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 196 cm |
About this model
Émonda SLR 9 Disc is a Trek Emonda model. Trek released 251 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Trek Émonda ALR 4 2019 is the cheapest bike model and costs 1439$. Trek Émonda SLR 9 Disc Women’s 2019 is the most expensive one and costs 11799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Émonda SLR 9 Disc price was 11799$. Doing a quick comparison, we notice that Émonda SLR 9 Disc price is 252.21% higher than the average cost of a Race bike.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 6.32 kg (13.93 lbs), the Émonda SLR 9 Disc model is a bit lighter than average. In other words, this model is 7.91% lighter than the average Race bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Émonda SLR 9 Disc components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Émonda SLR 9 Disc 2019 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Émonda SLR 9 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Émonda SLR 9 Disc comes in 8 sizes, that range from 152 cm – 196 cm (4.99 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
