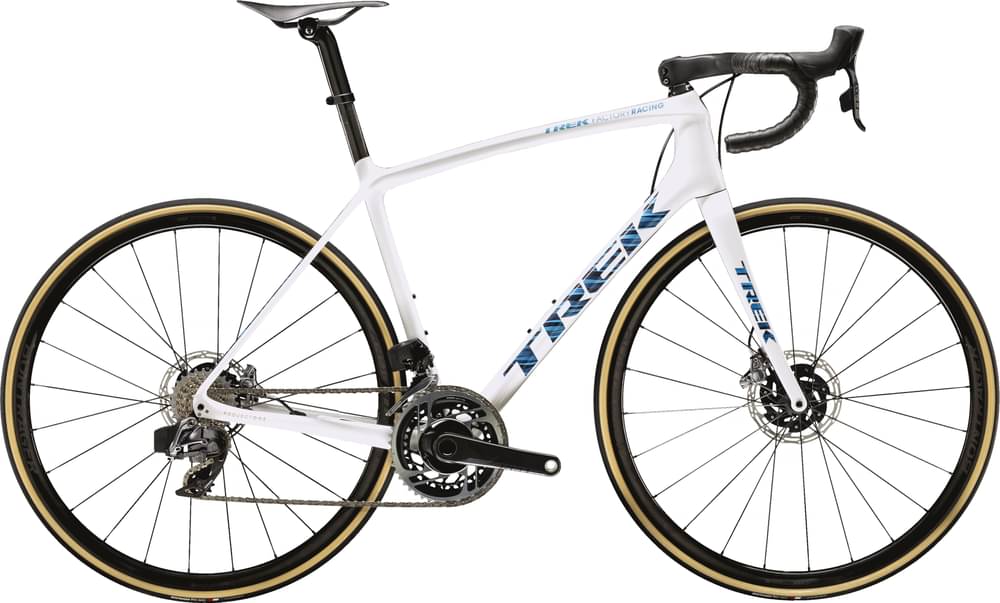

Trek Émonda SLR 9 Disc eTap 2020
2020 Road
Estimate price |
10,499$
Weight | 6.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
152cm - 159cm
50cm
157cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, Control Freak internal routing, Ride Tuned seatmast, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Suspension Fork
Émonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, Orbit chain management, 33T max cog
Front Derailleur
SRAM RED eTap AXS, braze-on
Shift Levers
SRAM RED eTap AXS, 12 speed
Cassette
SRAM RED XG-1290, 10-28, 12 speed
Crank
SRAM RED D1, 48/35, 24mm spindle, 175mm length
Chain
SRAM RED D1, 12 speed
Wheels
Rims
Bontrager Aeolus XXX 2, OCLV Carbon, Tubeless Ready, 21mm rim width, 28mm rim depth, 100x12mm thru axle
Tires
Bontrager R4 320 Handmade Clincher, Hard-Case Lite, 320 tpi, 700x25c
Brakes
Brakes
SRAM Red eTap AXS hydraulic disc, flat mount
Disk Rotors
SRAM CenterLine X, centerlock, round edge, 160mm
Cockpit
Handlebar
Bontrager XXX Barstem Combo, OCLV Carbon, Blendr compatible, 93mm reach, 123mm drop, 44cm width, 100mm stem length
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager XXX, OCLV Carbon shell and rails, 154mm width
Seatpost
Bontrager Ride Tuned carbon seatmast cap, 20mm offset, 175mm length (tall)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.5 mm | 1.53 mm | 1.57 mm | 1.6 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 46 mm | 45 mm | 45 mm | 46 mm | 40 mm | 41 mm | 41 mm | 41 mm |
| Trail | 67 mm | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 515 mm | 528 mm | 540 mm | 548 mm | 570 mm | 589 mm | 608 mm | 627 mm |
| Reach | 362 mm | 367 mm | 372 mm | 374 mm | 380 mm | 384 mm | 388 mm | 391 mm |
| Top Tube Length | 506 mm | 514 mm | 527 mm | 536 mm | 553 mm | 566 mm | 579 mm | 591 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 444 mm | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 71.2 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 115 mm | 130 mm | 140 mm | 155 mm | 170 mm | 190 mm | 210 mm | 230 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 403 mm | 404 mm | 404 mm | 405 mm |
| Wheelbase | 967 mm | 967 mm | 970 mm | 974 mm | 976 mm | 985 mm | 994 mm | 1003 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 691 mm | 700 | 722 mm | 735 mm | 760 mm | 779 mm | 797 mm | 815 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
About this model
Émonda SLR 9 Disc eTap belongs to the Trek Emonda model. Trek released 251 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Émonda ALR 4 Disc 2020 is the cheapest bike model and costs 1599$. Trek Émonda SLR 9 Disc 2020 is the most expensive one and costs 11799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 10499$. In conclusion, this bike price is 213.4% more expensive than the price of the average Race bike.
Average weight for Race bikes
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 6.68 kg (14.73 lbs), Trek bike is slightly lighter than average. To sum up, it’s 2.1% lighter than the average weight of Race bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Émonda SLR 9 Disc eTap components
Fork material
Émonda SLR 9 Disc eTap has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Émonda SLR 9 Disc eTap model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Émonda SLR 9 Disc eTap has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Émonda SLR 9 Disc eTap comes in 8 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
