Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
50cm
157cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, ride-tuned performance tube optimization, E2, BB90, internal cable routing, 3S chain keeper, DuoTrap S compatible, Ride Tuned seatmast, 690g (56cm, weight varies by frame size)
Suspension Fork
Émonda full carbon, E2 asymmetric steerer, carbon dropouts
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Headset
Cane Creek IS-8, integrated, cartridge bearings, sealed, carbon, 1-1/8 top, 1.5" bottom
Seat
Seatpost
Bontrager Ride Tuned Carbon seatmast cap, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview

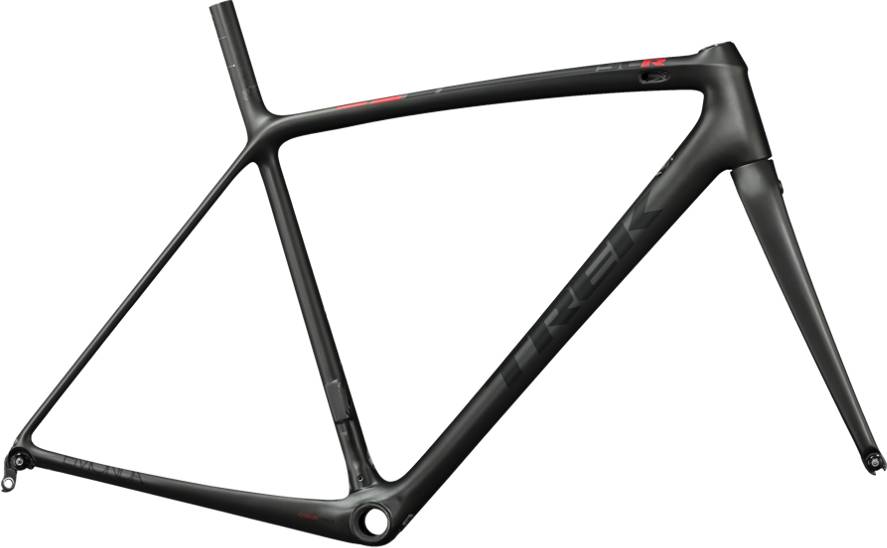

Émonda SLR H1 Frameset is a Trek Emonda model. Trek launched 251 frames of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Trek Émonda SLR H1 Frameset frame has 7 sizes, in the range of 157 cm – 195 cm (5.15 ft – 6.4 ft). In short, you can easily find one that suits you.
