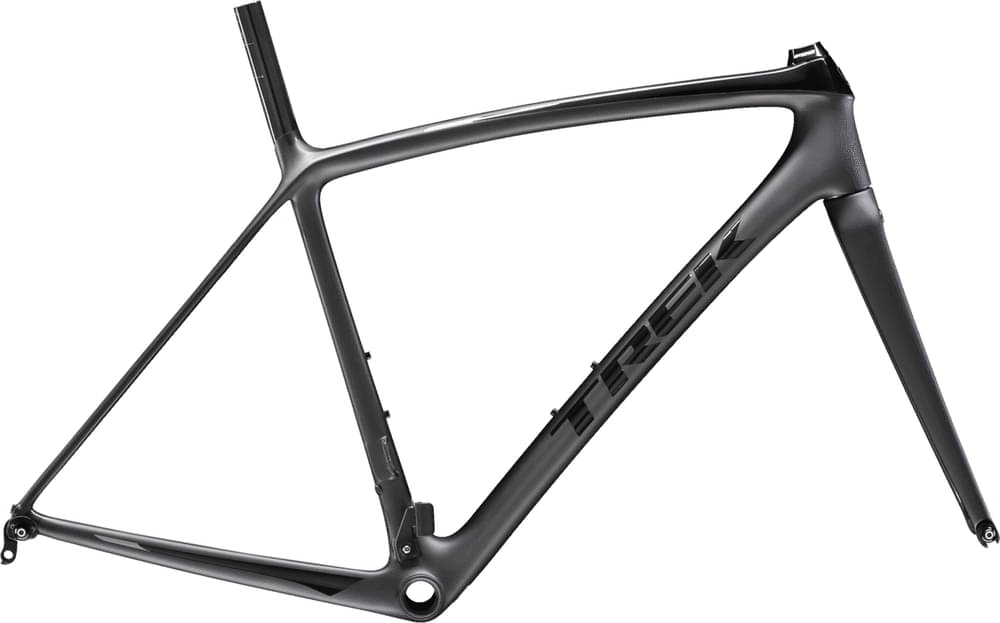

Trek Émonda SLR RSL Frame Set 2021
2021 Road
Estimate price |
3,440$
Weight | 1.17 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
50cm
158cm - 164cm
52cm
162cm - 169cm
54cm
167cm - 175cm
56cm
173cm - 181cm
58cm
179cm - 186cm
60cm
184cm - 191cm
62cm
189cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight 700 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, Control Freak internal routing, Ride Tuned seat mast, DuoTrap S-compatible, direct-mount rim brake, 130x5 mm QR
Suspension Fork
Emonda SLR full carbon, tapered carbon steerer, direct-mount brake, carbon dropouts, 5x100 mm QR
Seat
Seatpost
Not included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.34 mm | 1.36 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.5 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 45 mm | 45 mm | 46 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 61 mm | 57 mm | 56 mm | 58 mm | 56 mm | 56 mm | 55 mm |
| Stack | 497 mm | 509 mm | 517 mm | 540 mm | 558 mm | 577 mm | 597 mm |
| Reach | 374 mm | 379 mm | 381 mm | 386 mm | 391 mm | 395 mm | 398 mm |
| Top Tube Length | 513 mm | 526 mm | 535 mm | 551 mm | 564 mm | 577 mm | 589 mm |
| Seat Tube Angle | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 476 mm | 493 mm | 506 mm | 533 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm | 402 mm | 402 mm | 403 mm |
| Wheelbase | 965 mm | 968 mm | 972 mm | 974 mm | 983 mm | 992 mm | 1001 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 687 mm | 711 mm | 724 mm | 749 mm | 774 mm | 792 mm | 811 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
Model Overview
Émonda SLR RSL Frame Set completes the Trek Emonda model. Trek released 251 frames variations of this model so far. You can easily view all of the Trek Emonda frames models from 2021, here.
Model range prices
Trek Émonda ALR Disc Frameset 2021 is the most affordable frame of this model and has a price of 1099$. On the other hand, Trek Émonda SLR H2 Frameset 2021, is the most expensive and costs 3629$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2021 and its price was 3184$. In conclusion, this frame price is 30.22% more expensive than the price of the average Race frame.
Race frames average weight
On a deeper look, we notice that the average weight of a Race frame is 1.41 kg (3.11 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 1.17 kg (2.58 lbs), the Émonda SLR RSL Frame Set model is much lighter than average. In short, the average Race frame weight is 20.51% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 195 cm (5.18 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
