Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset 105, Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV White Carbon
Suspension Fork
Bontrager Race Lite TT, carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano Dura-Ace, bar end control, 10 speed
Cassette
Shimano 105 11-25, 10 speed
Crank
Shimano 105 53/39
Pedals
n/a
Wheels
Rims
Bontrager Select Aero
Tires
Bontrager Race Lite 700x23c
Brakes
Brakes
Alloy dual pivot w/Bontrager Race Lite Aero levers
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Bullhorn w/Race Lite clip-ons
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy
Seat
Saddle
Bontrager Race Lite TT
Seatpost
Bontrager Race Lite TTX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

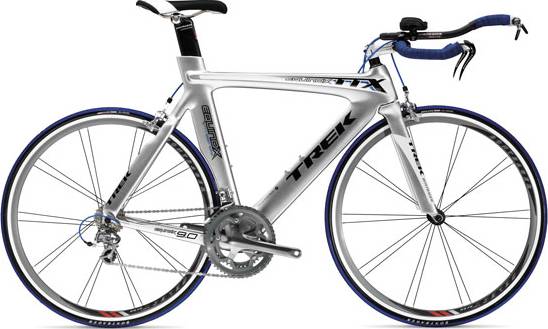

Equinox TTX 9.0 completes the Trek Equinox model. There are 39 bikes that carry this model name. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Road bikes average price
Our math shows that the average cost of a dependable General Road bike is 1915$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Equinox TTX 9.0 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Equinox TTX 9.0 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
