Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Force, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Red Carbon
Suspension Fork
Bontrager Race XXX Lite TT, carbon
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force
Shift Levers
SRAM TT 500, bar end control, 10 speed
Cassette
SRAM PG-1070 11-23, 10 speed
Crank
SRAM Force 53/39
Pedals
n/a
Wheels
Rims
Bontrager Aeolus 5.0 ACC
Tires
Bontrager Race X Lite Pro TT, 700x23c
Brakes
Brakes
Bontrager Speed Limit w/Bontrager Race XXX Lite Aero levers
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite Carbon Bullhorn w/Race Lite clip-ons
Headset
Cane Creek IS-2 Integrated w/cartridge bearings, sealed, alloy
Seat
Saddle
Bontrager Race Lite TT
Seatpost
Bontrager Race XXX Lite TTX, carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

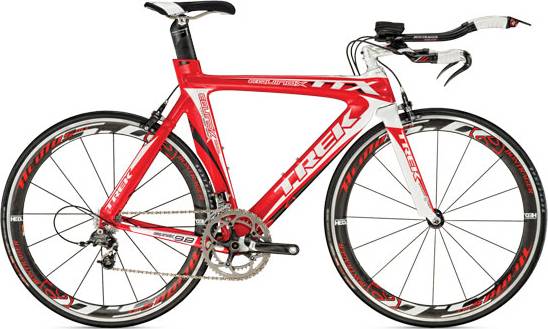

Equinox TTX 9.8 SSL belongs to the Trek Equinox model. 39 bikes variations carry this model name so far. You can easily view all of the Trek Equinox bikes models from 2010, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Road bikes average price
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Equinox TTX 9.8 SSL components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Equinox TTX 9.8 SSL model has 700c carbon wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Equinox TTX 9.8 SSL comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Equinox TTX 9.8 SSL comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
