Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Groupset X1, Race Face -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, E2 tapered head tube, internal derailleur & dropper post routing, PF121, 197mm Stranglehold adjustable thru axle dropouts
Drivetrain
Rear Derailleur
SRAM X1, Type 2
Shift Levers
SRAM X1, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
Race Face Turbine Cinch, 28T
Bottom Bracket
BB86/BB92, 121mm, press-fit
Wheels
Rims
Bontrager Jackalope Tubeless Ready, 80mm rim, 150x15 front, 197x12 rear
Tires
Bontrager Hodag, Tubeless Ready, 120tpi, aramid bead, 27.5x3.8"
Brakes
Brakes
Avid DB 5 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager Rhythm Elite, 31.8mm, 15mm rise
Headset
FSA IS-2, E2, sealed alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
Model Overview

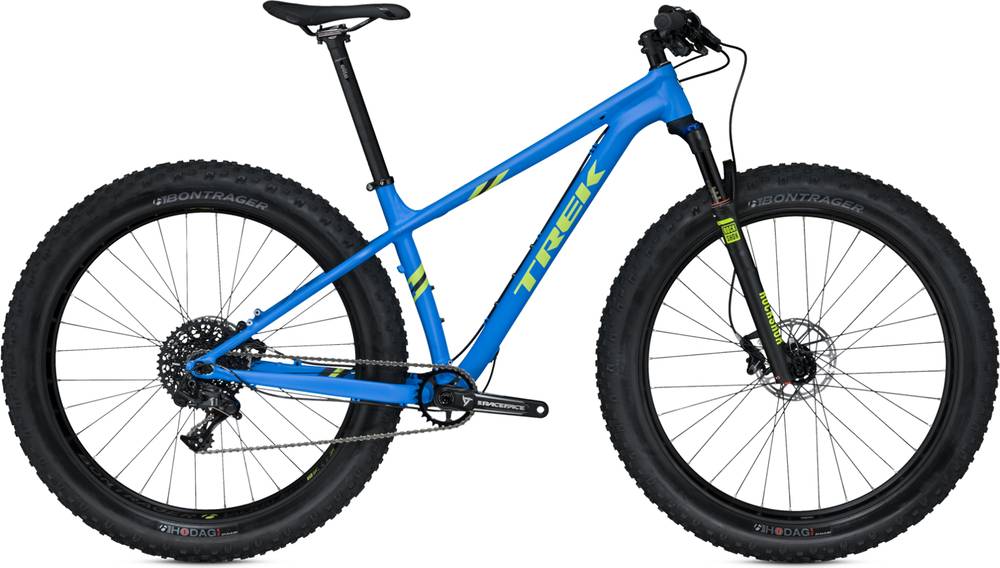

Farley 9 is part of the Trek Farley model. There are 70 bikes that carry this model name. Take a sneak peek at all Trek Farley bikes models from 2016, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fatbike bikes
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Wheels
As for the wheels, Trek Farley 9 2016, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Farley 9 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Farley 9 comes in 4 sizes, that range from 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
