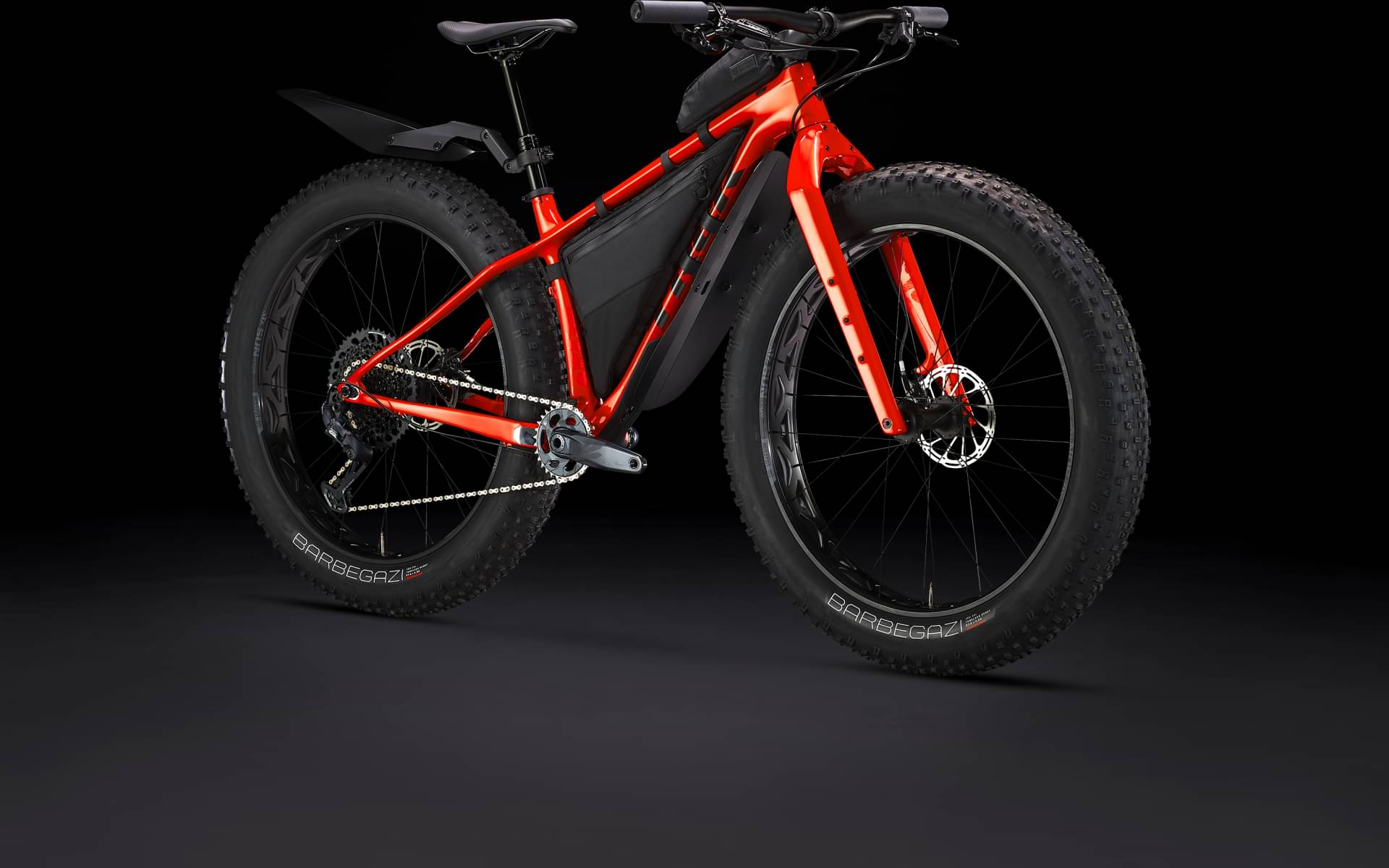

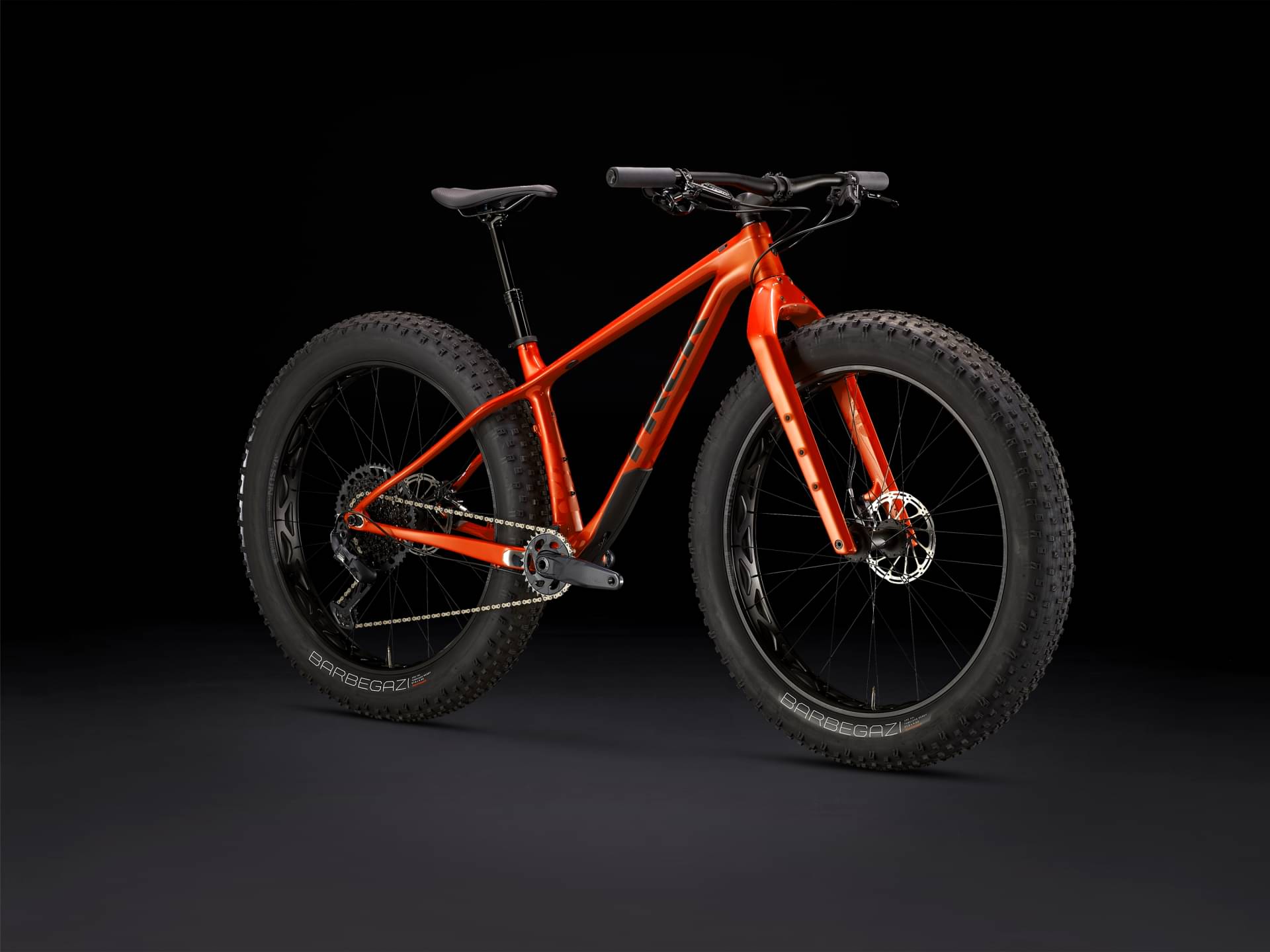

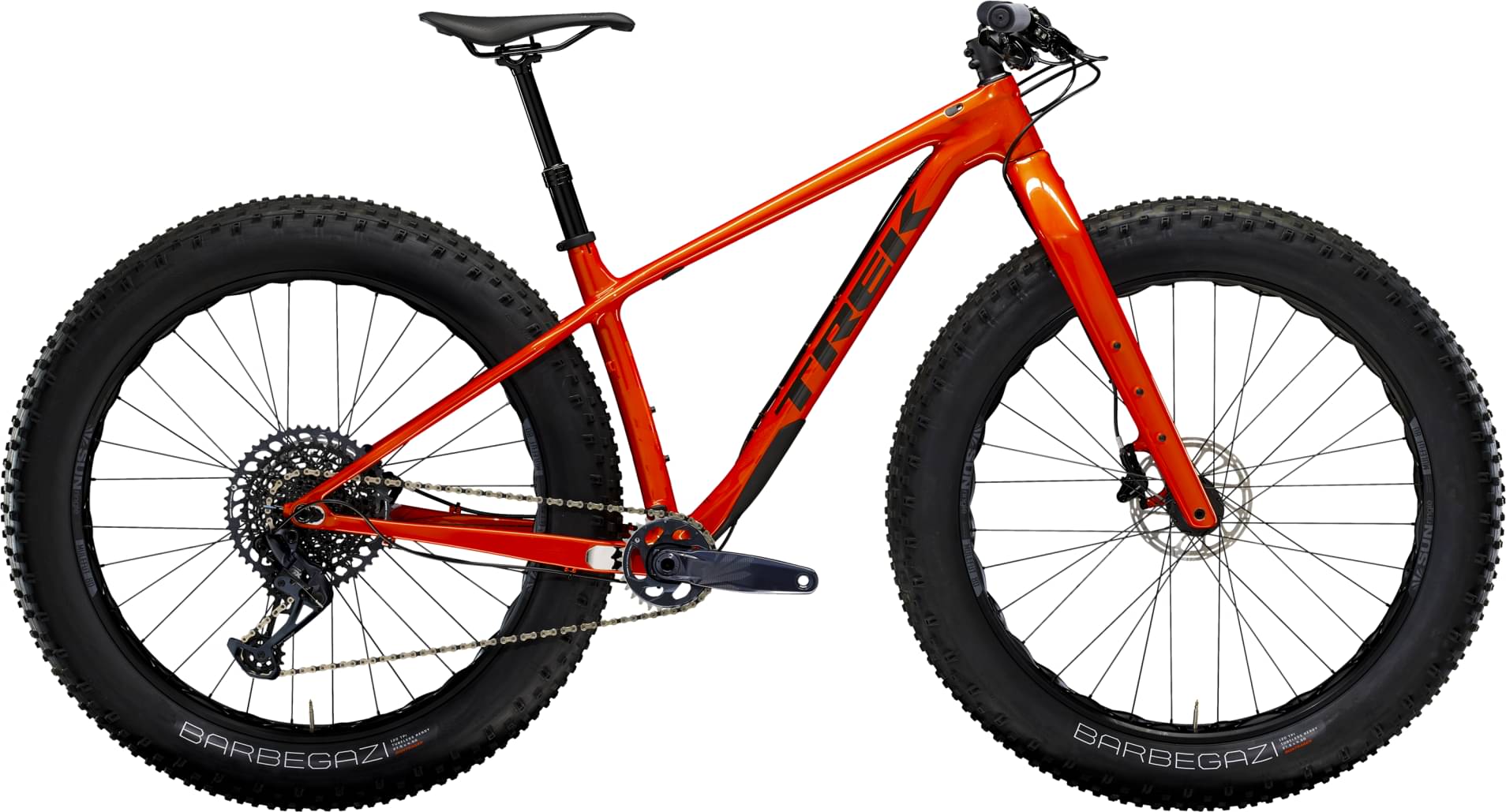

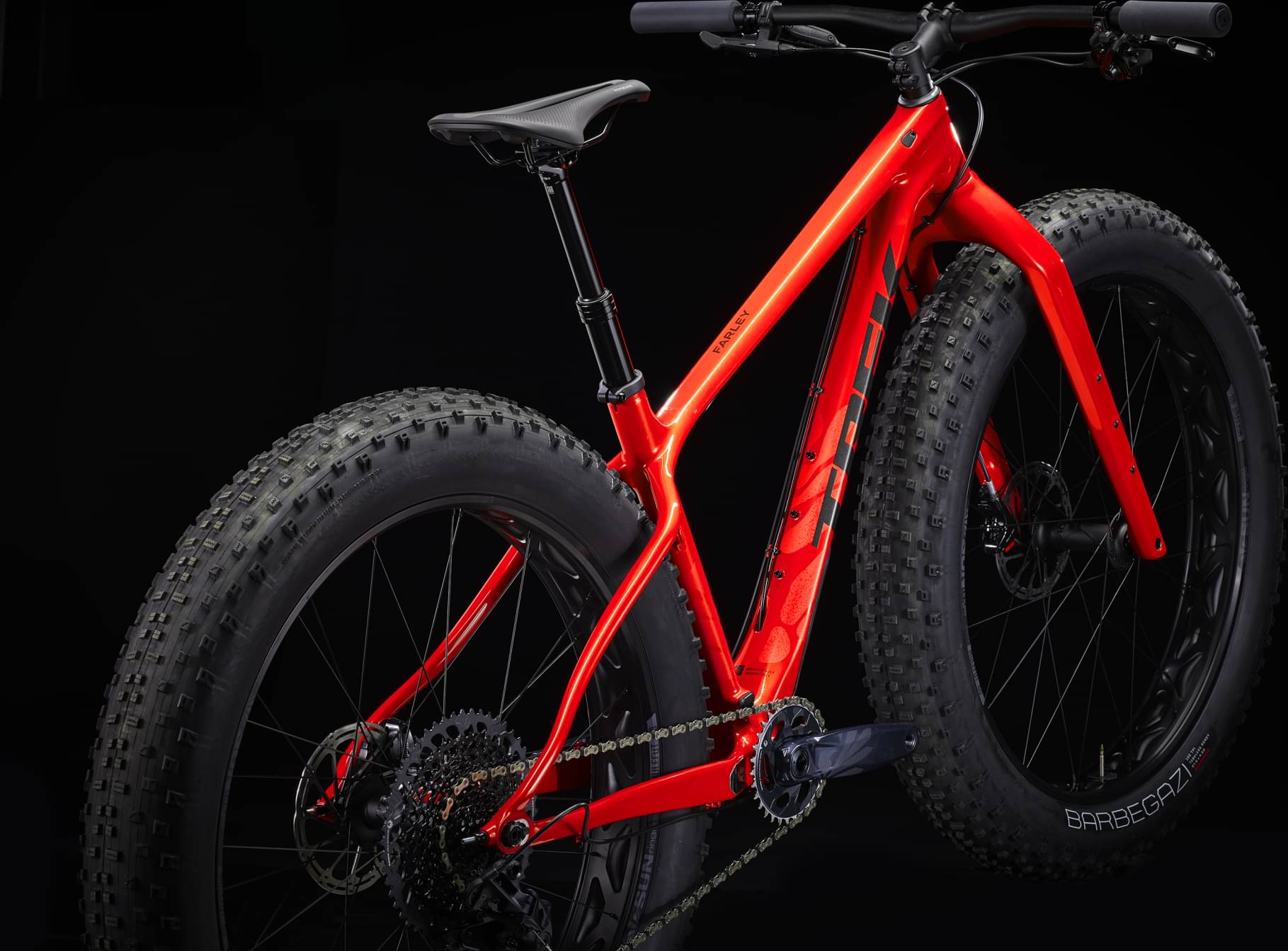

Trek Farley 9.6 2024
2024 Mountain
Estimate price |
3,699$
Weight | 13.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Groupset GX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 178cm
19.5"
175cm - 189cm
21.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

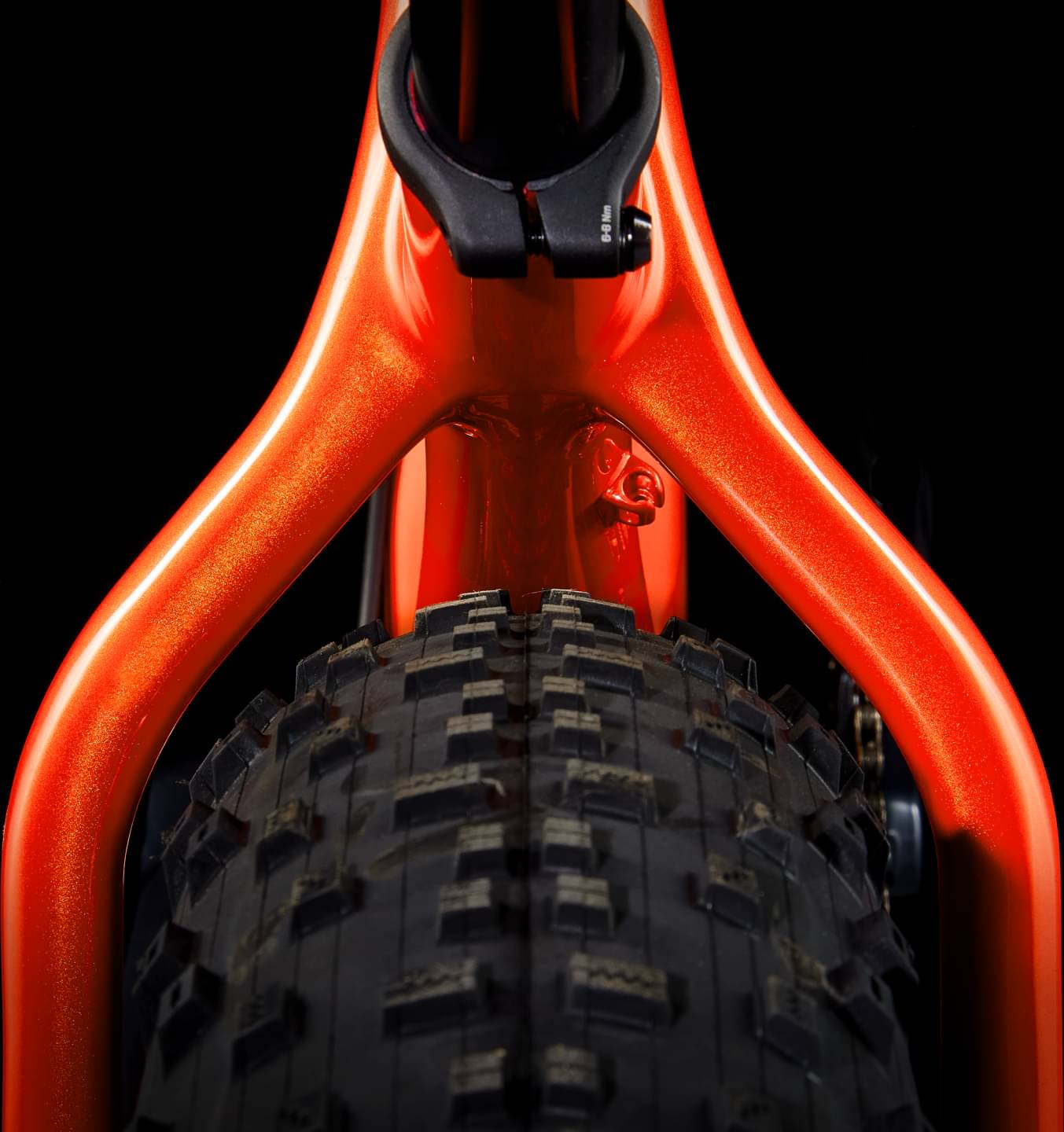

OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, PressFit 121mm BB, 197x12mm adjustable horizontal sliding dropouts
Suspension Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle
Drivetrain

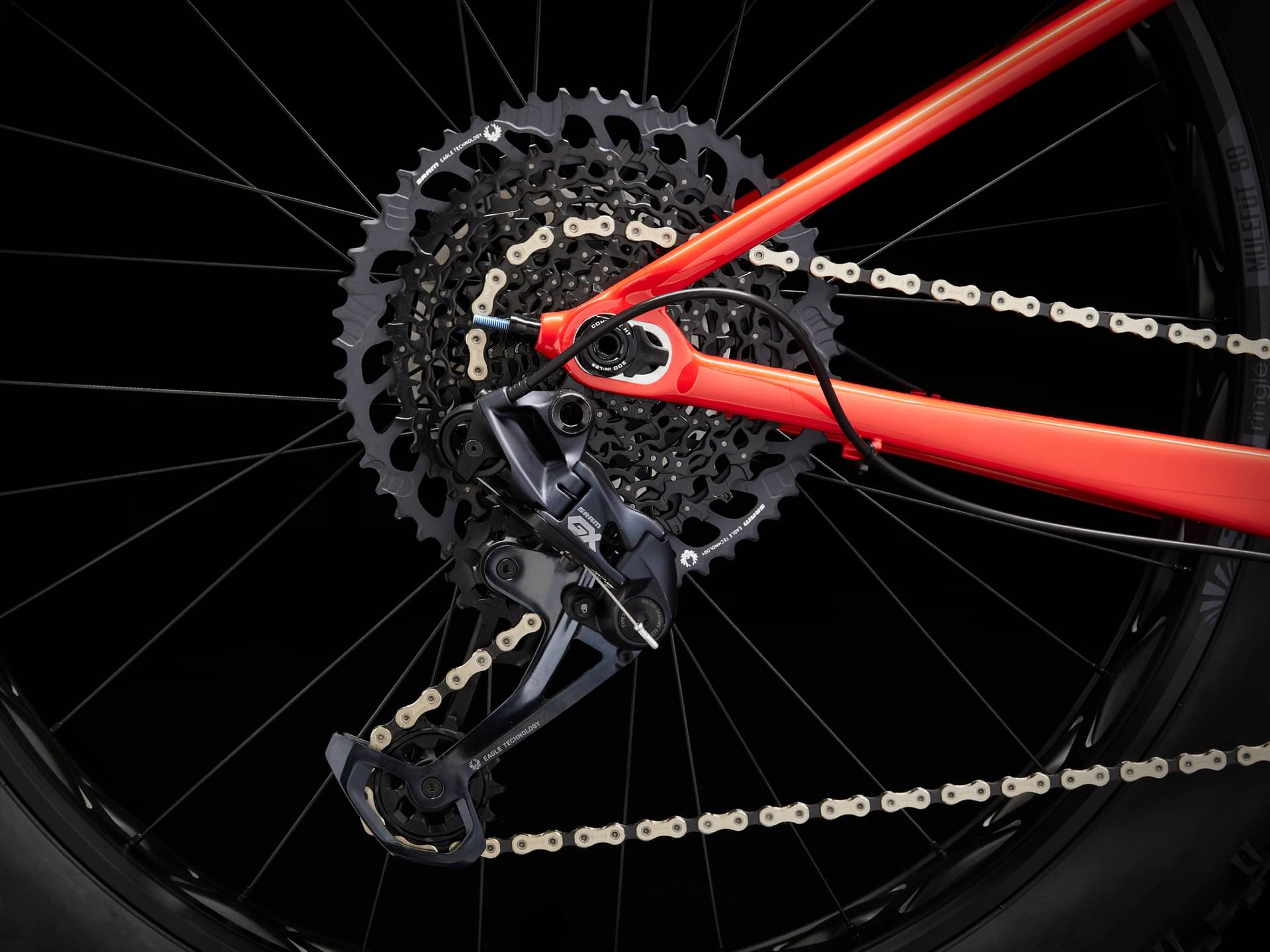

Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle, 12 speed
Cassette
SRAM Eagle XG-1275, 10-52, 12 speed

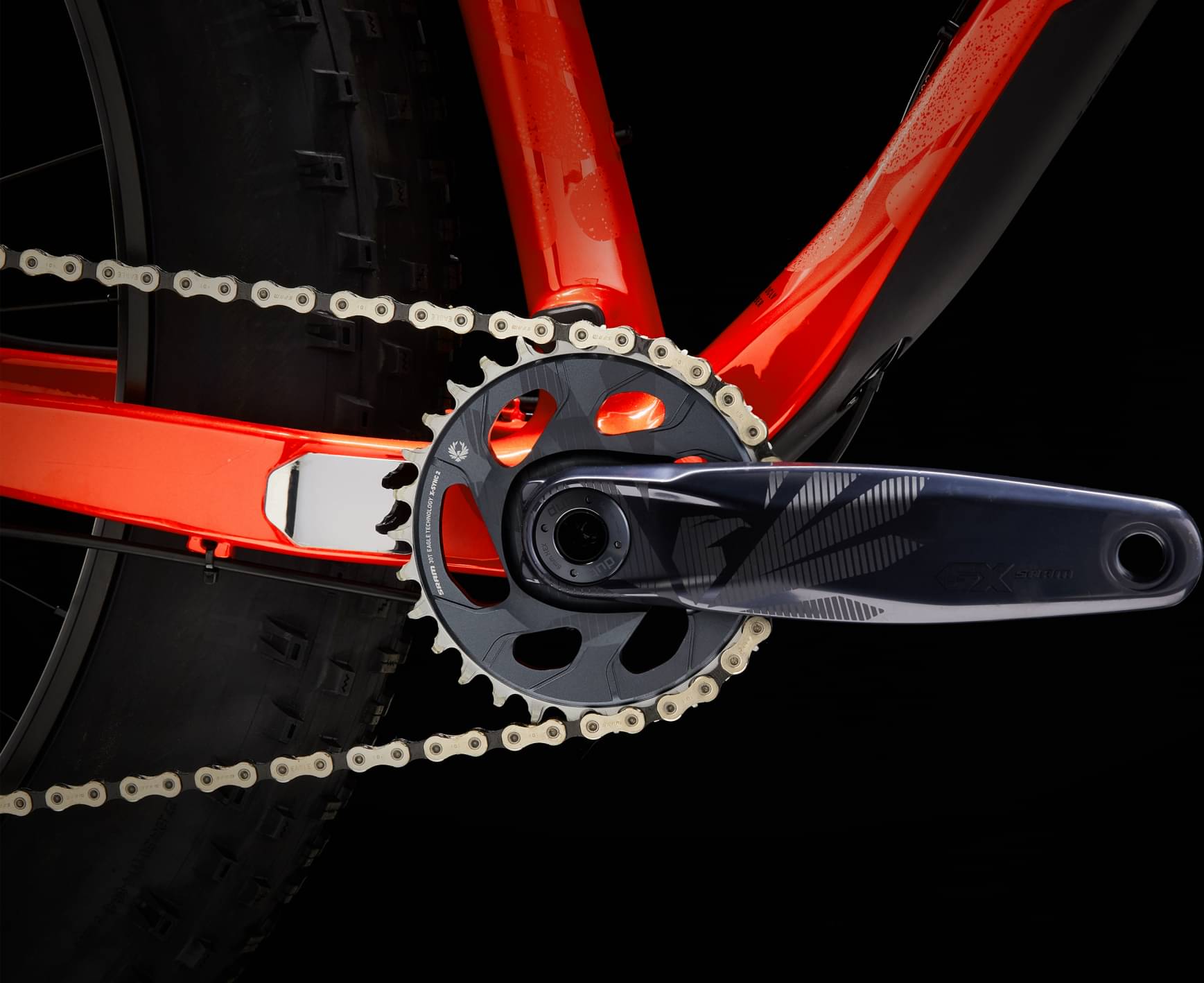

Crank
Size: S, M, SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 170mm length; Size: L, XL, SRAM GX Eagle, DUB, 30T alloy FAT 5 ring, 175mm length

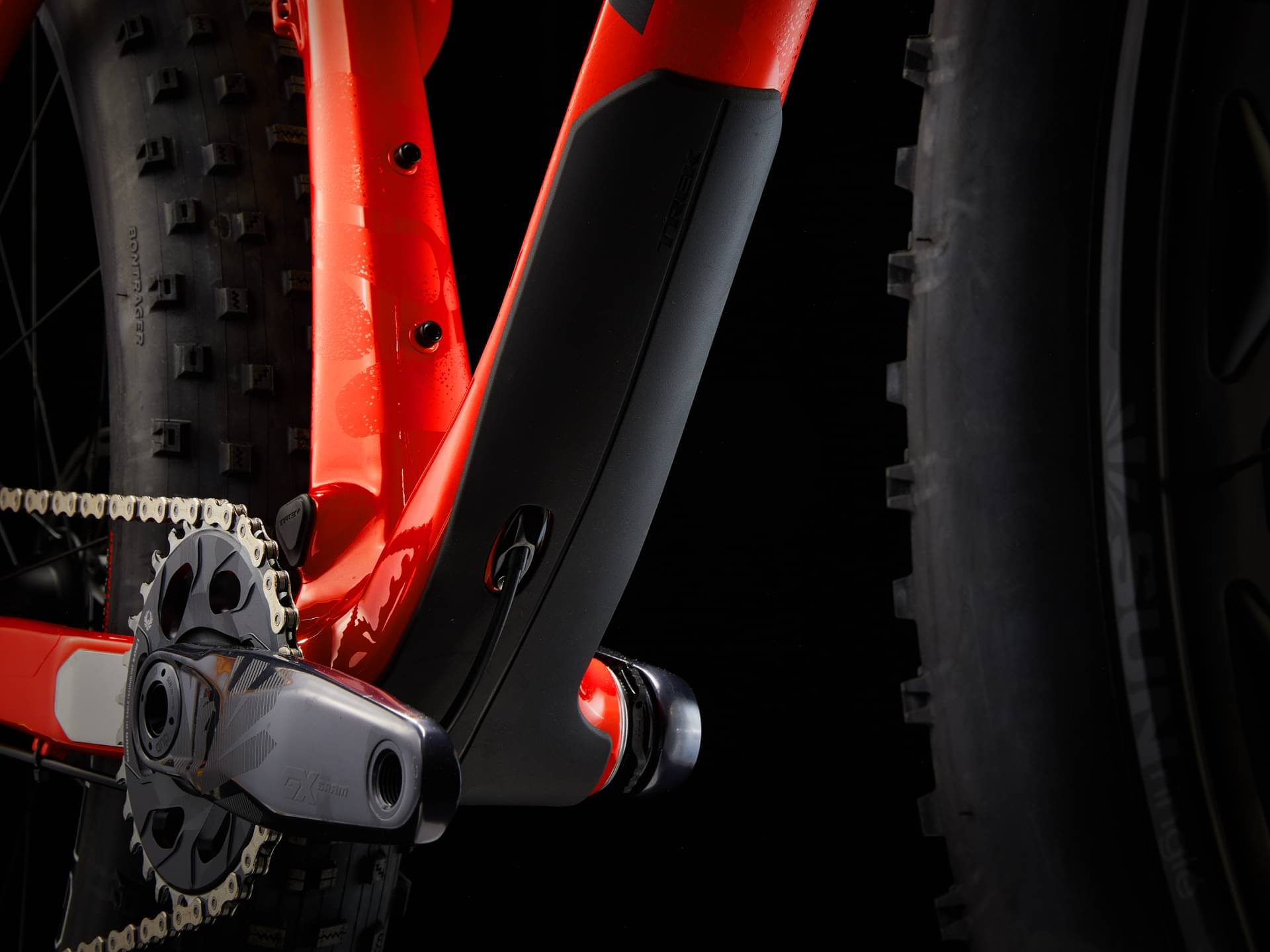

Bottom Bracket
SRAM DUB, 121mm, PressFit
Chain
SRAM GX Eagle, 12 speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD driver, 197x12 mm thru axle
Rims
SUNRingle Mulefut 80 SL, 32-hole cutout
Tires

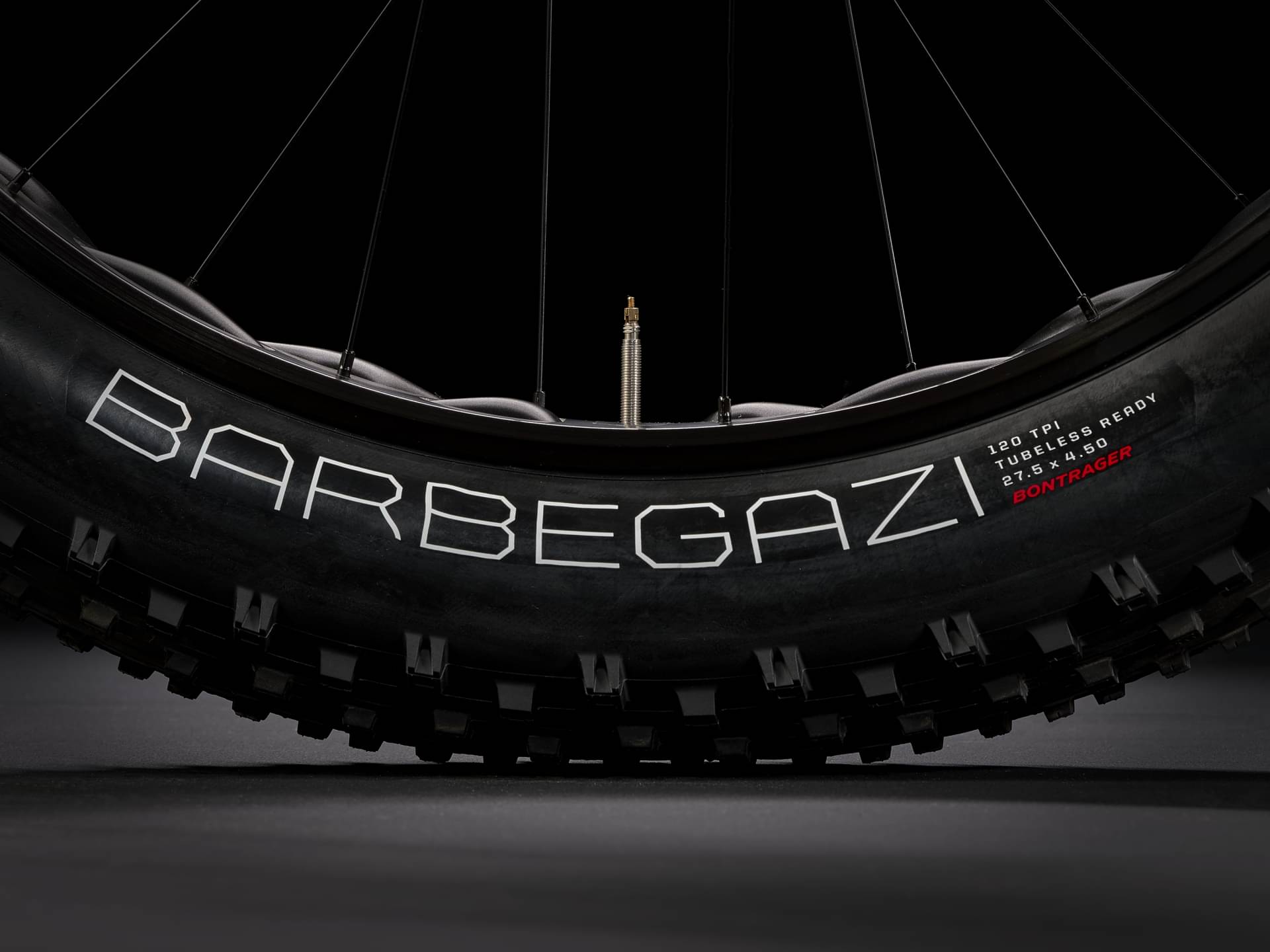

Bontrager Barbegazi Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x4.50''
Brakes

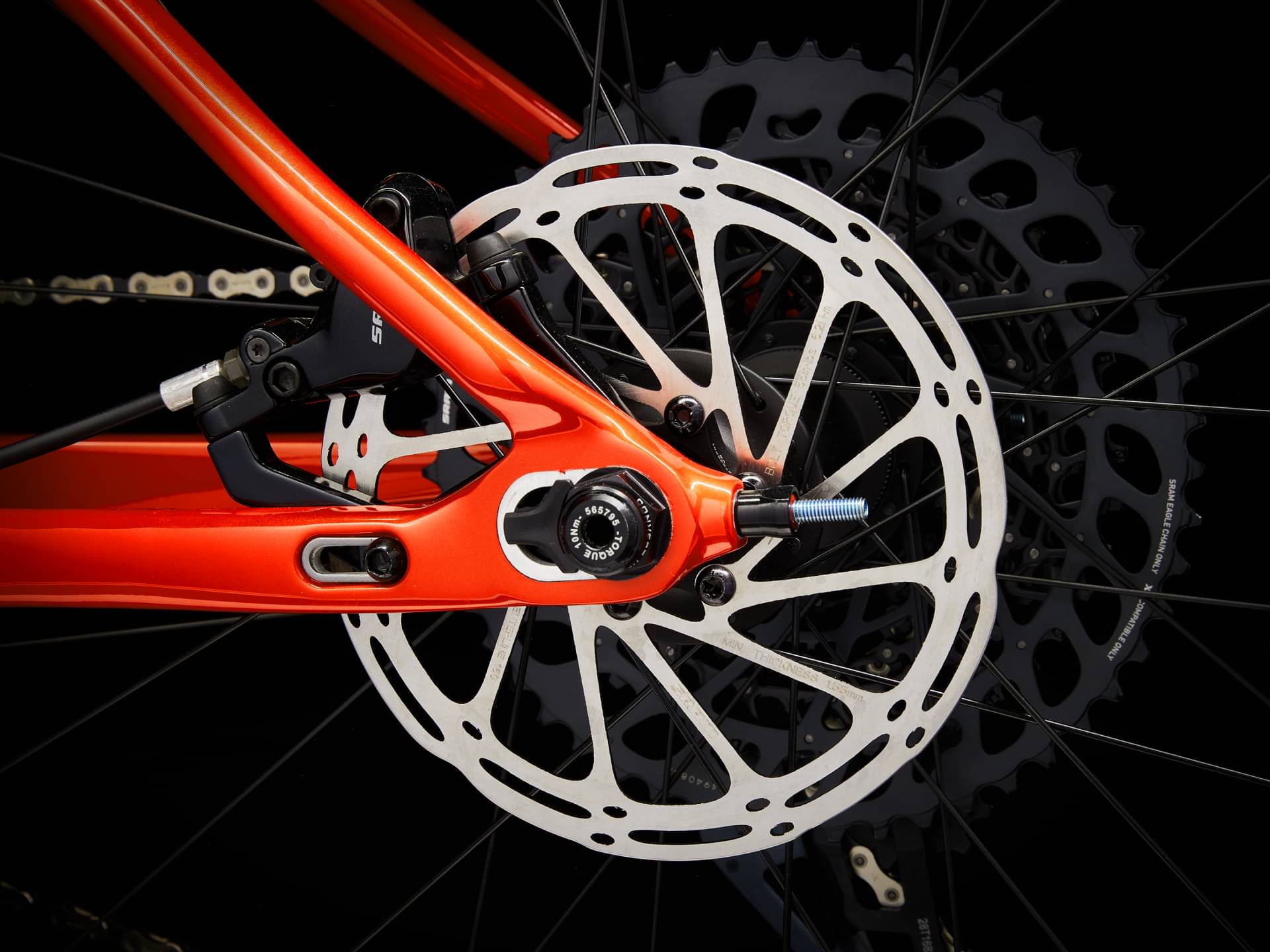

Brakes
SRAM Level TL hydraulic disc
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

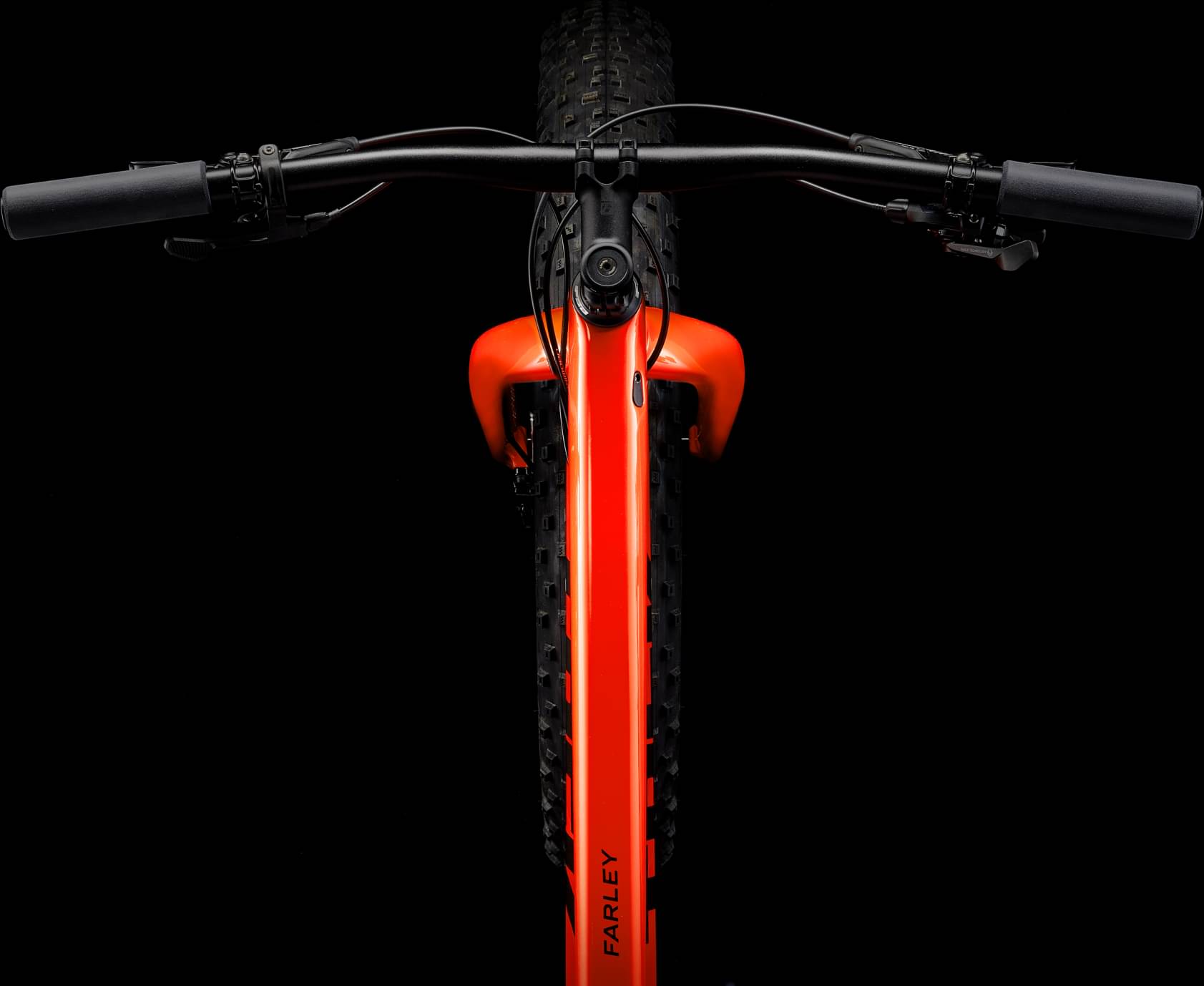

Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
ESI Chunky
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Elite, austenite rails, 145mm width
Seatpost
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 120mm travel, internal routing, 31.6mm, 403mm length; Size: L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.47 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 645 mm | 672 mm | 711 mm | 724 mm |
| Rake | 50 mm | 50 mm | 51 mm | 51 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 595 mm | 595 mm | 613 mm | 613 mm |
| Reach | 377 mm | 404 mm | 435 mm | 448 mm |
| Top Tube Length | 561 mm | 588 mm | 625 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1086 mm | 1113 mm | 1152 mm | 1165 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 757 mm | 751 mm | 770 mm | 768 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
About this model
Farley 9.6 is part of the Trek Farley model. 70 bikes variations carry this model name so far. You can easily view all of the Trek Farley bikes models from 2024, here.
Model range prices
Trek Farley 5 2024 is the cheapest bike model and costs 2199$. Trek Farley 9 2024 is the most expensive one and costs 3999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Fatbike bikes
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3699$. If we compare this with the average Fatbike bike cost we notice that the price is 112.22% more expensive.
Fatbike bikes average weight
If we make a quick analysis of the average weight of a Fatbike bike, we get 14.42 kg (31.79 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.11 kg (28.9 lbs), Trek bike is a bit lighter than average. In conclusion, the average Fatbike bike weighs 9.99% more than Farley 9.6.

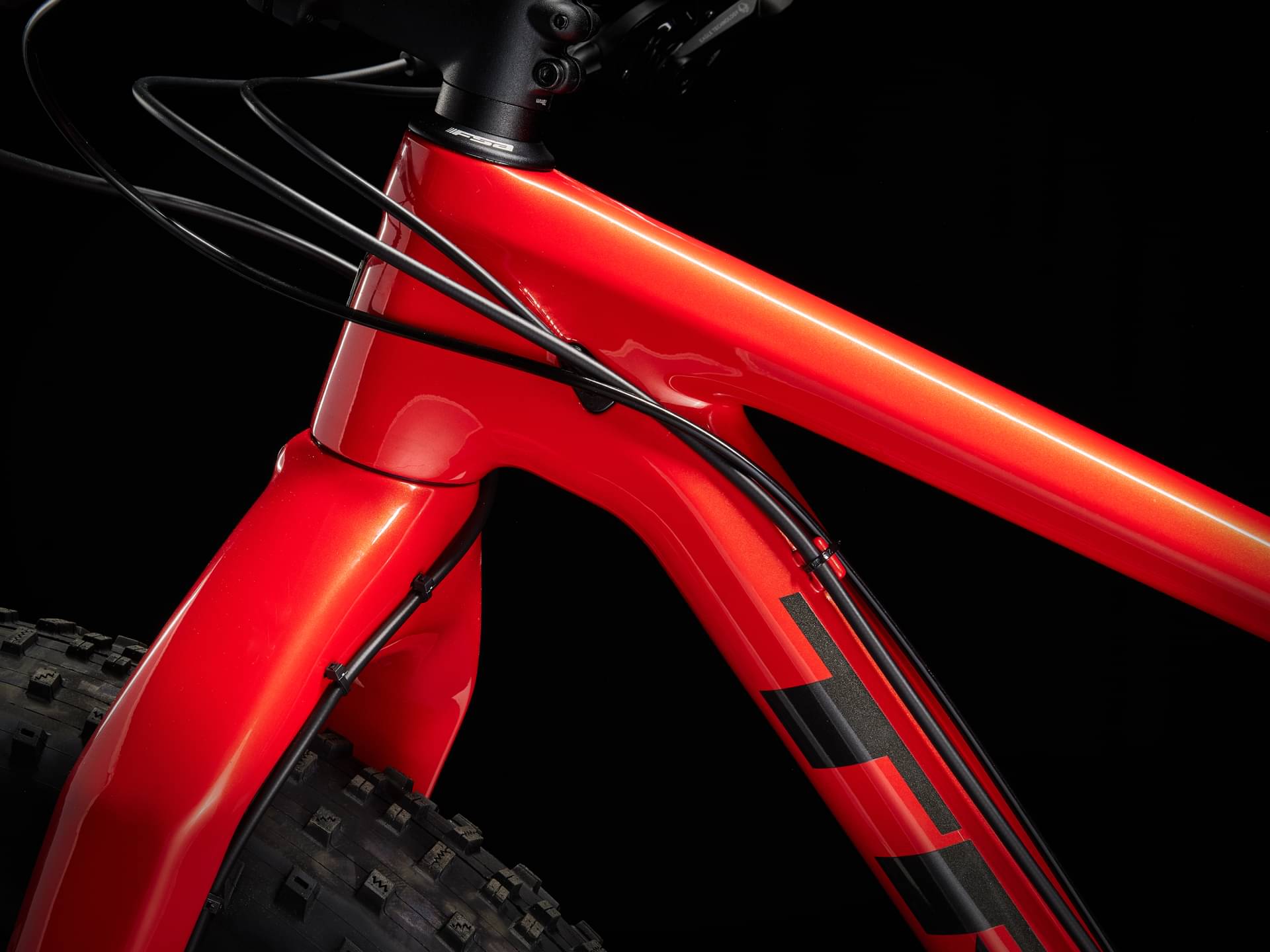

Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Farley 9.6 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Farley 9.6 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Farley 9.6 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Trek Farley 9.6 bike has 4 sizes, in the range of 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Trek Farley 9.6 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
