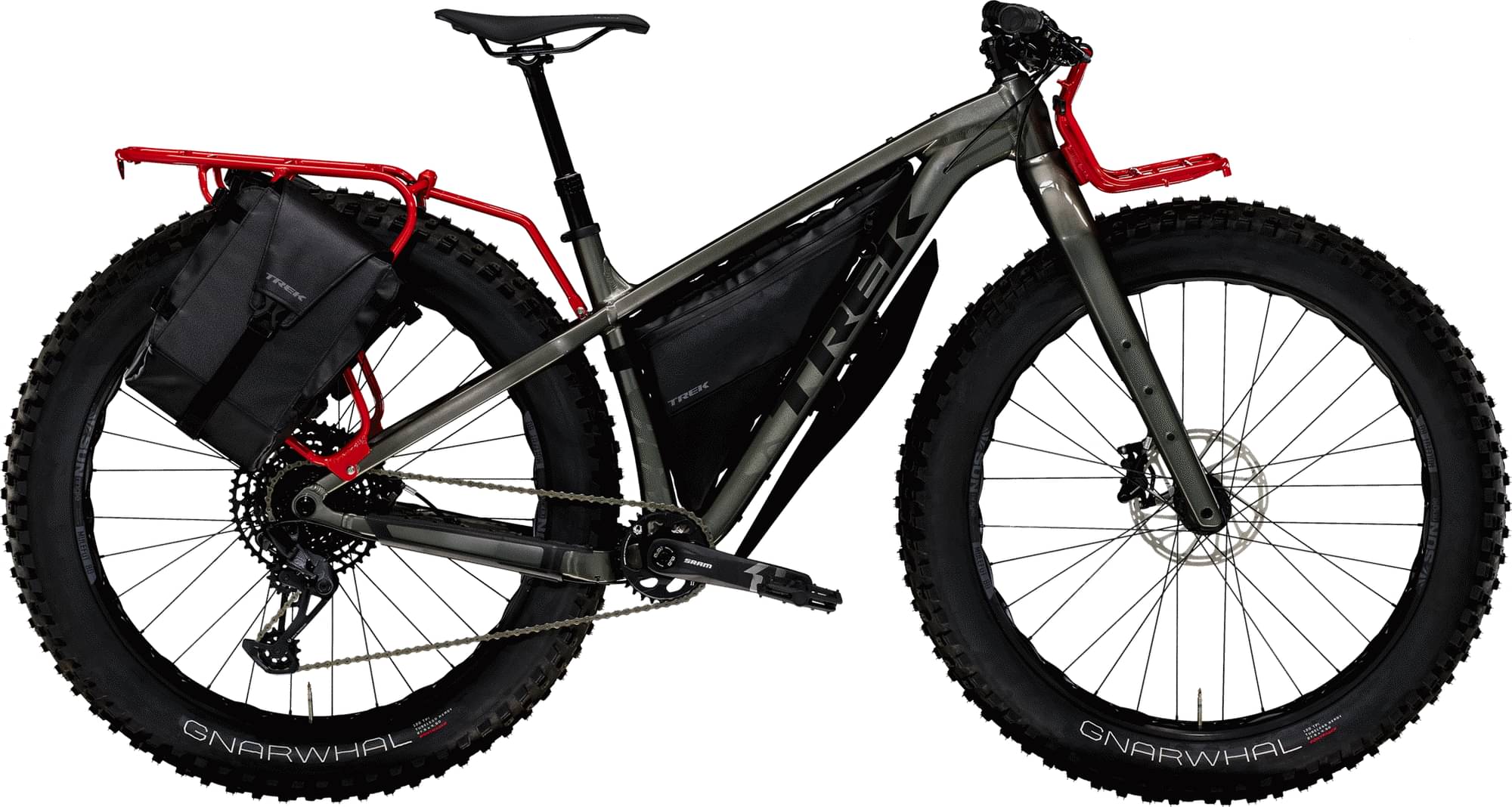

Trek Farley 9 Winter Edition 2023
2023 Mountain
Estimate price |
3,999$
Weight | 18.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Groupset GX Eagle, X1 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 178cm
18.5"
175cm - 189cm
19.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm
Suspension Fork
Farley carbon, tapered alloy steerer, crown rack mounts, lower leg cage mounts, 150x15mm thru axle
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle, 12 speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 speed
Crank
Size: S, M, L, SRAM X1 1000 Eagle, DUB, 30T alloy FAT 5 ring, 170mm length; Size: XL, SRAM X1 1000 Eagle, DUB, 30T alloy FAT 5 ring, 175mm length
Bottom Bracket
SRAM DUB, 100mm, BSA threaded
Chain
SRAM NX Eagle, 12 speed
Pedals
VP-536 nylon platform
Wheels
Front Hub
Bontrager alloy, sealed bearing, 6-bolt, 15x150mm thru axle
Rear Hub
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano 10 freehub, 197x12mm thru axle
Rims
SUNRingle Mulefut 80 SL, 32-hole cutout
Tires
Bontrager Gnarwhal Team Issue, Tubeless Ready, Inner Strength sidewalls, studdable, aramid bead, 120 tpi, 27.5x4.50''
Brakes
Brakes
SRAM Level Bronze 4-piston hydraulic disc
Cockpit
Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Elite, austenite rails, 145mm width
Seatpost
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 655 mm | 689 mm | 724 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 586 mm | 596 mm | 610 mm | 623 mm |
| Reach | 397 mm | 427 mm | 457 mm | 492 mm |
| Top Tube Length | 562 mm | 595 mm | 630 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1094 mm | 1128 mm | 1163 mm | 1204 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 727 mm | 737 mm | 757 mm | 777 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
Model Overview
Farley 9 Winter Edition belongs to the Trek Farley model. There are 70 bikes that carry this model name. Take a sneak peek at all Trek Farley bikes models from 2023, by clicking here.
Model range prices
Trek Farley 5 2023 is the most affordable bike of this model and has a price of 2199$. On the other hand, Trek Farley 9 Winter Edition 2023, is the most expensive and costs 3999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3999$. Comparing the average cost of a Fatbike bike to this one, you will see that Farley 9 Winter Edition price is 129.43% more expensive.
Average weight for Fatbike bikes
Fatbike bikes weigh an average of 14.42 kg (31.79 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 18.3 kg (40.34 lbs), the Farley 9 Winter Edition model is much heavier than average. In conclusion, the average Fatbike bike weighs 26.91% less than Farley 9 Winter Edition.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Farley 9 Winter Edition components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Farley 9 Winter Edition bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Farley 9 Winter Edition has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Farley 9 Winter Edition comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Farley 9 Winter Edition. Therefore, climbing or descending will be a breeze.
