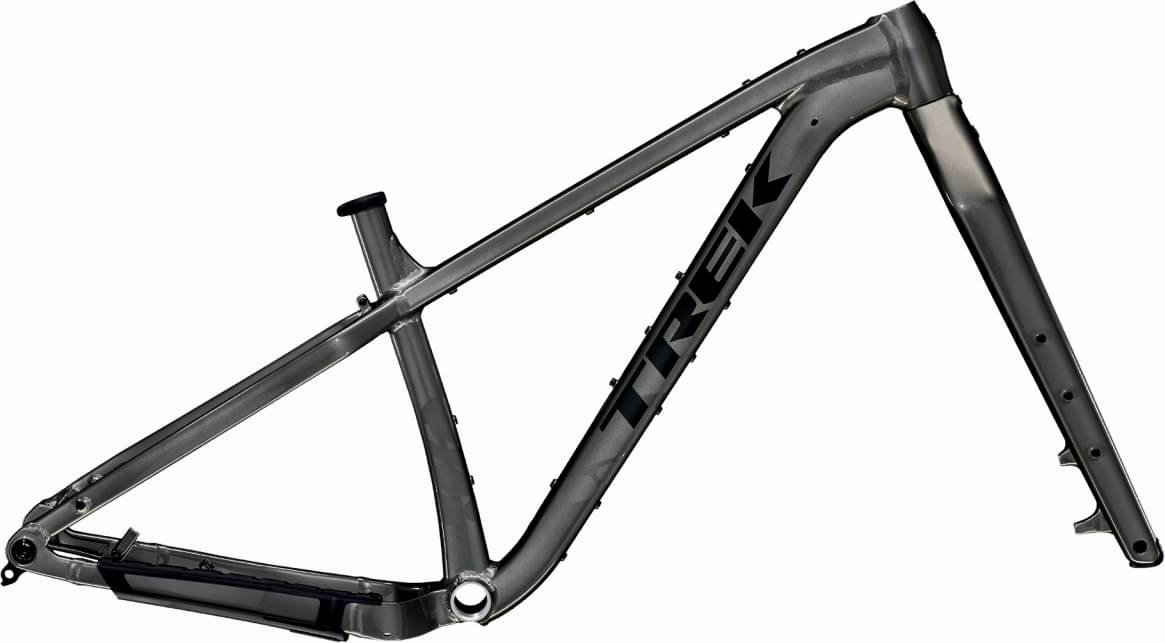

Trek Farley AL Frameset 2024
2024 Mountain
Estimate price |
1,499$
Weight | 3.95 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 27.5"
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 178cm
18.5"
175cm - 189cm
19.5"
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, top tube bag mounts, strapless full frame bag mounts, downtube fender mount, lower downtube accessory mount, seat stay rear rack mounts, internal rear derailleur & dropper post routing, 100mm threaded BB, UDH, 197x12mm
Drivetrain
Bottom Bracket
BSA, 100mm, threaded
Cockpit
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 655 mm | 689 mm | 724 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 43 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 586 mm | 596 mm | 610 mm | 623 mm |
| Reach | 397 mm | 427 mm | 457 mm | 492 mm |
| Top Tube Length | 562 mm | 595 mm | 630 mm | 669 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1094 mm | 1128 mm | 1163 mm | 1204 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 727 mm | 737 mm | 757 mm | 777 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 166 cm | 178 cm | 189 cm | 195 cm |
About this model
Farley AL Frameset completes the Trek Farley model. Trek released 70 frames variations of this model so far. Take a sneak peek at all Trek Farley frames models from 2024, by clicking here.
Model range prices
Trek Farley AL Frameset 2024 is the most affordable frame of this model and has a price of 1499$. On the other hand, Trek Farley C Frameset 2024, is the most expensive and costs 2599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike frames average price
If you want to purchase a solid Fatbike frame, it is important to know that the average cost is 1277$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fatbike frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2024 and its price was 1499$. In conclusion, this frame price is 17.38% more expensive than the price of the average Fatbike frame.
Fatbike frames average weight
On a deeper look, we notice that the average weight of a Fatbike frame is 2.75 kg (6.06 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Farley AL Frameset it’s weighing 3.95 kg (8.71 lbs). At this weight, is much heavier than average. To sum up, it’s 43.64% heavier than the average weight of Fatbike frames.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Sizes
Farley AL Frameset comes in 4 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
