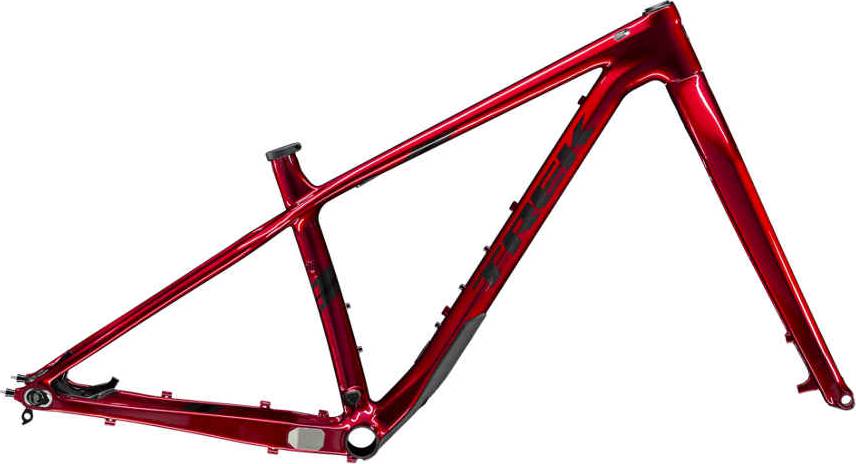

Trek Farley C Frameset 2019
2019 Mountain
Estimate price |
2,199$
Weight | 2.31 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, Carbon Armor, PF121, 197mm Stranglehold adjustable thru axle dropouts
Suspension Fork
Bontrager Haru Pro, OCLV Carbon lowers, carbon tapered steerer, 100mm suspension corrected, 15x150mm
Drivetrain
Bottom Bracket
BB86/BB92, 121mm, press-fit
Cockpit
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.46 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 646 mm | 673 mm | 711 mm | 724 mm |
| Rake | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 600 mm | 600 mm | 619 mm | 619 mm |
| Reach | 385 mm | 412 mm | 443 mm | 456 mm |
| Top Tube Length | 568 mm | 595 mm | 632 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1080 mm | 1107 mm | 1145 mm | 1158 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 766 mm | 752 mm | 780 mm | 818 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Farley C Frameset completes the Trek Farley model. Trek released 70 frames variations of this model so far. You can easily view all of the Trek Farley frames models from 2019, here.
Model range prices
The most economical model, the Trek Farley AL Frameset 2019 has a starting price of 1069$. Trek Farley EX Frameset 2019 on the other hand is the most expensive at 3299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fatbike frames
According to our calculations, the average cost of a Fatbike frame that is reliable is 1277$. However, you could also get a good Fatbike frame even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Trek released this model in 2019, its price was 2199$. Doing a quick comparison, we notice that Farley C Frameset price is 72.2% more expensive than the average cost of a Fatbike frame.
Fatbike frames average weight
On a deeper look, we notice that the average weight of a Fatbike frame is 2.73 kg (6.02 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 2.31 kg (5.09 lbs), Trek frame is much lighter than average. In other words, this model is 18.18% lighter than the average Fatbike frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Farley C Frameset has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Farley C Frameset comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
