Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon, tapered head tube, internal derailleur & dropper post routing, 197x12mm adjustable horizontal sliding dropouts
Suspension Fork
Bontrager Haru Pro, tapered carbon steerer, OCLV Carbon lowers, 490mm axle-to-crown, 15x150mm thru axle
Cockpit
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.47 mm | 1.41 mm | 1.37 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 645 mm | 672 mm | 711 mm | 724 mm |
| Rake | 50 mm | 50 mm | 51 mm | 51 mm |
| Trail | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 595 mm | 595 mm | 613 mm | 613 mm |
| Reach | 377 mm | 404 mm | 435 mm | 448 mm |
| Top Tube Length | 561 mm | 588 mm | 625 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1086 mm | 1113 mm | 1152 mm | 1165 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 757 mm | 751 mm | 770 mm | 768 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

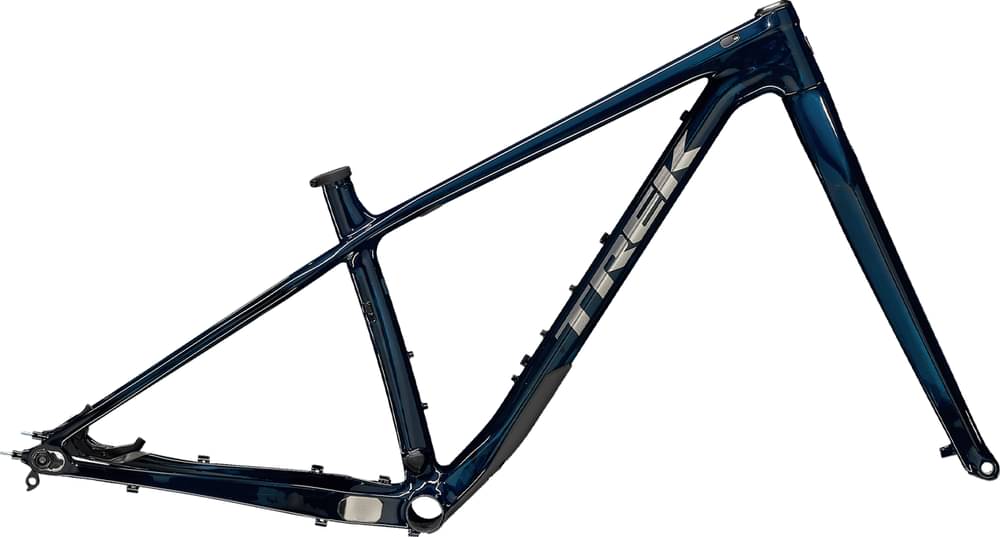

Farley C Frameset is a Trek Farley model. Trek released 70 frames variations of this model so far. Take a sneak peek at all Trek Farley frames models from 2021, by clicking here.
Model range prices
Trek Farley AL Frameset 2021 is the most economical model, with a starting price of 999$. Trek Farley EX Frameset 2021 on the other hand costs 3299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike frames average price
According to our math, the average price for a trustworthy Fatbike frame is 1277$. However, you could also get a good Fatbike frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
This frame was released in 2021 and its price was 2199$. In conclusion, this frame price is 72.2% higher than the price of the average Fatbike frame.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Farley C Frameset components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
Trek Farley C Frameset frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
