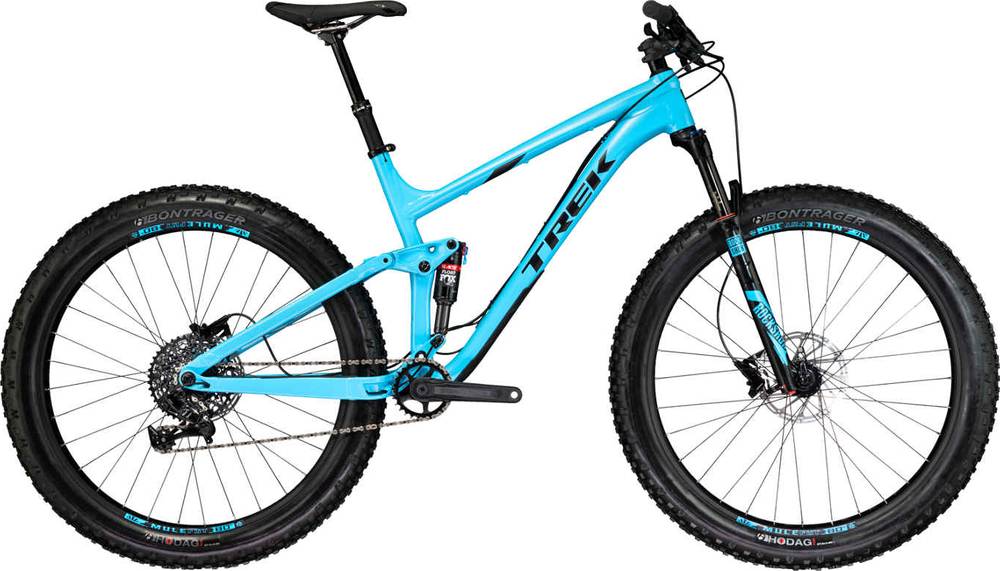

Trek Farley EX 8 2018
2018 Mountain
Estimate price |
3,499$
Weight | 15.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox Bluto RL
-
Groupset GX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, internal derailleur & dropper routing, down tube guard, 120mm travel
Suspension Fork
RockShox Bluto RL, Solo Air, TurnKey lockout, E2 tapered steerer, 150x15mm Maxle Lite, 120mm travel
Rear Shock
FOX Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 7.25" x 1.875?
Drivetrain
Rear Derailleur
SRAM GX, Roller Bearing Clutch
Front Derailleur
N/A
Shift Levers
SRAM GX, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
Race Face Aeffect, 28T Direct Mount Narrow-Wide
Bottom Bracket
PF121
Chain
SRAM PC-1110
Chain Guide
N/A
Pedals
Not included
Wheels
Front Hub
Bontrager alloy sealed bearing, 150x15
Rear Hub
Bontrager alloy sealed bearing, 197x12 rear
Rims
SUNringlé Mulefut 80 SL 32-hole cutout, tubeless strips and valves sold separately
Tires
Bontrager Hodag, Tubeless Ready, Inner Strength sidewalls, aramid bead, 27.5x3.80?
Brakes
Brakes
SRAM Level T hydraulic disc
Brake Levers
SRAM Level T
Cockpit
Stem
Bontrager Line, 35mm, 0 degree
Handlebar
Bontrager Line, 35mm, 15mm rise, 750mm width
Grips
Bontrager Race Lite, lock-on
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Drop Line 125, internal routing, 31.6mm (15.5: Drop Line 100)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.46 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 646 mm | 673 mm | 711 mm | 724 mm |
| Rake | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 600 mm | 600 mm | 619 mm | 619 mm |
| Reach | 385 mm | 412 mm | 443 mm | 456 mm |
| Top Tube Length | 568 mm | 595 mm | 632 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 419 mm | 470 mm | 521 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1080 mm | 1107 mm | 1145 mm | 1158 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 766 mm | 752 mm | 780 mm | 818 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
Model Overview
Farley EX 8 is part of the Trek Farley model. There are 70 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek Farley 5 2018 is the cheapest bike model and costs 1729$. Trek Farley Ex 9.8 2018 is the most expensive one and costs 5499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fatbike bikes
If you want an acceptable Fatbike bike you should know that the average price is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 3499$. If we compare this with the average Fatbike bike cost we notice that the price is 100.75% higher.
Fatbike bikes average weight
Fatbike bikes have an average weight of 13.2 kg (29.1 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Farley EX 8 has a weight of 15.88 kg (35.01 lbs). In short, the average Fatbike bike weight is 20.3% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the RockShox Bluto RL model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Farley EX 8 has a rear shock with a travel of 120mm. The model FOX Performance Float EVOL is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Farley EX 8 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Farley EX 8 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Trek Farley EX 8 includes a dropper post. Therefore, climbing or descending will be a breeze.
