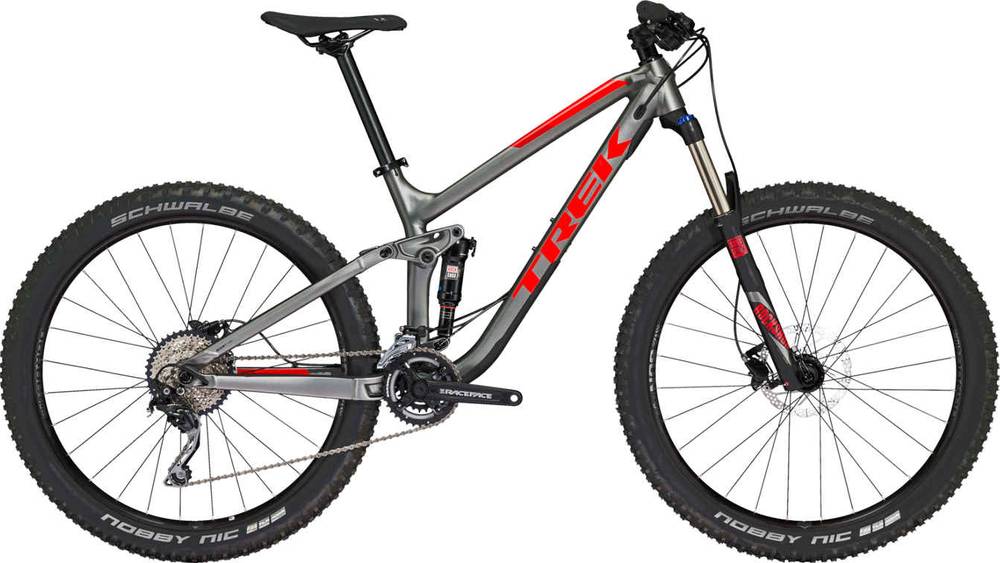

Trek Fuel EX 5 27.5 Plus 2018
2018 Mountain
Estimate price |
2,249$
Weight | 14.97 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, E2 tapered steerer, G2 Geometry w/51mm offset, Boost110, 140mm travel
Rear Shock
RockShox Deluxe RL, 210mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Front Derailleur
Shimano Deore M6020
Shift Levers
Shimano Deore M6000, 10 speed
Cassette
Shimano HG500, 11-42, 10 speed
Crank
Race Face Ride, 36/22
Bottom Bracket
PF92
Chain
KMC X10
Chain Guide
N/A
Pedals
Not included
Wheels
Front Hub
Formula Alloy DC511, Boost110
Rear Hub
Bontrager sealed bearing alloy axle, Boost148
Rims
SUNringlé Duroc 40 SL 28-hole, tubeless strips and valves included
Tires
Schwalbe Nobby Nic Performance w/Addix compound, Tubeless, 27.5x2.80?
Brakes
Brakes
Shimano M315 hydraulic disc
Brake Levers
Shimano M315 hydraulic
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree, 60mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager Race
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 17.5" High | 18.5" High | 19.5" High | 21.5" High | 23" High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.42 mm | 1.37 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 693 mm | 728 mm | 745 mm | 760 mm | 786 mm | 819 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 601 mm | 601 mm | 601 mm | 601 mm | 610 mm | 642 mm |
| Reach | 388 mm | 422 mm | 439 mm | 454 mm | 476 mm | 496 mm |
| Top Tube Length | 539 mm | 574 mm | 591 mm | 606 mm | 633 mm | 667 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1119 mm | 1154 mm | 1171 mm | 1186 mm | 1212 mm | 1245 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm | 26 mm |
| Standover Height | 753 mm | 733 mm | 728 mm | 723 mm | 733 mm | 773 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Fuel EX 5 27.5 Plus completes the Trek Fuel model. Trek released 277 bikes variations of this model so far. You can easily view all of the Trek Fuel bikes models from 2018, here.
Model range prices
The most economical model, the Trek Fuel EX Jr 2018 has a starting price of 1889$. Trek Fuel EX 9.9 29 2018 on the other hand is the most expensive at 8899$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 2249$. Comparing the average cost of a Trail bike to this one, you will see that Fuel EX 5 27.5 Plus price is 22.81% smaller.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Fuel EX 5 27.5 Plus it’s weighing 14.97 kg (33 lbs). At this weight, is much heavier than average. To sum up, it’s 15.33% heavier than the average weight of Trail bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Fuel EX 5 27.5 Plus components
Fork
The Fuel EX 5 27.5 Plus comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Fuel EX 5 27.5 Plus has a rear shock with a travel of 130mm. The model RockShox Deluxe RL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Fuel EX 5 27.5 Plus 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
