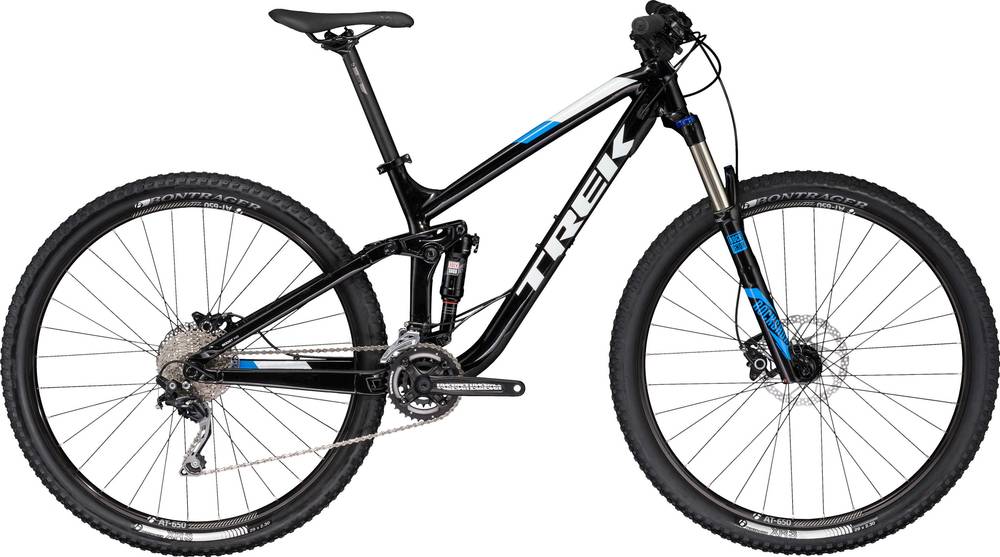

Trek Fuel EX 5 29 2017
2017 Mountain
Estimate price |
2,199$
Weight | 14.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Sektor
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm
Suspension Fork
RockShox Sektor Silver RL, Solo Air, TurnKey lockout, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore, Shadow
Front Derailleur
Shimano Deore, high direct mount
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
Race Face Ride, 36/22
Bottom Bracket
PF92
Chain
KMC X10
Wheels
Front Hub
Bontrager alloy, 15mm alloy axle
Rear Hub
Bontrager sealed cartridge bearing alloy axle, Boost148
Rims
Bontrager AT-650 32-hole double-walled alloy
Tires
Bontrager XR3, 29x2.30"
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips
Bontrager Race
Headset
Knock Block Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 691 mm | 726 mm | 743 mm | 758 mm | 784 mm | 817 mm |
| Rake | 51 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm | 638 mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm | 501 mm |
| Top Tube Length | 559 mm | 594 mm | 611 mm | 626 mm | 651 mm | 680 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 741 mm | 736 mm | 731 mm | 741 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EX 5 29 is a Trek Fuel model. Trek launched 277 bikes of this model so far. Take a sneak peek at all Trek Fuel bikes models from 2017, by clicking here.
Model range prices
The most economical model, the Trek Fuel EX Jr 2017 has a starting price of 1889$. Trek Fuel EX 9.9 29 2017 on the other hand is the most expensive at 8399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 2199$. Comparing this to the average Trail bike price, we see that the price is 25.6% lower.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, Fuel EX 5 29 has a weight of 14.65 kg (32.3 lbs). In conclusion, the average Trail bike weighs 12.87% less than Fuel EX 5 29.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Fuel EX 5 29 components
Fork
The fork installed on this bike is the RockShox Sektor model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Fuel EX 5 29 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fuel EX 5 29 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
