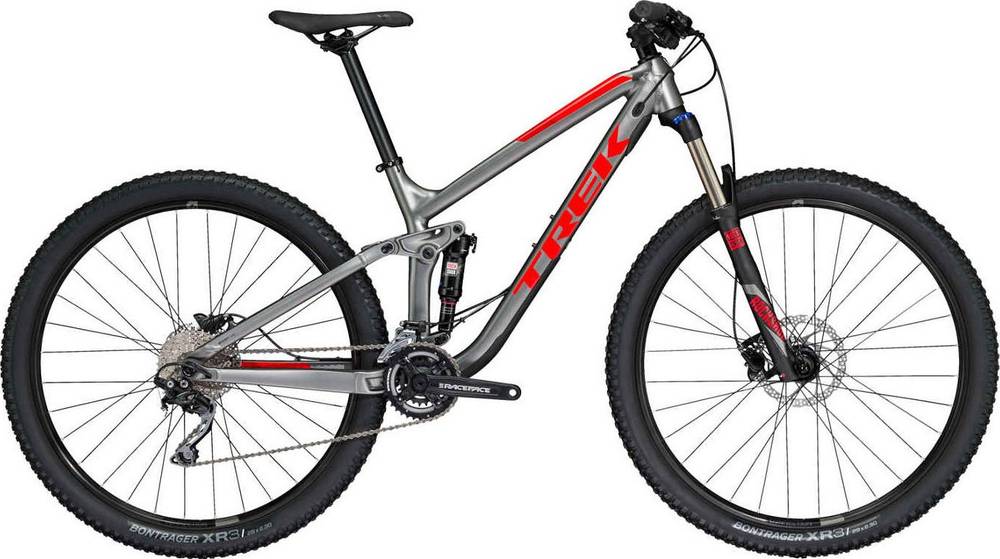

Trek Fuel EX 5 29 2018
2018 Mountain
Estimate price |
2,099$
Weight | 14.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, E2 tapered steerer, Boost110
Rear Shock
RockShox Deluxe RL, 210mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano Deore M6000, Shadow Plus
Front Derailleur
Shimano Deore M6020
Shift Levers
Shimano Deore M6000, 10-speed
Cassette
Shimano HG500, 11-42 tooth, 10-speed
Crank
Race Face Ride
Bottom Bracket
PF92
Chain
KMC X10
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: Formula DC511 alloy, Boost110, Rear: Bontrager sealed bearing, alloy axle, Boost148
Rear Hub
Front: Formula DC511 alloy, Boost110, Rear: Bontrager sealed bearing, alloy axle, Boost148
Rims
Bontrager Connection, 32 hole, double-walled
Tires
Bontrager XR3, 29" x 2.30"
Brakes
Brakes
Shimano M315 hydraulic disc
Brake Levers
Shimano M315 hydraulic
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm clamp, 0° rise, 60mm length
Handlebar
Bontrager alloy, 31.8mm clamp, 15mm rise, 750mm width
Grips
Bontrager Race
Headset
Knock Block Integrated, sealed cartridge bearing
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager alloy, 2-bolt head, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm | 0.127 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm | mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm | 501 mm |
| Top Tube Length | 559 mm | 594 mm | 611 mm | 626 mm | 651 mm | 680 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm | mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 741 mm | 736 mm | 731 mm | 741 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Fuel EX 5 29 is part of the Trek Fuel model. There are 277 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Trek Fuel EX Jr 2018 is the cheapest bike model and costs 1889$. Trek Fuel EX 9.9 29 2018 is the most expensive one and costs 8899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2018 for 2099$. In conclusion, this bike price is 31.59% lower than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Fuel EX 5 29 it’s weighing 14.65 kg (32.3 lbs). At this weight, is considerably heavier than average. In short, the average Trail bike weight is 12.87% lower than this one.
Overview of components
Fork
The Fuel EX 5 29 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Trek Fuel EX 5 29 bike has the RockShox Deluxe RL model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Fuel EX 5 29 2018 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
