Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset Deore, Shimano -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/R1 Trail Tuned Suspension, Hi/Lo chainstays, oversized sealed bearings, 120mm rear wheel travel
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 9 speed
Cassette
SRAM PG950 11-34, 9 speed
Crank
Shimano M442 Octalink 44/32/22
Pedals
Alloy platform w/clips and straps
Wheels
Rims
Shimano M495 disc hubs; Bontrager Ranger rims
Tires
Bontrager Jones XR, 26x2.2/2.25"; 27 tpi
Brakes
Brakes
Shimano M485, hydraulic disc; 180mm front, 160mm rear rotor
Cockpit
Stem
Bontrager Select, 7 degree, 31.8mm
Handlebar
Bontrager Select, 25mm rise, 31.8mm
Headset
Aheadset w/semi-cartridge bearings, sealed
Seat
Saddle
Bontrager Race Basic
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |

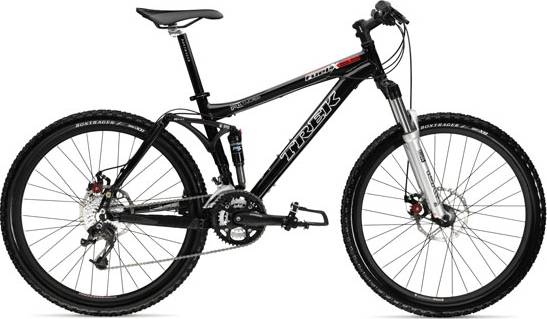

Model Overview
Fuel EX 5.5 completes the Trek Fuel model. There are 277 bikes that carry this model name. Take a sneak peek at all Trek Fuel bikes models from 2008, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Fuel EX 5.5 components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the Fuel EX 5.5 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
