Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset Deore, Shimano -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/Hi/Lo chainstays, oversized bearings, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 9 speed
Cassette
SRAM PG950 11-34, 9 speed
Crank
Shimano M442 Octalink 44/32/22
Pedals
Alloy platform w/clips and straps
Wheels
Rims
Shimano M495 disc hubs; Bontrager Ranger rims w/welded seams and eyelets
Tires
Bontrager Jones XR, 26x2.2/2.25"; 30 tpi
Brakes
Brakes
Shimano M486 hydraulic disc; 180mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")
Cockpit
Stem
Bontrager SSR, 10 degree, 31.8mm
Handlebar
Bontrager Race, 40mm rise, 650mm width
Headset
VP-A76C AHS semi-cartridge
Seat
Saddle
Bontrager Race Basic
Seatpost
Bontrager SSR, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

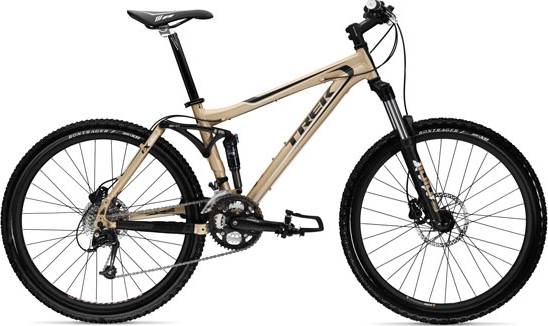

Fuel EX 5.5 is part of the Trek Fuel model. 277 bikes variations carry this model name so far. Take a sneak peek at all Trek Fuel bikes models from 2009, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Fuel EX 5.5 components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Fuel EX 5.5 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
