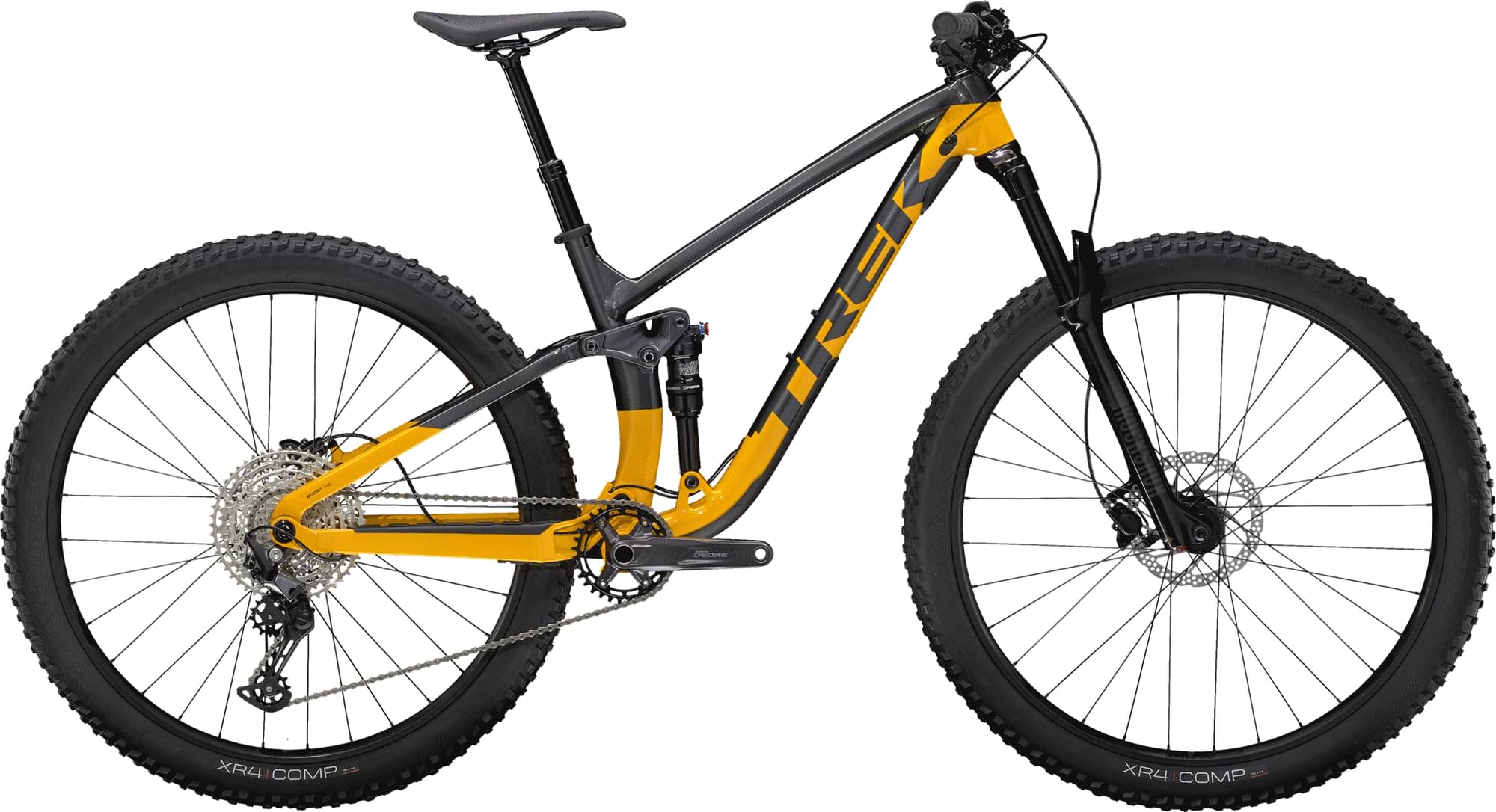

Trek Fuel EX 5 Deore 2022
2022 Mountain
Estimate price |
2,449$
Weight | 15.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum frame
Suspension Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel
Rear Shock
Size: XS, S, X-Fusion Pro 2, 2-position damper, 210mm x 52.5mm; Size: S, M, ML, L, XL, X-Fusion Pro 2, 2-position damper, 210mm x 55mm
Drivetrain
Rear Derailleur
Shimano Deore M6100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed
Crank
Size: XS, S, M, ML, L, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: M, ML, L, XL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Bontrager alloy, 6-bolt, Boost110, 15mm thru axle
Rear Hub
Size: XS, S, M, ML, L, XL, Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle; Size: XS, S, M, ML, L, XL, Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Spokes
14g stainless steel
Tires
Size: XS, S, Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.60''; Size: S, M, ML, L, XL, Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60''
Brakes
Brakes
Shimano hydraulic disc, MT201 lever, MT200 caliper
Disk Rotors
Shimano RT56, 6-bolt, 180mm
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, ML, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.35 mm | 1.37 mm | 1.43 mm | 1.46 mm | 1.35 mm | 1.38 mm | 1.32 mm | 1.34 mm | 1.28 mm | 1.3 mm | 1.24 mm | 1.26 mm |
| Bottom Bracket Height | 341 mm | 335 mm | 341 mm | 335 mm | 346 mm | 340 mm | 346 mm | 340 mm | 346 mm | 340 mm | 346 mm | 340 mm | 346 mm | 340 mm |
| Front Center | 683 mm | 684 mm | 707 mm | 708 mm | 718 mm | 719 mm | 743 mm | 744 mm | 760 mm | 761 mm | 775 mm | 776 mm | 806 mm | 807 mm |
| Rake | 42 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 106 mm | 111 mm | 106 mm | 111 mm | 115 mm | 119 mm | 116 mm | 119 mm | 116 mm | 119 mm | 116 mm | 119 mm | 116 mm | 119 mm |
| Stack | 565 mm | 569 mm | 574 mm | 578 mm | 611 mm | 615 mm | 611 mm | 615 mm | 615 mm | 619 mm | 615 mm | 619 mm | 629 mm | 633 mm |
| Reach | 406 mm | 401 mm | 426 mm | 421 mm | 426 mm | 421 mm | 451 mm | 446 mm | 466 mm | 461 mm | 481 mm | 476 mm | 506 mm | 501 mm |
| Top Tube Length | 551 mm | 552 mm | 573 mm | 574 mm | 583 mm | 584 mm | 608 mm | 609 mm | 624 mm | 625 mm | 639 mm | 640 mm | 668 mm | 669 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 355 mm | 356 mm | 395 mm | 395 mm | 395 mm | 395 mm | 420 mm | 420 mm | 435 mm | 435 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm | 105 mm | 120 mm | 120 mm |
| Chainstay Length | 442 mm | 443 mm | 442 mm | 443 mm | 442 mm | 443 mm | 442 mm | 443 mm | 442 mm | 443 mm | 442 mm | 443 mm | 442 mm | 443 mm |
| Wheelbase | 1125 mm | 1126 mm | 1149 mm | 1150 mm | 1159 mm | 1160 mm | 1184 mm | 1185 mm | 1201 mm | 1202 mm | 1216 mm | 1217 mm | 1247 mm | 1248 mm |
| Bottom Bracket Drop | 14 mm | 21 mm | 14 mm | 21 mm | 28 mm | 34 mm | 28 mm | 34 mm | 28 mm | 34 mm | 27 mm | 34 mm | 27 mm | 34 mm |
| Standover Height | 706 mm | 701 mm | 713 mm | 706 mm | 713 mm | 707 mm | 754 mm | 748 mm | 757 mm | 751 mm | 762 mm | 756 mm | 774 mm | 768 mm |
| Wheels | 27" | 27" | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Fuel EX 5 Deore completes the Trek Fuel model. Trek released 277 bikes variations of this model so far. Take a sneak peek at all Trek Fuel bikes models from 2022, by clicking here.
Model range prices
Trek Fuel EX 5 2022 is the most affordable bike of this model and has a price of 2449$. On the other hand, Trek Fuel EX 9.9 X01 AXS 2022, is the most expensive and costs 9147$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2022, its price was 2449$. Comparing this to the average Trail bike price, we see that the price is 12.78% smaller.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 15.7 kg (34.61 lbs), Trek bike is much heavier than average. To sum up, it’s 20.96% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Size: XS, with a travel distance of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Fuel EX 5 Deore are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 5 Deore is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Trek Fuel EX 5 Deore comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
