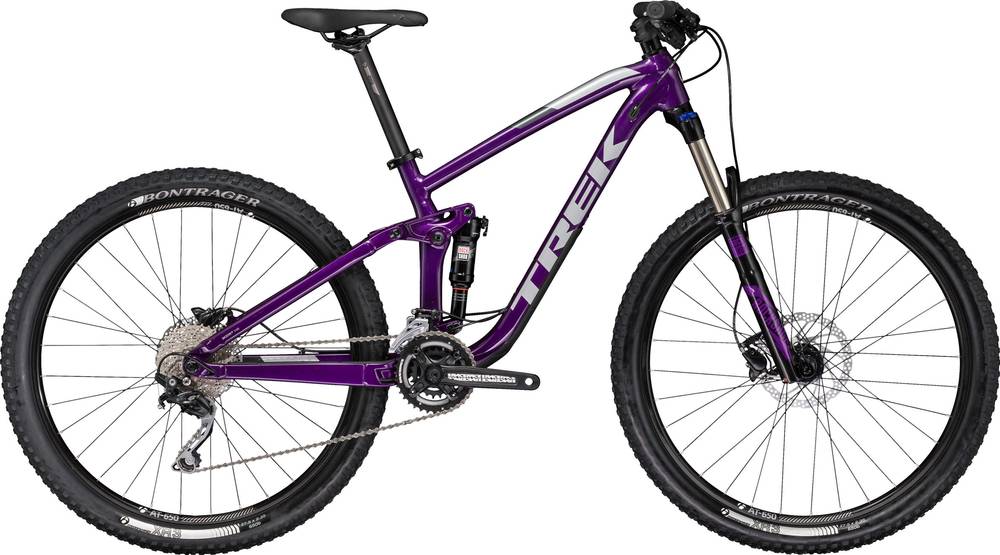

Trek Fuel EX 5 Women’s 2017
2017 Mountain
Estimate price |
2,199$
Weight | 14.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Sektor
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry on 29ers, 130mm travel
Suspension Fork
RockShox Sektor Silver RL, Solo Air, TurnKey lockout, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore, Shadow
Front Derailleur
Shimano Deore, high direct mount
Shift Levers
Shimano Deore, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
Race Face Ride, 36/22
Bottom Bracket
PF92
Chain
KMC X10
Wheels
Front Hub
Bontrager alloy, 15mm alloy axle
Rear Hub
Bontrager sealed cartridge bearing alloy axle, Boost148
Rims
Bontrager AT-650 32-hole double-walled alloy
Tires
Bontrager XR3, 29x2.30" (14 & 15.5: 27.5x2.35")
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips
Bontrager Race
Headset
Knock Block Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Evoke 1.5 WSD
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 15.5" | 17.5" | 18.5" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.39 mm | 1.33 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 337 mm | 337 mm |
| Front Center | 653 mm | 673 mm | 726 mm | 743 mm |
| Rake | 41 mm | 41 mm | 53 mm | 53 mm |
| Trail | 104 mm | 104 mm | 99 mm | 99 mm |
| Stack | 573 mm | 582 mm | 610 mm | 610 mm |
| Reach | 389 mm | 405 mm | 440 mm | 457 mm |
| Top Tube Length | 549 mm | 568 mm | 607 mm | 624 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 440 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 100 mm |
| Chainstay Length | 440 mm | 440 mm | 439 mm | 439 mm |
| Wheelbase | 1093 mm | 1113 mm | 1163 mm | 1180 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 30 mm | 30 mm |
| Standover Height | 764 mm | 780 mm | 754 mm | 749 mm |
| Wheels | 27" | 27" | 29" | 29" |
About this model
Fuel EX 5 Women’s completes the Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Trek Fuel EX Jr 2017 is the cheapest bike model and costs 1889$. Trek Fuel EX 9.9 29 2017 is the most expensive one and costs 8399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2017, its price was 2199$. Doing a quick comparison, we notice that Fuel EX 5 Women’s price is 25.6% smaller than the average cost of a Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 14.45 kg (31.86 lbs), Trek bike is considerably heavier than average. In conclusion, the average Trail bike weighs 11.33% less than Fuel EX 5 Women’s.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The RockShox Sektor is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Fuel EX 5 Women’s bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 5 Women’s comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
