Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/ABP, Full Floater, alloy EVO Link, oversized pivot bearings, replaceable derailleur hanger, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
SRAM PG950 11-34, 9 speed
Crank
Shimano M521 44/32/22
Pedals
Shimano M505, clipless
Wheels
Rims
Bontrager Select front hub, M525-L rear hub; Bontrager Ranger rims
Tires
Bontrager XDX, 26x2.2"
Brakes
Brakes
Shimano 575, hydraulic disc
Cockpit
Stem
Bontrager SSR, 10 degree
Handlebar
Bontrager Race Riser, 40mm rise
Headset
VP-A76, 1-1/8" semi-integrated, sealed
Seat
Saddle
Bontrager Race
Seatpost
Bontrager Race, 31.6mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

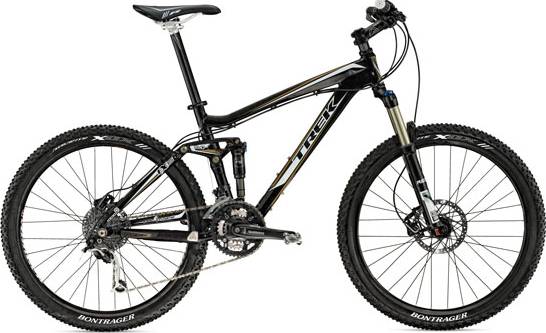

Fuel EX 6 is a Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Fuel EX 6 bike is equipped with the 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 6 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
