Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/Hi/Lo chainstays, oversized bearings, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT "Shadow"
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 9 speed
Cassette
SRAM PG950 11-34, 9 speed
Crank
Shimano M521 Hollowtech, Octalink 44/32/22
Pedals
Shimano M505, clipless
Wheels
Rims
Shimano 525 Custom SL rear hub, Bontrager Sealed front hub; Bontrager Ranger rims w/welded seams and eyelets
Tires
Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 60 tpi
Brakes
Brakes
Avid Juicy 3, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")
Cockpit
Stem
Bontrager SSR, 10 degree, 31.8mm
Handlebar
Bontrager Race, 40mm rise, 650mm width
Headset
VP-A76C AHS semi-cartridge
Seat
Saddle
Bontrager Race Basic
Seatpost
Bontrager Race, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

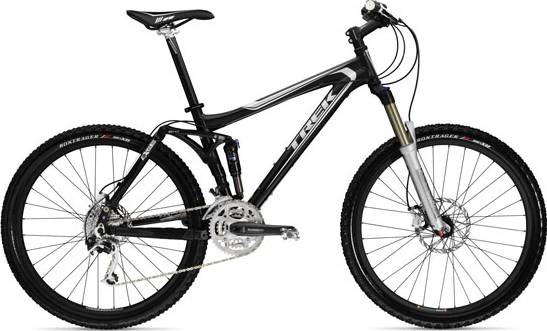

Fuel EX 6.5 is a Trek Fuel model. 277 bikes variations carry this model name so far. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Fuel EX 6.5 2009 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 6.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
