Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/ABP, Full Floater, magnesium EVO Link, oversized bearings, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT "Shadow"
Front Derailleur
Shimano SLX SL
Shift Levers
Shimano SLX SL
Cassette
SRAM PG970 11-32, 9 speed
Crank
Shimano SLX M660 44/32/22
Pedals
CrankBrothers Custom Candy C
Wheels
Rims
Bontrager Rhythm wheel system, 28mm, tubeless ready
Tires
Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 127 tpi
Brakes
Brakes
Avid Juicy 5, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race, 40mm rise, 31.8mm
Headset
VP-A58ACT-TK AHS semi-cartridge
Seat
Saddle
Bontrager Race w/hollow Cro-Moly rails
Seatpost
Bontrager Race, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

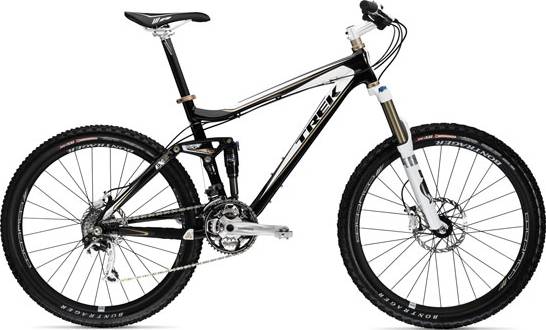

Fuel EX 8 completes the Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Fuel EX 8 components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Trek Fuel EX 8 2009, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
