Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 130mm -
Travel Rear 130mm -
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP Convert, Full Floater, E2 tapered head tube, internal cable routing, Stealth dropper post routing, magnesium EVO Link, ISCG 05 mount, down tube guard, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano SLX, direct mount
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG62 11-36, 10 speed
Crank
Shimano M552, 42/32/24
Wheels
Rims
Bontrager sealed cartridge bearing, 15mm alloy axle front hub; Bontrager sealed cartridge bearing, alloy axle rear hub w/Bontrager Duster Disc 32-hole double-walled Tubeless Ready rims
Tires
Bontrager XR3 Expert, 26x2.20"
Brakes
Brakes
Shimano SLX hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
FSA IS-2, E2, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

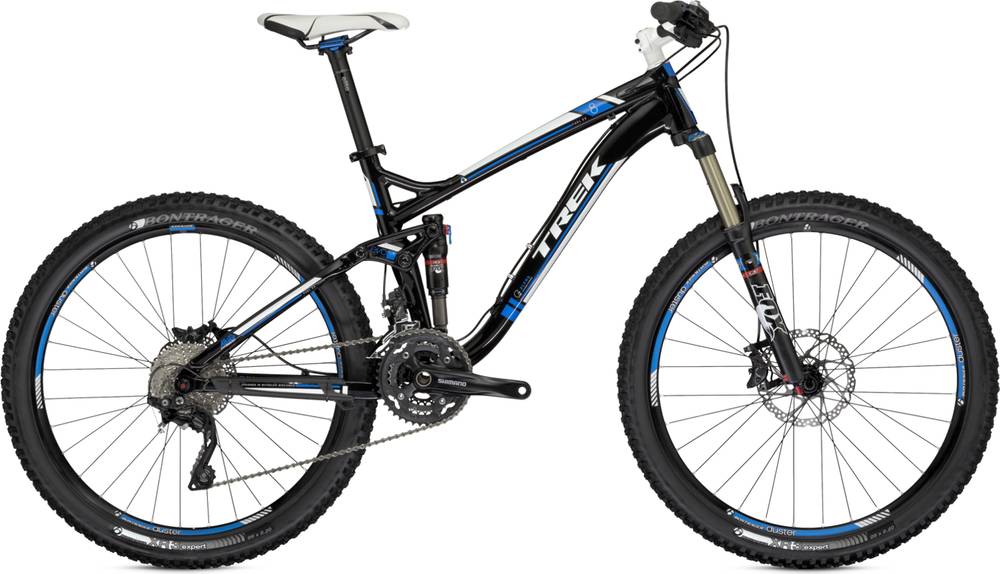

Fuel EX 8 is a Trek Fuel model. There are 277 bikes that carry this model name. You can easily view all of the Trek Fuel bikes models from 2013, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Trek Fuel EX 8 2013, has a 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
