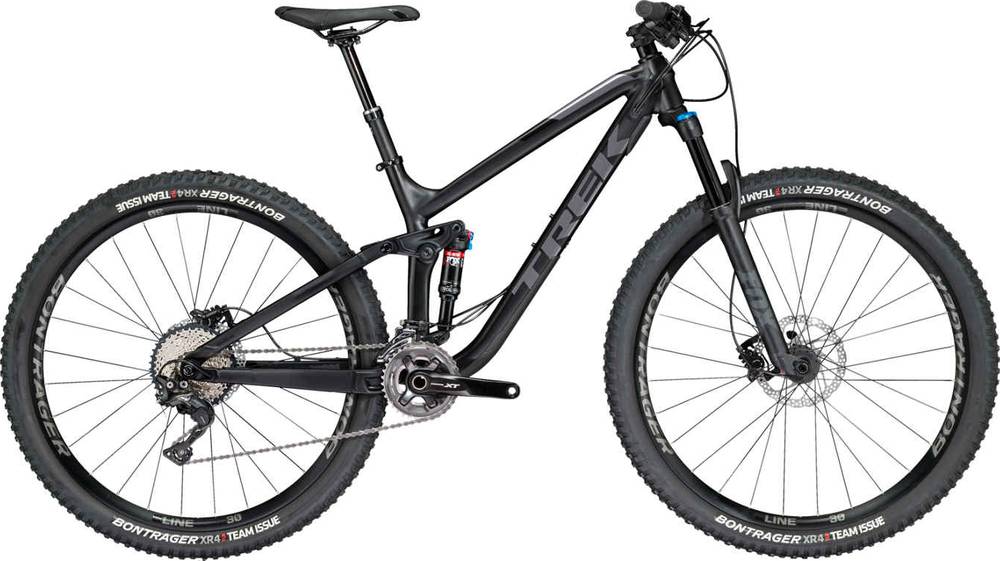

Trek Fuel EX 8 29 XT 2018
2018 Mountain
Estimate price |
3,199$
Weight | 14.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Suspension Fork
Fox Rhythm 34 Float, GRIP adjustable damper, E2 tapered steerer, G2 Geometry w/51mm offset, Boost110, 130mm travel
Rear Shock
FOX Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8000, Shadow Plus
Front Derailleur
Shimano SLX M7020
Shift Levers
Shimano Deore XT M8000, 11 speed
Cassette
Shimano SLX M7000, 11-42, 11 speed
Crank
Shimano Deore XT, 36/26
Bottom Bracket
PF92
Chain
Shimano HG60
Chain Guide
N/A
Pedals
Not included
Wheels
Front Hub
Bontrager Line Comp 30, 54T Rapid Drive, Boost110 front, Boost148 rear
Rear Hub
Bontrager Line Comp 30, 54T Rapid Drive, Boost110 front, Boost148 rear
Rims
Bontrager Line Comp 30, Tubeless Ready, 54T Rapid Drive, Boost110 front, Boost148 rear, tubeless strips included, valves sold separately
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 29x2.40?
Brakes
Brakes
Shimano MT500 hydraulic disc
Brake Levers
Shimano MT500 hydraulic
Cockpit
Stem
Bontrager Line, Knock Block, 35mm clamp, 0 degree, 60mm length
Handlebar
Bontrager Line, 35mm, 15mm rise, 750mm width
Grips
Bontrager Race Lite, lock-on
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Drop Line, internal routing, 31.6mm (15.5: 100mm / 17.5 & 18.5: 125mm / 19.5 & 21.5: 150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 17.5" High | 18.5" High | 19.5" High | 21.5" High | 23" High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 691 mm | 726 mm | 743 mm | 758 mm | 784 mm | 817 mm |
| Rake | 51 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm | 638 mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm | 501 mm |
| Top Tube Length | 537 mm | 572 mm | 589 mm | 604 mm | 630 mm | 665 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 741 mm | 737 mm | 732 mm | 743 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Fuel EX 8 29 XT completes the Trek Fuel model. There are 277 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Trek Fuel EX Jr 2018 has a starting price of 1889$. Trek Fuel EX 9.9 29 2018 on the other hand is the most expensive at 8899$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3199$. In conclusion, this bike price is 15.82% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Fuel EX 8 29 XT it’s weighing 14.2 kg (31.31 lbs). At this weight, is a bit heavier than average. In short, the average Trail bike weight is 9.4% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fuel EX 8 29 XT comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Trek Fuel EX 8 29 XT bike has the FOX Performance Float EVOL model installed, and has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Trek Fuel EX 8 29 XT 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 8 29 XT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Fuel EX 8 29 XT. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
