Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X0, XT -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/ABP, Full Floater, magnesium EVO Link, oversized bearings, 120mm travel
Drivetrain
Rear Derailleur
SRAM X-0
Front Derailleur
Shimano Deore XT
Shift Levers
SRAM X-9, 9 speed w/MatchMaker
Cassette
SRAM PG970 11-32, 9 speed
Crank
Shimano Deore XT 44/32/22
Bottom Bracket
BSA, 73mm, threaded
Pedals
CrankBrothers Custom Candy C
Wheels
Rims
Bontrager Rhythm Elite wheel system, 28mm, tubeless ready
Tires
Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 127 tpi
Brakes
Brakes
Avid Elixir R Custom SL, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")
Cockpit
Stem
Bontrager Race X Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race Lite, 40mm rise, 31.8mm
Headset
VP-A58ACT-TK AHS semi-cartridge
Seat
Saddle
Bontrager Race Lite w/hollow stainless steel rails
Seatpost
Bontrager Race Lite, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

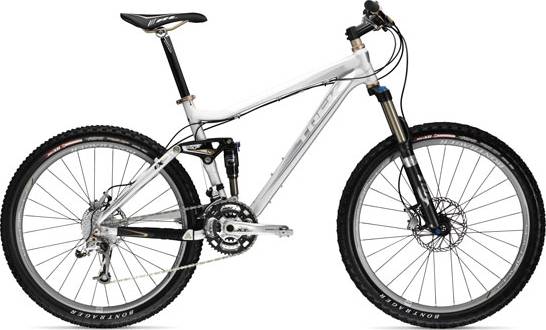

Fuel EX 9 is part of the Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Fuel EX 9 components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Fuel EX 9 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Fuel EX 9 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
