Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP Convert, Full Floater, E2 tapered head tube, press fit BB, internal derailleur & dropper post routing, ISCG 05 mount, magnesium EVO link, down tube guard, 120mm travel
Drivetrain
Rear Derailleur
SRAM X1, Type 2
Shift Levers
SRAM X1, 11 speed
Cassette
SRAM XG-1180, 10-42, 11 speed
Crank
SRAM X1 1400 X-Sync, 32T
Wheels
Rims
Bontrager Rhythm Comp Tubeless Ready w/TLR strips, Stacked Lacing, 142x12 rear, 15mm front
Tires
Bontrager XR3 Expert, Tubeless Ready, aramid bead, 27.5x2.35" front, 27.5x2.20" rear
Brakes
Brakes
Shimano Deore XT hydraulic disc
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Riser, 31.8mm, 15mm rise
Headset
FSA IS-2, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
RockShox Reverb Stealth, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

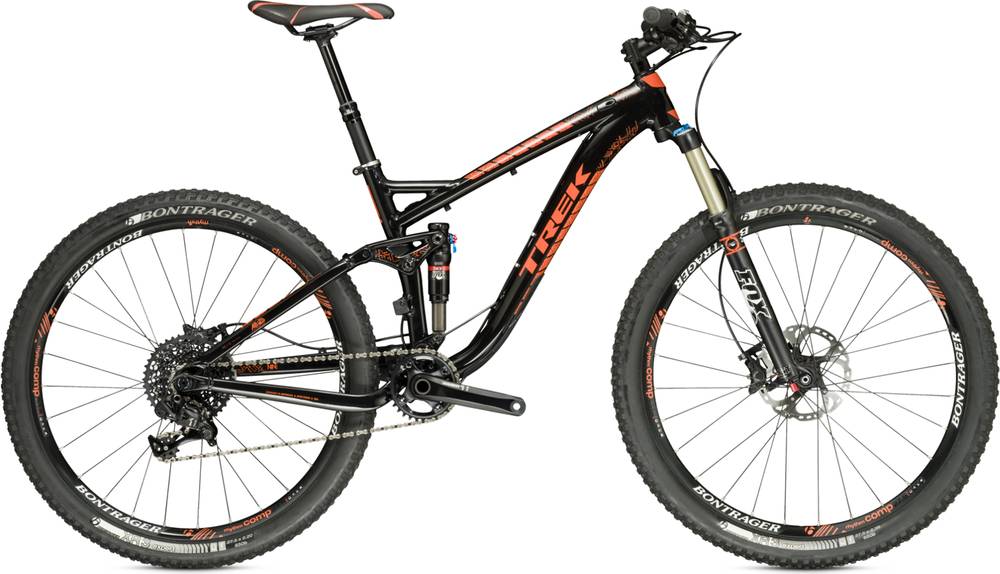

Fuel EX 9 27.5 is part of the Trek Fuel model. Trek launched 277 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Fuel EX 9 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 9 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Trek Fuel EX 9 27.5 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
