Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, internal derailleur & dropper post routing, down tube guard, PF89.5, ISCG 05, 120mm travel
Drivetrain
Rear Derailleur
SRAM X1, Type 2
Shift Levers
SRAM X1, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
SRAM X1, 32T X-Sync
Wheels
Rims
SRAM Roam 30, tubeless strips & valves, 15mm front, 142x12 rear
Tires
Bontrager XR3 Expert, Tubeless Ready, aramid bead, 27.5x2.35" front, 27.5x2.20" rear
Brakes
Brakes
Shimano Deore XT hydraulic disc
Cockpit
Stem
Bontrager Rhythm Comp, 31.8mm, 0 degree
Handlebar
Bontrager Race Lite, 31.8mm, 5mm rise
Headset
FSA IS-2, E2, sealed alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
RockShox Reverb Stealth, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |

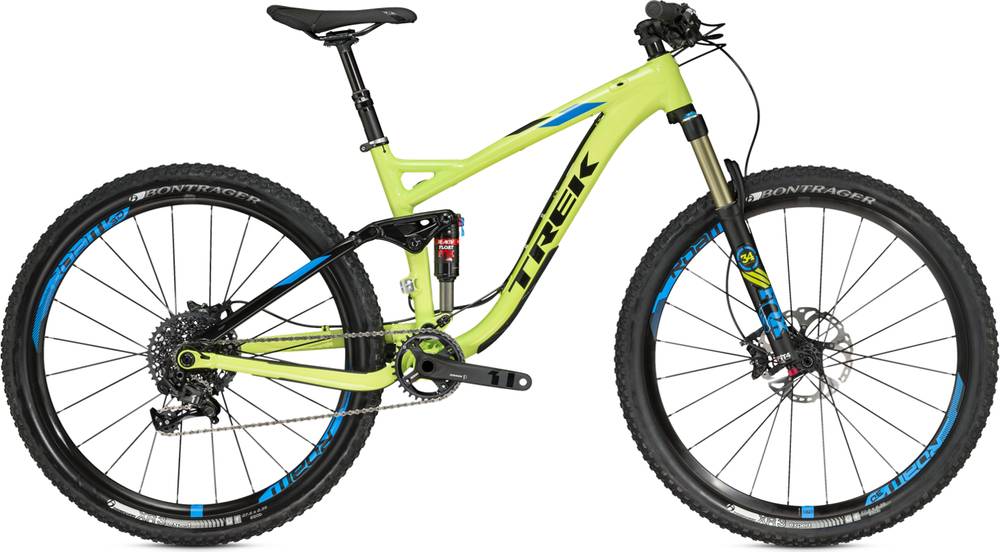

Model Overview
Fuel EX 9 27.5 completes the Trek Fuel model. There are 277 bikes that carry this model name. Take a sneak peek at all Trek Fuel bikes models from 2016, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Fuel EX 9 27.5 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 9 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
Dropper post
Trek Fuel EX 9 27.5 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
