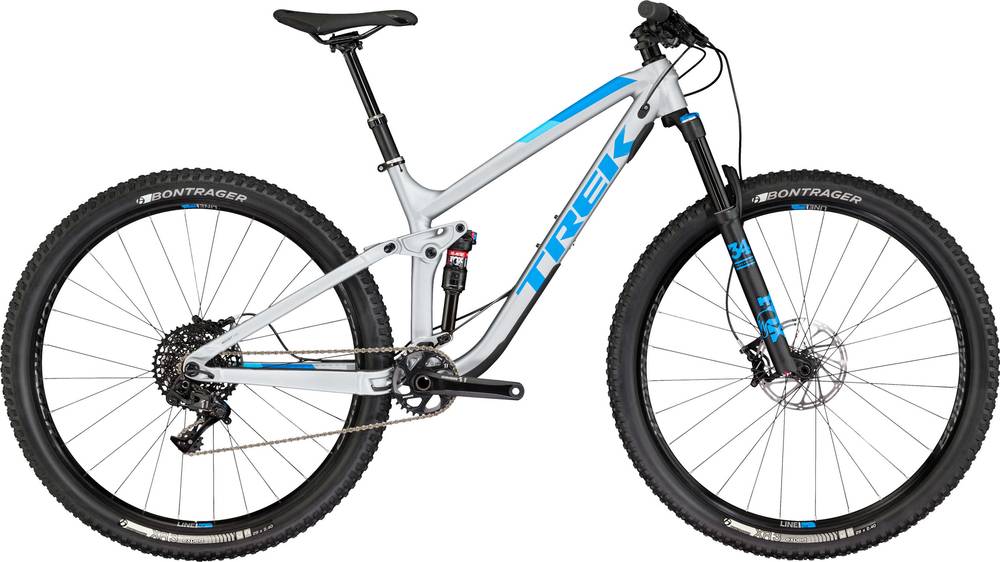

Trek Fuel EX 9 29 2017
2017 Mountain
Estimate price |
3,999$
Weight | 13.47 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm
Suspension Fork
Fox Performance 34 Float, GRIP 3-position damper, E2 tapered steerer, Boost110, G2 Geometry w/51mm offset, 130mm travel
Drivetrain
Rear Derailleur
SRAM X1, Roller Bearing Clutch
Shift Levers
SRAM X1, 11 speed
Cassette
SRAM XG-1150, 10-42, 11 speed
Crank
SRAM X1 1200, 32T Direct Mount X-Sync
Bottom Bracket
PF92
Chain
SRAM PC-1110
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, Boost110 front, Boost148 rear (tubeless strips included, valves sold separately)
Tires
Bontrager XR3 Expert, Tubeless Ready, Inner Strength sidewalls, aramid bead, 29x2.40"
Brakes
Brakes
SRAM Guide RS hydraulic disc
Cockpit
Stem
Bontrager Line, Knock Block, 35mm, 0 degree
Handlebar
Bontrager Line, 35mm, 15mm rise, 750mm width
Grips
Bontrager Race Lite, lock-on
Headset
Knock Block Integrated, cartridge bearing, sealed, 1-1/8" top, 1.5" bottom
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Drop Line 125, under-bar remote lever, 2-bolt head, 31.6mm, zero offset, internal routing
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.4 mm | 1.34 mm | 1.3 mm | 1.26 mm | 1.27 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm | 337 mm |
| Front Center | 691 mm | 726 mm | 743 mm | 758 mm | 784 mm | 817 mm |
| Rake | 51 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 598 mm | 597 mm | 597 mm | 597 mm | 606 mm | 638 mm |
| Reach | 393 mm | 427 mm | 444 mm | 459 mm | 481 mm | 501 mm |
| Top Tube Length | 559 mm | 594 mm | 611 mm | 626 mm | 651 mm | 680 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 394 mm | 419 mm | 440 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 110 mm | 145 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1115 mm | 1150 mm | 1167 mm | 1182 mm | 1208 mm | 1241 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 761 mm | 741 mm | 736 mm | 731 mm | 741 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Fuel EX 9 29 is part of the Trek Fuel model. There are 277 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Trek Fuel EX Jr 2017 is the most affordable bike of this model and has a price of 1889$. On the other hand, Trek Fuel EX 9.9 29 2017, is the most expensive and costs 8399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2017 for 3999$. If we compare this with the average Trail bike cost we notice that the price is 44.79% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Fuel EX 9 29 it’s weighing 13.47 kg (29.7 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail bike weighs 3.78% less than Fuel EX 9 29.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EX 9 29 components
Fork
Trek Fuel EX 9 29 2017 bike is equipped with the Fox Performance Float 34 fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Fuel EX 9 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 9 29 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
