Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X0, XTR -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Black Carbon w/R1i Trail Tuned Suspension, ABP pivot, Full Floater, Magnesium EVO Link, Hi/Lo chainstays, oversized sealed bearings, 120mm rear wheel travel
Drivetrain
Rear Derailleur
SRAM X-0
Front Derailleur
Shimano XTR
Shift Levers
SRAM X-0, 9 speed w/MatchMaker
Cassette
Shimano XTR 11-32, 9 speed
Crank
Shimano XTR 44/32/22
Pedals
n/a
Wheels
Rims
Bontrager Race X Lite
Tires
Bontrager Jones XR, 26x2.2/2.25"; 120 tpi, folding
Brakes
Brakes
Avid Juicy Ultimate, hydraulic disc; 185mm rotors (160 mm rear rotor on 15.5, 17.5, 18.5" sizes)
Cockpit
Stem
Bontrager Race XXX Lite, 12 degree, 31.8mm
Handlebar
Bontrager Race XXX Lite, 40mm rise, 31.8mm
Headset
Cane Creek S-8 w/cartridge bearings, sealed
Seat
Saddle
Bontrager Race X Lite
Seatpost
Bontrager Race X Lite ACC carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

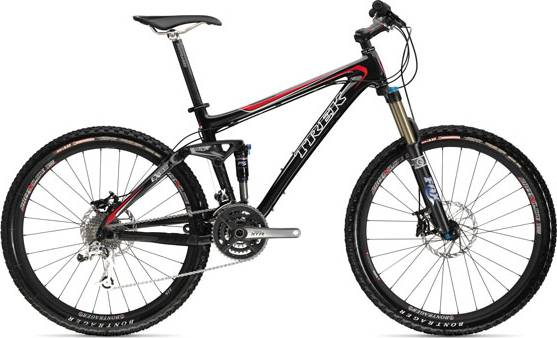

Fuel EX 9.5 is a Trek Fuel model. There are 277 bikes that carry this model name. Check out the entire range from 2008 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Fuel EX 9.5 components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Fuel EX 9.5 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 9.5 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Fuel EX 9.5 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
