Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset X9, X7 -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy stays, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, magnesium EVO Link, oversized pivot bearings, replaceable derailleur hanger, 120mm travel
Drivetrain
Rear Derailleur
SRAM X.9
Front Derailleur
SRAM X.7
Shift Levers
SRAM X.7, 10 speed
Cassette
SRAM PG-1050 12-36, 10 speed
Crank
SRAM Carbon, 44/32/22
Pedals
n/a
Wheels
Rims
DT Swiss M 1800, 32 hole, 15mm front hub, 142x12mm rear hub; tubeless compatible
Tires
Bontrager XR3 Expert, 26x2.2"
Brakes
Brakes
Avid Elixir R hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 25mm rise, 9 degree sweep
Headset
FSA NO.57E, E2, ACB sealed bearings
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

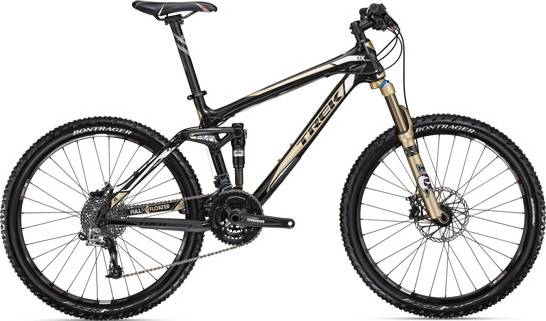

Fuel EX 9.7 is a Trek Fuel model. There are 277 bikes that carry this model name. Take a sneak peek at all Trek Fuel bikes models from 2011, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Fuel EX 9.7 components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Fuel EX 9.7 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
