Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame w/alloy chainstay & seatstay, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, internal front derailleur cable routing, magnesium EVO Link, replaceable derailleur hanger, 120mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT M780 Shadow
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX M660-10, 10 speed
Cassette
Shimano HG62-10 11-36, 10 speed
Crank
Custom Shimano M772, 42/32/24
Pedals
n/a
Wheels
Rims
Bontrager Rhythm Comp TLR Disc wheel system, 15mm front hub, 142x12mm rear hub, 28 hole, Tubeless Ready
Tires
Bontrager XR4 Expert, 26x2.2"
Brakes
Brakes
Shimano SLX M666 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

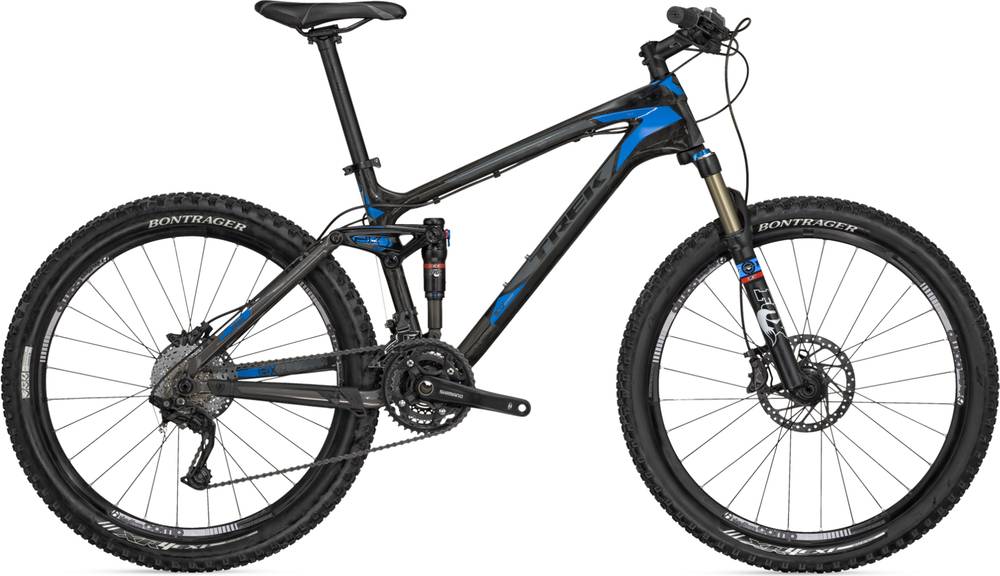

Fuel EX 9.7 completes the Trek Fuel model. Trek released 277 bikes variations of this model so far. You can easily view all of the Trek Fuel bikes models from 2012, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Fuel EX 9.7 components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The Fuel EX 9.7 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Fuel EX 9.7 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Fuel EX 9.7 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
