Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 130mm -
Travel Rear 130mm -
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, alloy seatstay & chainstay, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, internal derailleur cable routing, Stealth dropper post routing, ISCG 05 mount, magnesium EVO Link, 130mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus
Front Derailleur
Shimano SLX, direct mount
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG62 11-36, 10 speed
Crank
Shimano Deore XT, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Wheels
Rims
Bontrager sealed cartridge bearing, 15mm alloy axle front hub; Bontrager sealed cartridge bearing, alloy axle 142x12 rear hub w/Bontrager Duster Disc 32-hole double-walled Tubeless Ready rims
Tires
Bontrager XR3 Expert, 26x2.20"
Brakes
Brakes
Shimano SLX hydraulic disc
Cockpit
Stem
Bontrager Race Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, fully integrated alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

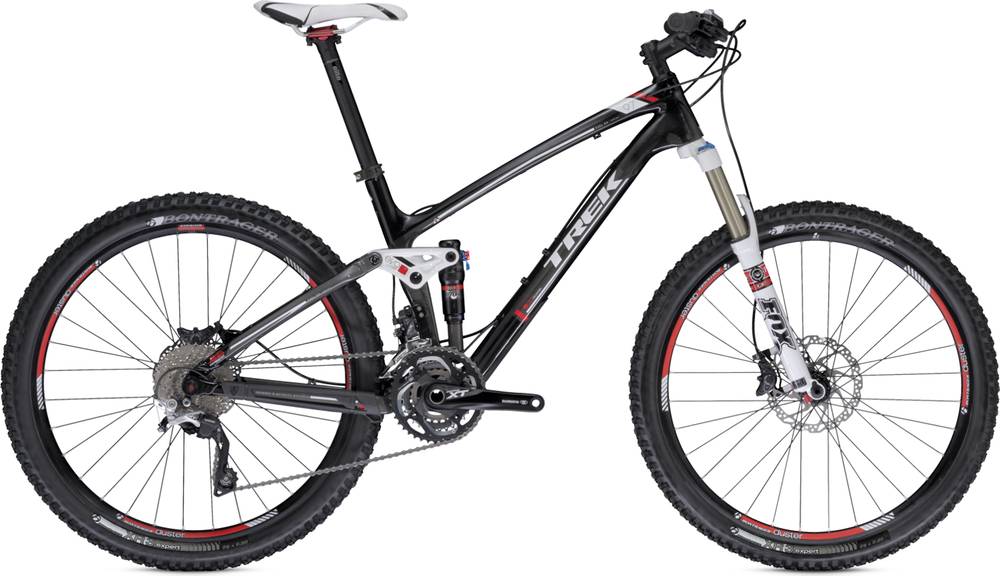

Fuel EX 9.7 completes the Trek Fuel model. 277 bikes variations carry this model name so far. Take a sneak peek at all Trek Fuel bikes models from 2013, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Fuel EX 9.7 components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Fuel EX 9.7 are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fuel EX 9.7 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
